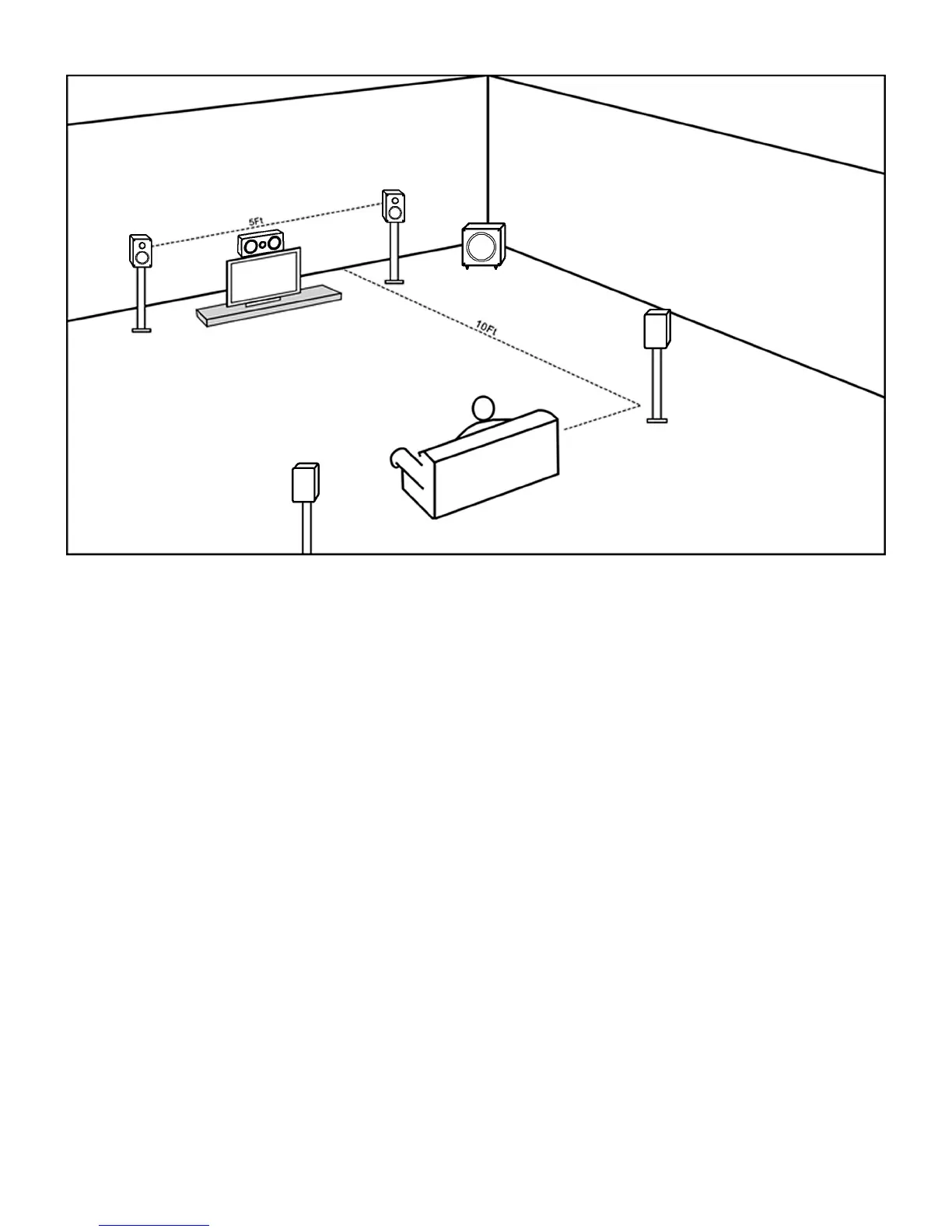

Figure 1
POWERED SUBWOOFER WIRING INSTRUCTIONS
Use a RCA cable to connect the Pro-Linear subwoofer input to your receiver’s subwoofer pre-out. If your receiver does not have a
subwoofer pre-out, use speaker wire to connect it to the subwoofer’s high level input connectors. See figures 2 & 3 on the
following page for instructions.
POWERED SUBWOOFER PLACEMENT
A precisely engineered powered subwoofer is included with this Pro-Linear home theatre speaker system. This powered subwoofer
can be placed virtually anywhere in your listening room without significantly affecting the stereo image of your main speakers.
However, interactions between a subwoofer and a room’s acoustic properties will have some impact on overall bass performance.
Here is a simple experiment to help you find a placement for the subwoofer in your room, which will yield the best bass
performance.
You can start by placing the subwoofer near a corner, which will produce maximum bass output, but may result in a boomy sound.
If so, move the subwoofer away from the corner gradually until you find the location that yields maximum bass output without
boominess.
Although a clear path between the subwoofer and listening position is not required, it is important to leave at least 4 inches (10 cm)
of clearance between the subwoofer and walls or room furnishings.
