4. NCV detection for AC60V~240V 50/60Hz
5. Case Dimensions:140*70*35mm(LxWxH)
6. Weight:128g (without battery)
7. Battery: 9V battery (6F22).

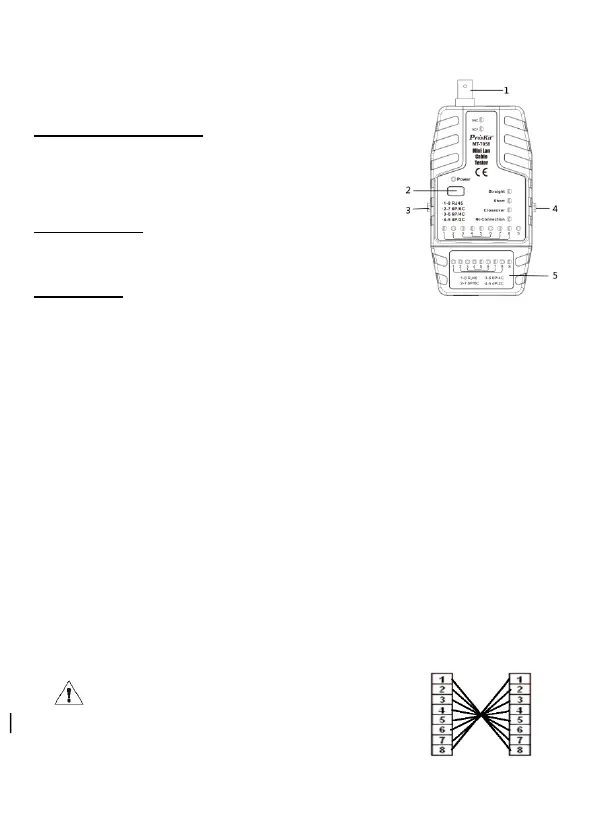

PRODUCT DESCRIPTION
1. BNC connector & Non-contact voltage inductive probe.
2. Test push button
3. Power/sound on/off switch
4. Auto/manual /NCV switch
5. Remote unit.
ACCESSORIES
1. BNC-RJ45 adapter
2. Instruction Manual
3. Pouch Bag
OPERATION
1. The MAIN and REMOTE unit:
The Mini LAN Cable Tester consists of a main unit and a remote unit. The remote
unit stores conveniently on the bottom of the main unit. It can be removed or
replaced by sliding it from left to right or right to left respectively.
2. Performing the test:
RJ45 cable test: Please insert the cable into the socket of the main unit and a
remote unit. The left side switch is Sound on or Sound off, and the right side switch
is Auto. Press the test button to test. The results are displayed by LED and beeper.
3. Interpreting the results:
3.1 Power LED:
The power LED should lights up whenever the test button is pressed and
released. If the power LED turns red, replace the battery.
3.2 Straight LED
The Straight led and the 1-8 numbered LEDs light up with the beeper sounds
for 3 times means the cable is all correct connection. If some of the numbered
LEDs do not light up, but others light up, and the straight LED also lights up, it
means the cable is open.
Note:
RJ-11/12 cables may have 2 conductors, 4 conductors, or 6 conductors. When
testing 2 conductor cables, LED 4 ~ 5 must light up, for 4 conductor cables, LED 3~
6 must light up and for 6 conductor cables, LED 2~7 must light up, and “STRAIGHT”
LED also lights up. The numbered LEDs do not indicate a good connection exists;
only shows connection exists.
If RJ45 or RJ11/12 all wires are wrong order that
Straight LED will light 1 to 8, 2 to 7 and so on.
