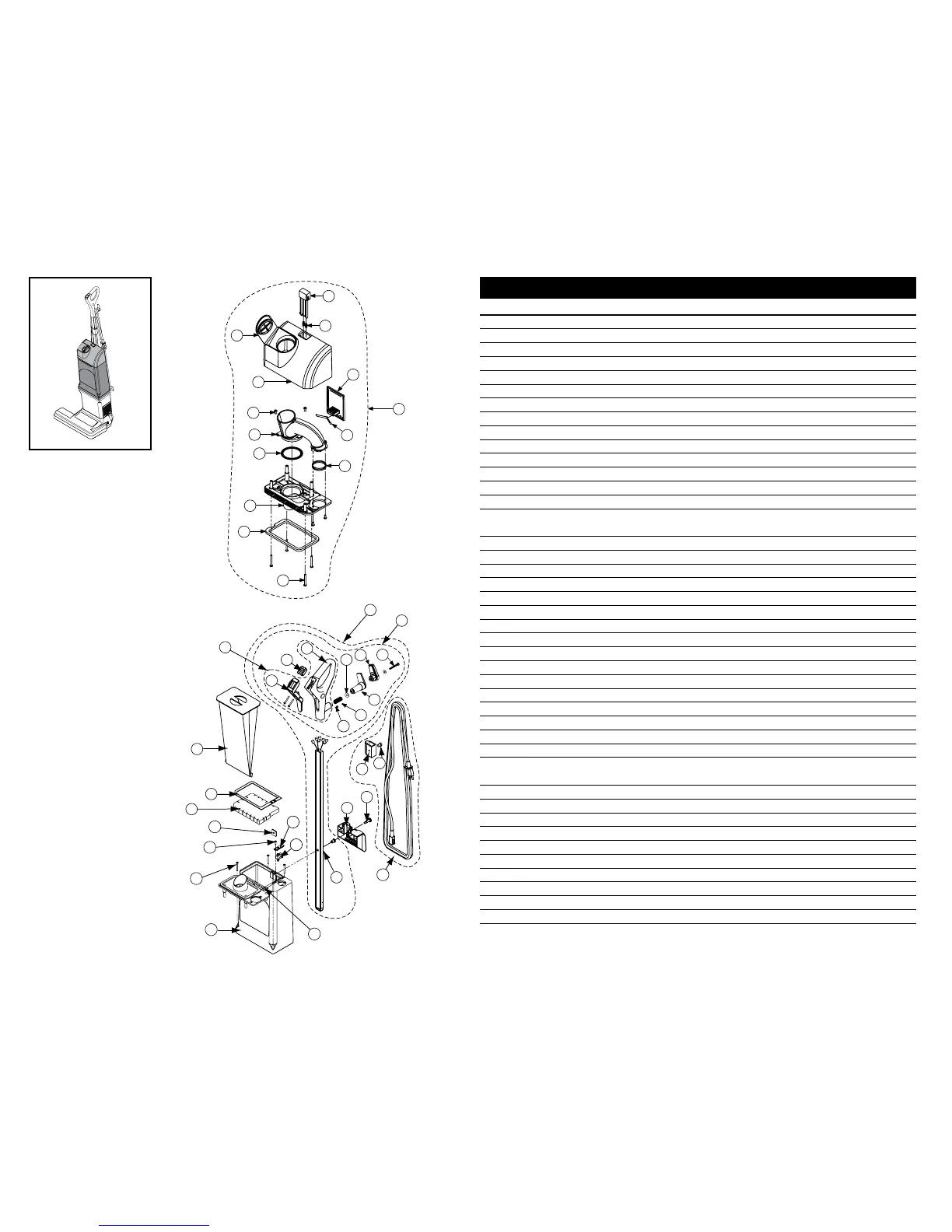

PROCARE 15 ASSEMBLY
No. Product Name
1 104569 Cover, Bag Housing, Grey
2 104570 Plate, Bag Cover Nozzle
3 104571 Duct, Crossover, Bag Cover
4 104574 Plug, Access Port
5 104575 Seal, Crossover Duct/Bag Cover Nozzle Plate, Lower
6 104576 Seal, Crossover Duct, Inlet
7 104232 Latch, Release, Bag Cover
8 104243 Flex Plate, Bag Cover Latch
9 104241 Seal, Gasket, Bag Cover
10 104233 Spring, Release Button, F/Bag Cover Latch
11 104242 Spring, Bag Cover Latch
12 104577 Screw, Phillips, 4.2mm x 9.5mm (set of 4)
13 104493 Screw, Phillips, 4mm x 35mm (set of 4)
14 105491 Filter Cover Kit, w/Riveted Hinge and 6 Rivets (includes: #1-13)
15 104989 Bag Housing Assembly, Grey, w/Riveted Hinge and Decal
Includes Bag Cover Nozzle Plate
16 104491 Rivet F/Bag Housing Assembly
17 104255 Handle w/Over Mold and Decal
18 105034 Cord, Power, w/Strain Relief Clasp, 38' Black (includes: #34, 40)
19 103483 Intercept Micro Filter
20 104281 Filter, Double Layer, Motor Intake
21 104738 Seal, Gasket, Bag Housing
22 104283 Switch, Filter, Lock-Out
23 104282 Cover, Switch, Filter Lock-out
24 105075 Screw, Phillips, 2.9mm x 13mm, F/Switch Cover
25 104509 Screw, Phillips, F/Handle Assembly 4mm x 10mm x .07 Pitch
26 104268 Bracket, Cord Wrap
27 104269 Spring, Compression, Cord Wrap Bracket
28 104270 Washer, Compression Spring, Cord Wrap Bracket
29 104271 Screw, Cord Wrap, 4mm x 38mm Phillips Round Head
30 105090 Handle Bezel w/Screws (old style)
31 104741 Handle, Carry
32 106615 Handle, Tube Assembly Complete
(includes: #17, 25, 26, 27, 28, 29, 30, 37, 38, 42)
33 104259 Plate, Handle Nut
34 105091 Clasp, Strain Relief, Yellow
35 104493 Screw, Phillips, 4mm x 35mm (set of 4)
36 104266 Screw, Handle Assembly
37 105147 Switch, Rocker, On/Off
38 104264 Bushing, Handle Tube
39 106614 Handle Kit (includes: #17, 25, 26, 27, 28, 29, 30, 37, 42)
40 105320 Fastener
41 107073 Handle Bezel Assembly (includes: #17, 30)
42 107093 Impact Bumper
