Pro-Team PROCARE 15 - Page 14

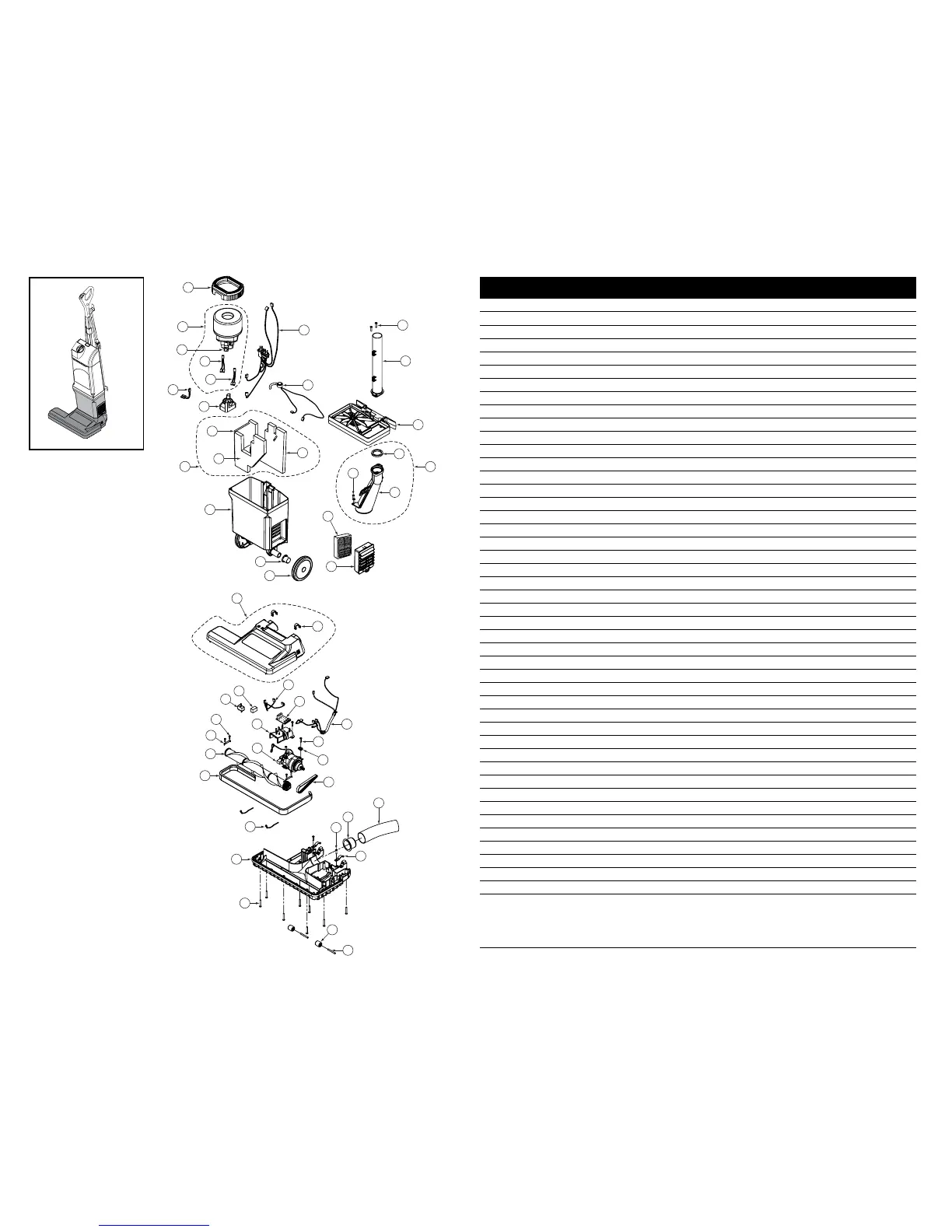

PROCARE 15 ASSEMBLY
No. Product Name
1 104306 Wheel, Rear (set of 2)
2 104250 Air Duct Assembly
3 104957 Motor Assembly Kit w/Jumpers (includes: C, D)
4 104504 Bearing, Pivot
5 103532 Foam, Sound, Motor Housing Front Panel
6 104782 Motor Housing, Blue
7 103533 Foam, Sound, Motor Housing Left Panel
8 103531 Foam, Sound, Motor Housing Rear Panel
9 104245 Bulkhead, Dark Grey
10 104253 Seal, Lower Air Duct , Nitrile
11 104249 Motor Mount, Upper Nitrile
12 104247 Motor Mount, Lower Nitrile
13 105136 Filter, Exhaust, HEPA Media
14 104785 Cover, Filter Cartridge, Blue
15 104578 Air Duct, Upper
16 104209 Screw, Phillips, 4mm x 12mm, F/Upper Air Duct (set of 2)
17 104267 Screw, Phillips, 4mm x 12mm, F/Lower Air Duct (set of 2)
18 105488 Motor Housing Sound Filter Kit, (includes: #5, 7, 8)
19 105489 Air Duct Kit (includes: #2, 10, 17)
20 104789 Power Nozzle Cover w/Detent Springs & Decals
21 104784 Block, Foam
22 104212 Circuit Breaker
23 104496 Screw, Phillips, 3.5mm x 13mm, F/Brush Retainer (set of 4)
24 104499 Retainer, Brush Roll
25 104216 Brush Roll, Power Nozzle, 14"
26 104218 Bumper, Power Nozzle, Vinyl
27 104500 Brace, Formed Wire, F/Power Nozzle Base
28 104221 Baseplate, Power Nozzle
29 104497 Screw, Phillips, 4mm x 35mm F/Base Cover (set of 8)
30 104501 Roller, Front
31 104502 Shaft, Front Roller Axle
32 104503 Clamp, Rear Wheel
33 104495 Screw, Phillips, 4mm x 19mm F/Powerhead (set of 3)
34 104227 Sleeve, Hose, Air Duct
35 104230 Hose, Power Nozzle to Air Duct, Lower
36 104217 Belt, Drive, F/Brush Roll
37 104506 Motor, Power Nozzle with Crimps
38 104498 Grommet, Vibration, Power Nozzle Motor, Nitrile
39 104224 Cover, Air Duct, Power Nozzle
40 104226 Board, Vacuum Operation Indicator
41 104507 Spring, Detent, Upright Lock
42 105371 Screw, Phillips, 4mm x 19mm, F/Power Nozzle Motor (set of 2)
43 105281 Carbon Brush Set for Motor
44 105760 Thermal Protector
105757 Wire Harness Kit includes:
A. Sensor, Bag, Full Indicator D. Harness, Jumper, Red
B. Harness, Wire, Main Power Supply E. Harness, Wire, Power Nozzle
C. Harness, Jumper, White F. Harness, Power Nozzle Switch
9
15
16
19
41
10
2
8
17
B
A
3
7
5
C
D
11
43
44
12
18
6
4
1
14
13
20
26
27
25
42
E
36
32
31
30
40
F
38
28
29
24
39
37
22
23
21
35
34
33
12
