Pro-Team ProCare15XP - Page 14

12

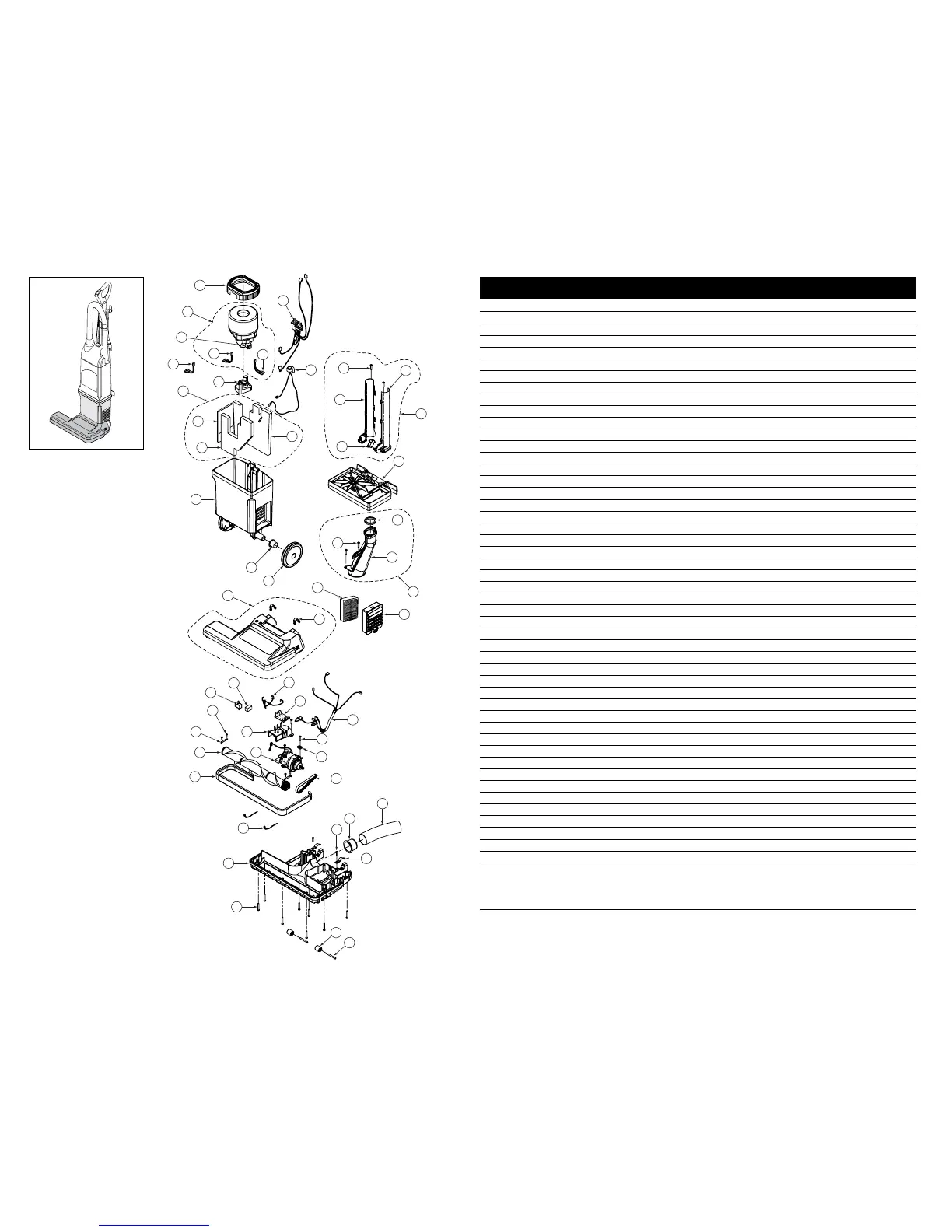

PROCARE 15XP ASSEMBLY
D. Harness, Main Power Supply
E. Harness, Wire, Power Nozzle
F. Harness, Power Nozzle Switch
No. Product Name
1 104209 Screw, Phillips, 4mm x 12mm F/Wand Guide (set of 2)
2 104261 Guide, Wand, Upper Left
3 104260 Guide, Wand, Upper Right
4 104263 Switch, Wand Lockout
5 104245 Bulkhead, Dark Grey
6 104253 Seal, Lower Air Duct , Nitrile
7 104267 Screw, Phillips, 4mm x 12mm F/Lower Air Duct (set of 2)
8 104250 Air Duct
9 104782 Motor Housing, Blue
10 104504 Bearing, Pivot
11 104306 Wheel, Rear
12 105136 Filter, Exhaust, HEPA Media
13 104785 Cover, Filter Cartridge, Blue
14 103532 Foam, Sound, Motor Housing, Front Panel
15 103533 Foam, Sound, Motor Housing, Left Panel
16 103531 Foam, Sound, Motor Housing, Rear Panel
17 104247 Motor Mount, Lower Nitrile
18 104249 Motor Mount, Upper Nitrile
19 104957 Motor Assembly w/Jumpers (includes: A, B)
20 105488 Motor Housing Sound Filter (includes: #14,15,16)
21 105490 Wand Kit (includes: #1, 2, 3, 4)
22 105489 Air Duct Kit (includes: #6, 7, 8)
23 104789 Power Nozzle Cover w/Detent Springs & Decal
24 104784 Block, Foam, F/Park Switch
25 104212 Circuit Breaker
26 104496 Screw, Phillips, 2.9mm x 35mm, F/Brush Retainer
27 104499 Retainer, Brush Roll
28 104216 Brush Roll, Power Nozzle, 14"
29 104218 Bumper, Power Nozzle, Vinyl
30 104500 Brace, Formed Wire, F/Power Nozzle Base
31 104221 Baseplate, Power Nozzle
32 104497 Screw, Phillips, 4mm x 35mm F/Base Cover
33 104501 Roller, Front
34 104502 Shaft, Front Roller Axle
35 104503 Clamp, Rear Wheel
36 104495 Screw, Phillips, 4mm x 19mm F/Powerhead
37 104227 Sleeve, Hose, Air Duct
38 104230 Hose, Power Nozzle to Air Duct, Lower
39 104217 Belt, Drive, F/Brush Roll
40 104506 Motor, Power Nozzle with Crimps
41 104498 Grommet, Vibration, Power Nozzle Motor, Nitrile
42 104224 Cover, Air Duct, Power Nozzle
43 104226 Board, Vacuum Operation Indicator
44 104507 Spring, Detent, Upright Lock
45 105371 Screw, Phillips, 4.2mm x 19mm, F/Power Nozzle Motor
46 105281 Carbon Brush Set for ProCare Motor
47 105760 Thermal Protector
105756 Wire Harness Kit includes:
A. Harness, Jumper, Red
B. Harness, Jumper, White
C. Sensor, Bag Full Indicator
1
15
14
9
10
11
7
17
18
19
20
47
46
2
21
6
16
13
39
35
28
29
30
31
32
42
40
45
E
F
43
44
C
A
B
D
3
4
5
8
12
23
22
25
27
24
26
41
38
37
36
33
34
