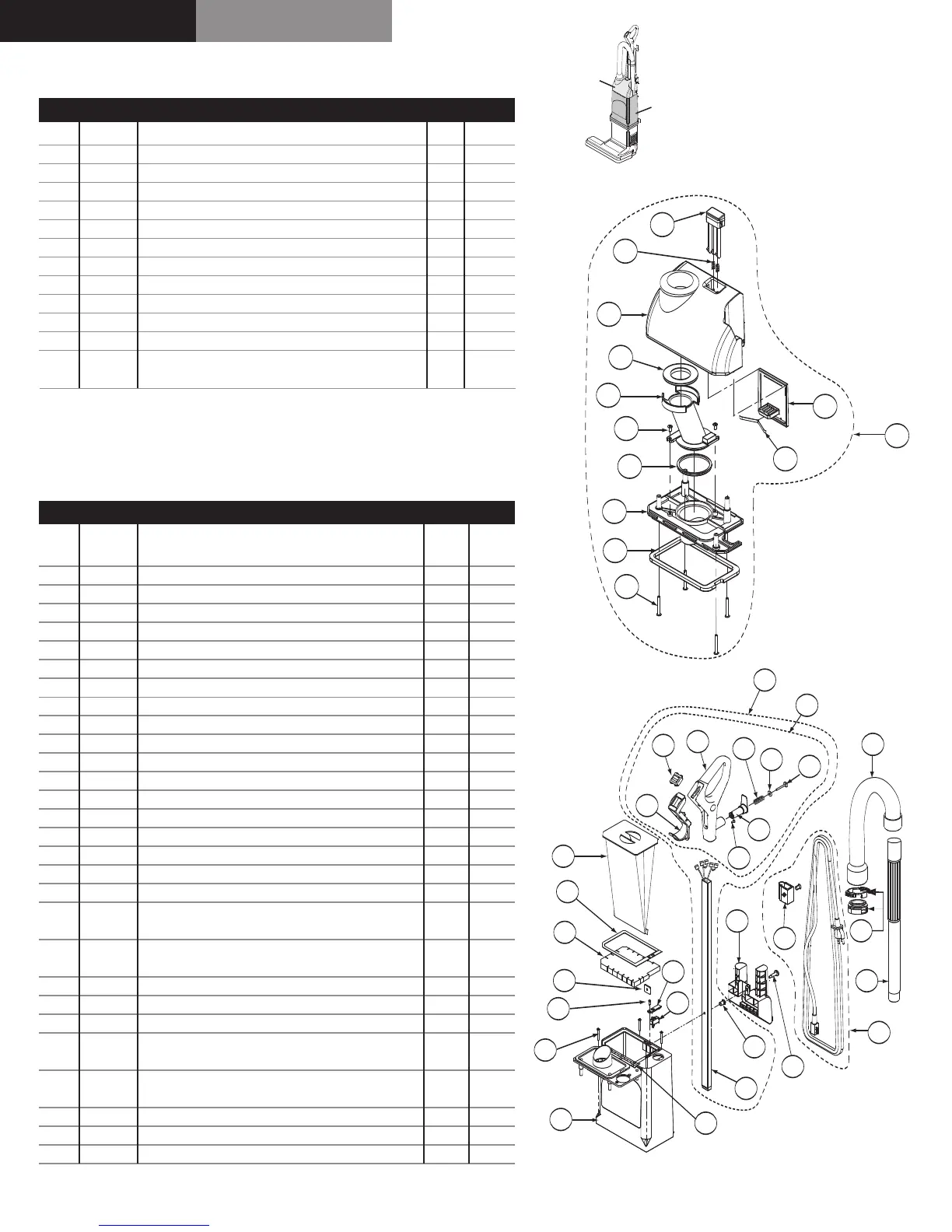

1500XP parts list
filter
housing
filter
cover
filter cover
filter housing / handle
2
2
w
w
w
w
w
w
.
.
p
p
r
r
o
o
-
-
t
t
e
e
a
a
m
m
.
.
c
c
o
o
m
m
ITEM PART# DESCRIPTION QTY LIST
1 104234 Cover, Bag Housing, Grey F/XP 1 ea. $15.00
2 104232 Latch, Release, Bag Cover 1 ea. 4.00
3 104233 Spring, Release Button, F/Bag Cover Latch 2/pk 2.00
4 104235
Seal, Transition Duct/Bag Cover, Upper 1 ea. 3.00
5 104236 Duct, Transition, Bag Cover, F/XP 1 ea. 6.00
6 104238 Seal, Transition Duct/Bag Cover Nozzle Plate, Lower 1 ea. 2.00
7 104239
Plate, Bag Cover Nozzle, F/XP 1 ea. 4.68
8 104242 Spring, Bag Cover Latch 1 ea. 3.00
9 104243 Plate, Bag Cover Latch 1 ea. 2.20
10 104505 Screw, Phillips, 4.2mm x 9.5mm 2/pk 2.00
11 104241 Gasket, Bag Cover 1 ea. 2.20
12 104493 Screw, Phillips, 4.2mm x 38mm 4/pk 3.00
13 105486 Filter Cover Kit w/Riveted Hinge and
6 Rivets (includes: #1–12) 1 kit
39.60
ITEM PART# DESCRIPTION QTY LIST
14 104490 Bag Housing Assembly, Grey w/Riveted Hinge &
Decal Includes Bag Cover Nozzle Plate 1 ea. $36.00
15 104491 Rivet F/Bag Housing Assembly 6/pk 3.00
16 104255 Handle w/Over Mold and Decal 1 ea. 20.00
17 104284 Cord, Power, w/Strain Relief, 50' Yellow 1 ea. 30.80
18 103483 Disposable Intercept Micro Filter 10/pk 9.99
19 105088 Handle Bezel w/Screws 1 ea. 7.15
20 104738 Seal, Gasket, Bag Housing 1 ea. 2.20
21 104283 Switch, Filter, Lock-Out 1 ea. 9.35
22 104281 Filter, Double Layer Motor Intake 1 ea. 2.20
23 104282 Cover, Switch, Filter Lock-out 1 ea. 2.20
24 104268 Bracket, Cord Wrap 1 ea. 4.00
25 104269 Spring, Compression, Cord Wrap Bracket 1 ea. 2.20
26 104270 Washer, Compression Spring, Cord Wrap Bracket 1 ea. 1.00
27
105147
Switch, Rocker
, On/Off
1 ea.
12.00
28 104264 Bushing, Handle Tube 1 ea. 1.10
29
104259
Plate, Handle Nut
1 ea.
1.10
30
104265
Handle, Carr
y w/T
ool Caddy
, F/XP
1 ea.
5.00
31 104294 Wand, F/XP 1 ea. 13.20
32
105091
Clasp, Strain Relief, Y
ellow 1 ea.
5.00
33
104271
Screw
, Cord W
rap, 4mm x 38mm,
Phillips Round Head 1 ea.
2.00
34
104509
Screw
, Phillips, M4 x 10mm x .07 Pitch,
F/Handle Assembly
1 ea.
2.00
35 105075 Screw, Phillips, 2.9mm x 13mm, F/Switch Cover 1 ea. 3.00
36
104266
Screw
, Handle Assembly 1 ea.
1.10
37
104493
Screw
, Phillips, 4.2mm x 38mm
4/pk
3.00
38 104958 Handle, Tube w/Wire Harness,
Rivet Nut and Plug Rivet 1 ea. 24.20
39
104959
Handle, T
ube Assembly Complete, F/XP
(includes: #16,19,24,25,26,27,28,33,34,38) 1 ea. 54.45
40 104961 Hose, Assembly w/Cuffs, F/XP (includes: #42) 1 ea. 38.50
41
105502
Handle Kit (includes: #16,19,24,25,26,27,33,34)
1 kit
36.00
42 105573 Quick Release Hose Cuff 1 ea. 6.00
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
17
42
