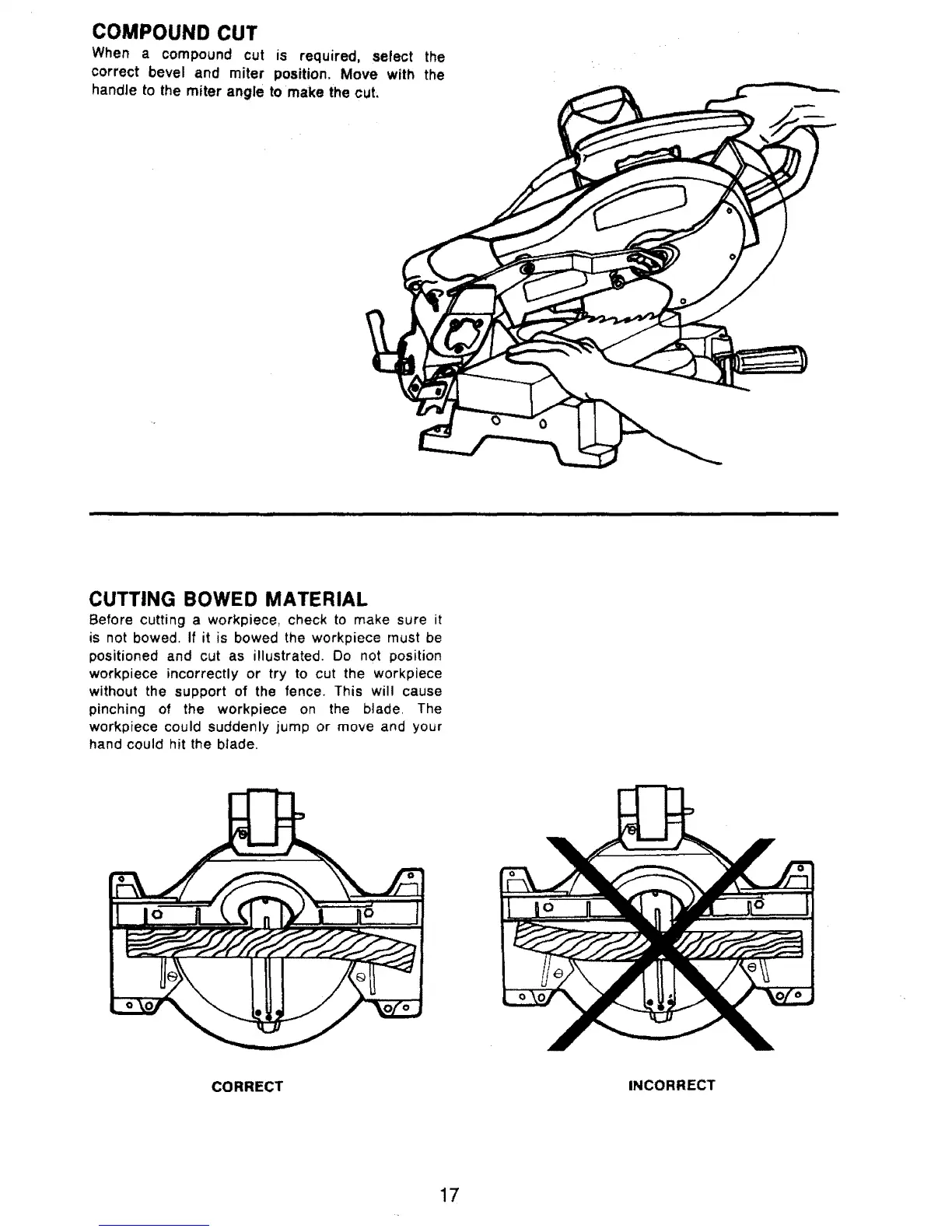

COMPOUND CUT
When a compound cut is required, select the
correct bevel and miter position. Move with the
handle to the miter angle to make the cut:
CUTTING BOWED MATERIAL
Before cutting a workpiece, check to make sure it
is not bowed. If it is bowed the workpiece must be
positioned and cut as illustrated. Do not position
workpiece incorrectly or try to cut the workpiece
without the support of the fence. This will cause
pinching of the workpiece on the blade. The
workpiece could suddenly jump or move and your
hand could hit the blade.
CORRECT
INCORRECT
17
