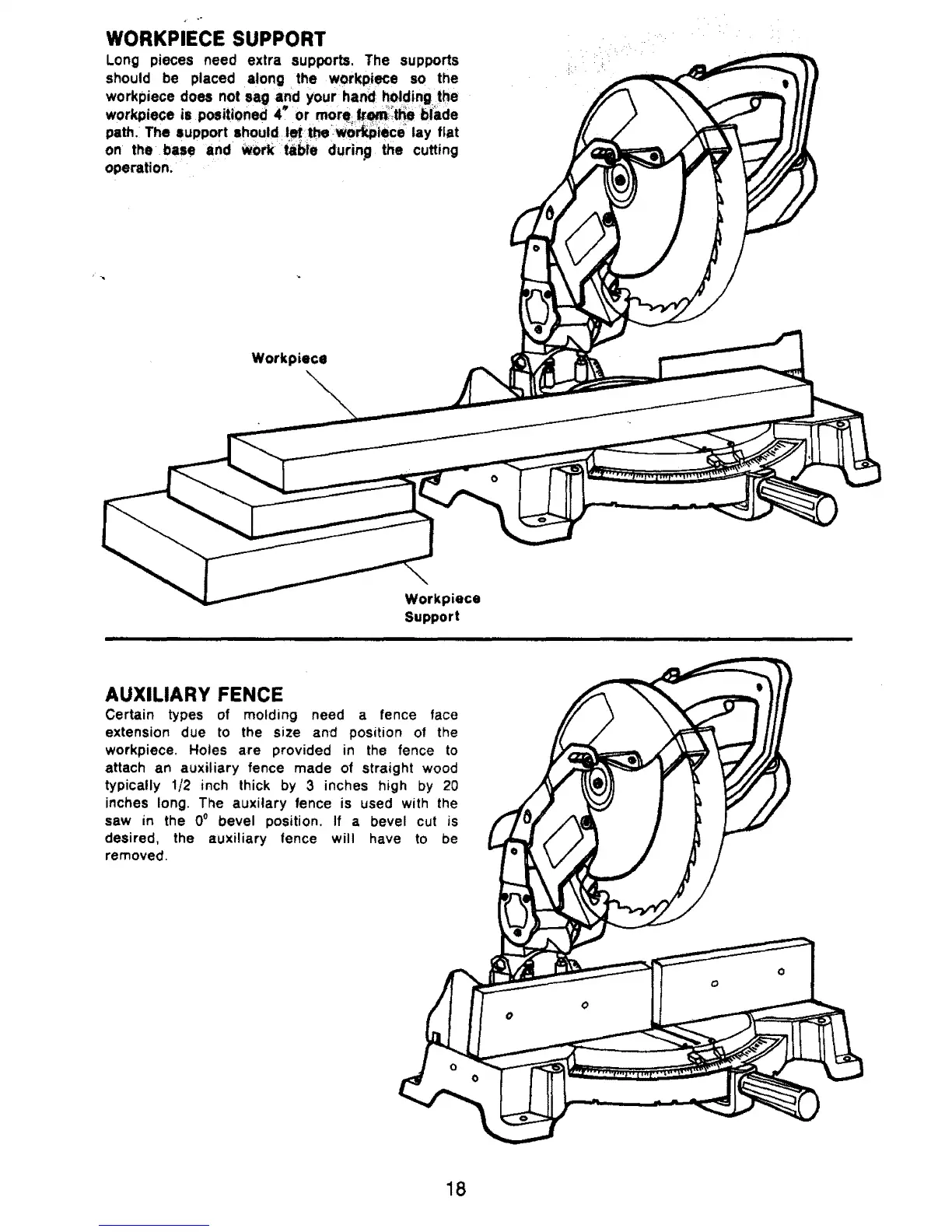

WORKPIECE SUPPORT
Long pieces need extra supports. The supports
should be placed along the workpiece so the
workpiece does not sag and your hand holding the
workp=ece is positioned 4 or mor_ _mit_ blade
path.i The support should I_thewo_iece _lay flat
on the base and work t&bie durin_g the cutting
operation;
Workpiece
Workpiece
Support
AUXILIARY FENCE
Certain types of molding need a fence face
extension due to the size and position of the
workpiece. Holes are provided in the fence to
attach an auxiliary fence made of straight wood
typically 1/2 inch thick by 3 inches high by 20
inches long. The auxitary fence is used with the
saw in the 0° bevel position. If a bevel cut is
desired, the auxiliary fence will have to be
removed.
o
O
18
