Probotix COMET - Page 23

B
A
C
D
B
B
B
C
D
COMET
ASTEROID
METEOR
NEBULA
A
4x Legs (6060)
692
692
692
692
B
Front/Back (3060)
704
987
704
987
C
Top Sides (3060)
832
832
1528
1528
D
Bottom Sides (3060)
718
718
1414
1414

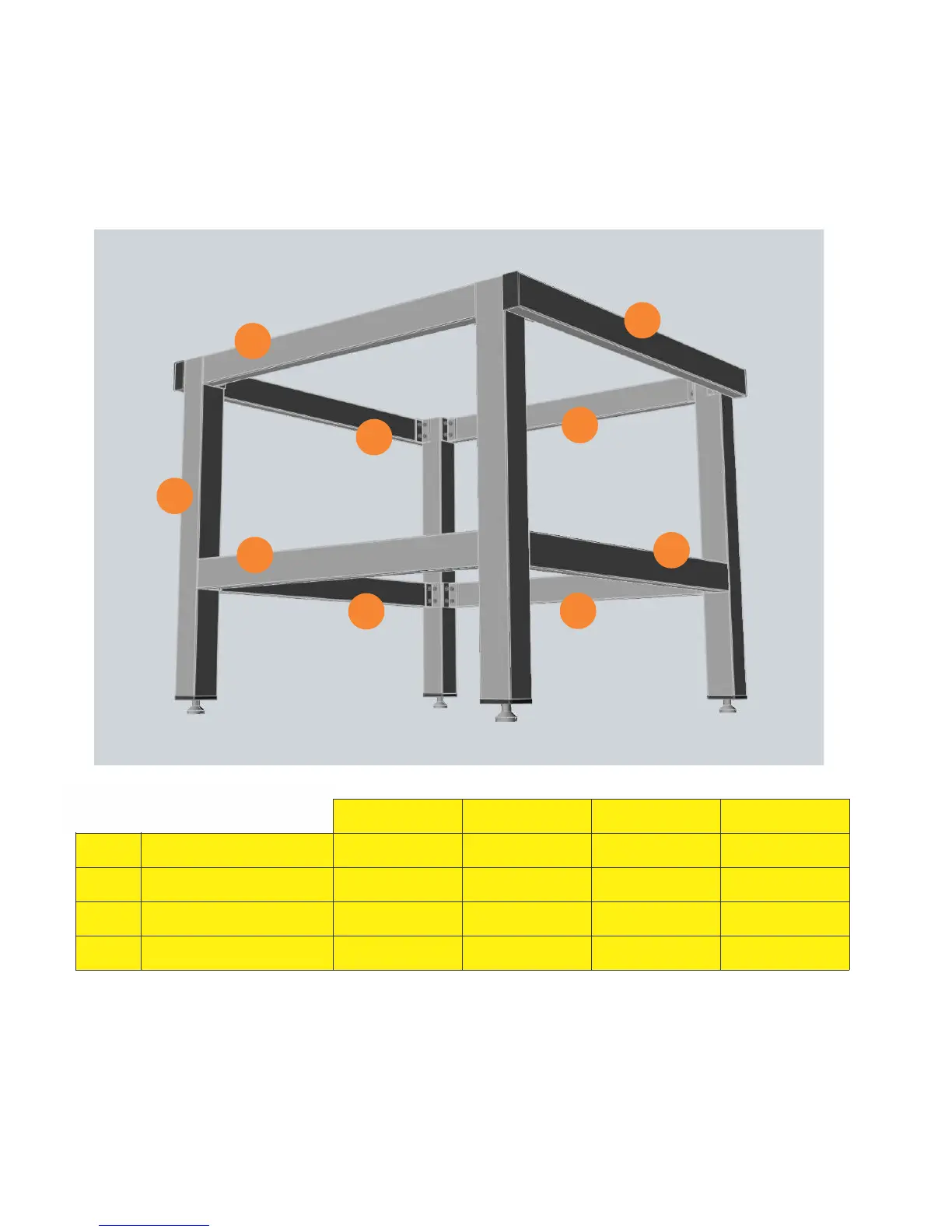

All rails are mounted inside the legs flush to the outside, except for the C rails, which mount
to the outside. The B rails are front/back of the machine. The upper rails should be flush
with the top while the lower rails can be adjusted up and down as needed.
FRONT
Extrusion Lengths (mm)
Aluminum Stand Assembly
ALUMINUM STAND ASSEMBLY
