Specifications, PDT 3
■ Direct digital output, RCA: SPDIF standard format
■ Direct digital output, XLR: AES/EBU standard format
■ Direct digital output, ST: AT&T standard format
■ Direct digital output, TOSLINK: EIAJ standard format
■ Mains voltage: 120 V U.S. service
■ Mains frequency: 50/60 Hz
■ Power consumption: 21W @ 120V, 60 Hz
■ Shipping weight: 25 lbs/11.34 kg
■ Overall dimensions
■ Width: 8.4 in/214 mm
■ Height: 8.9 in/227 mm
■ Depth: 13.25 in/337 mm
Madrigal Audio Laboratories, Inc., reserves the right to change this
product’s features and specifications without notice.
Pin 1: Digital ground
Pin 2: DAS (Digital Audio Standard) output +
Pin 3: DAS output –

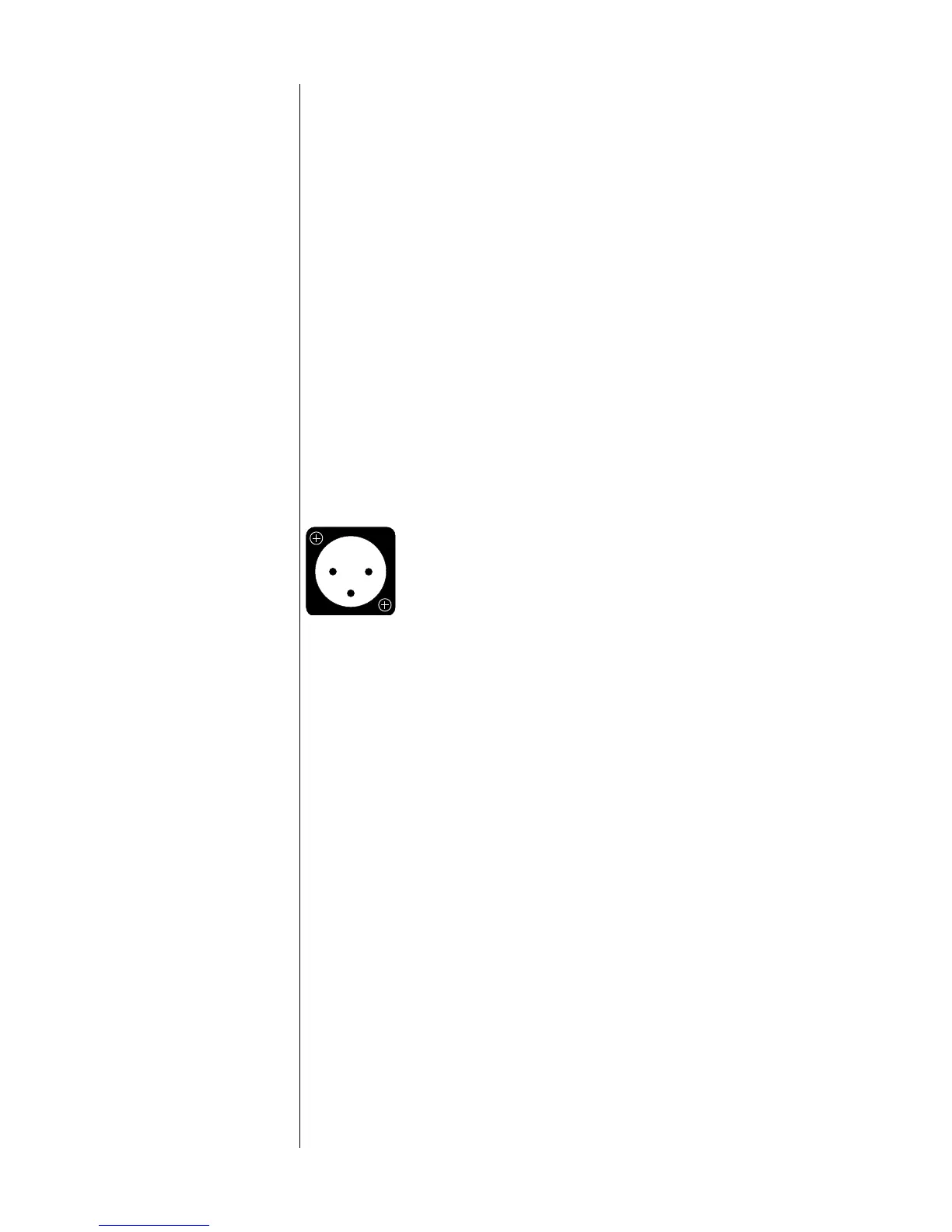

Pin assignments, male XLR
digital output
2
1
3
