3. June 2024 © Copyright 2024, PROCEQ SA 22
5.4.3 Augmented reality (AR)
gp app software produces an Augmented reality (AR) view of time slice view & 3D views.
Screenshots of AR view help to enrich reporting.

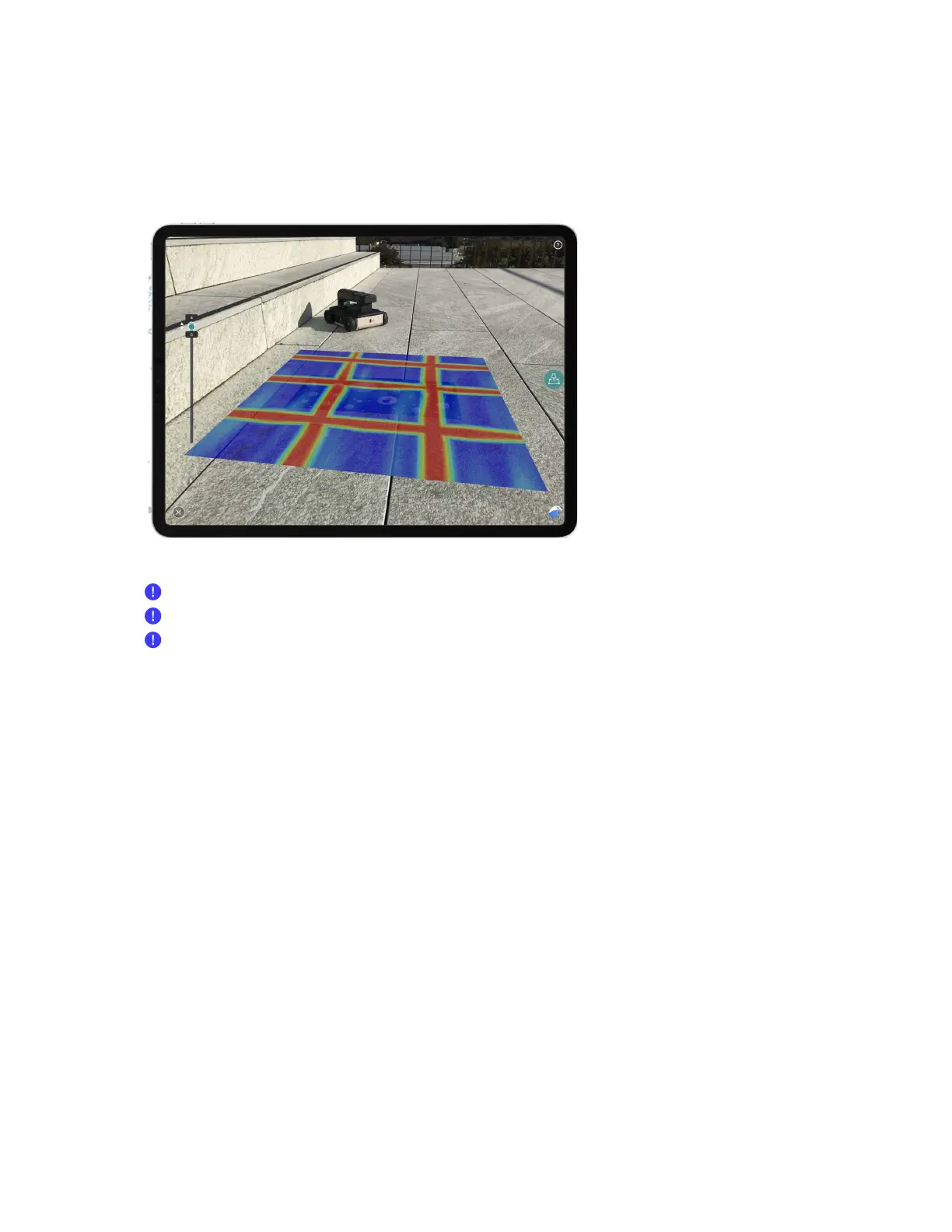

Figure 22: GP app software Augmented Reality view
Swipe right/left to increase or decrease the time slice view transparency.
Swipe up/down with 2 fingers for switching between 3D view and time slice view
Swipe up/down with 1 finger to move up/down the 3D view
5.5 Tags & Live wire detection
The Tag menu on the right enables the user to tag identified targets such as rebar, live wire,
void, backwall or defined objects (like post-tension ducts).
GP8000 & GP8100 provide live wire detection (on top of the screen) based on signal strength
color intensity that can be adjusted in image processing settings.
