Proceq GP8800 User Manual

3. June 2024 © Copyright 2024, PROCEQ SA 21
GP app software provides an area scan measurement view (see Figure 20).
5.4.1 Time slice view
GP app software produces a time slice view (as shown in Figure 20) enhancing the level of
comprehension for locating targets. The user can adjust the slice thickness and obtain a
dynamic plan view from top to bottom by moving the left slider.

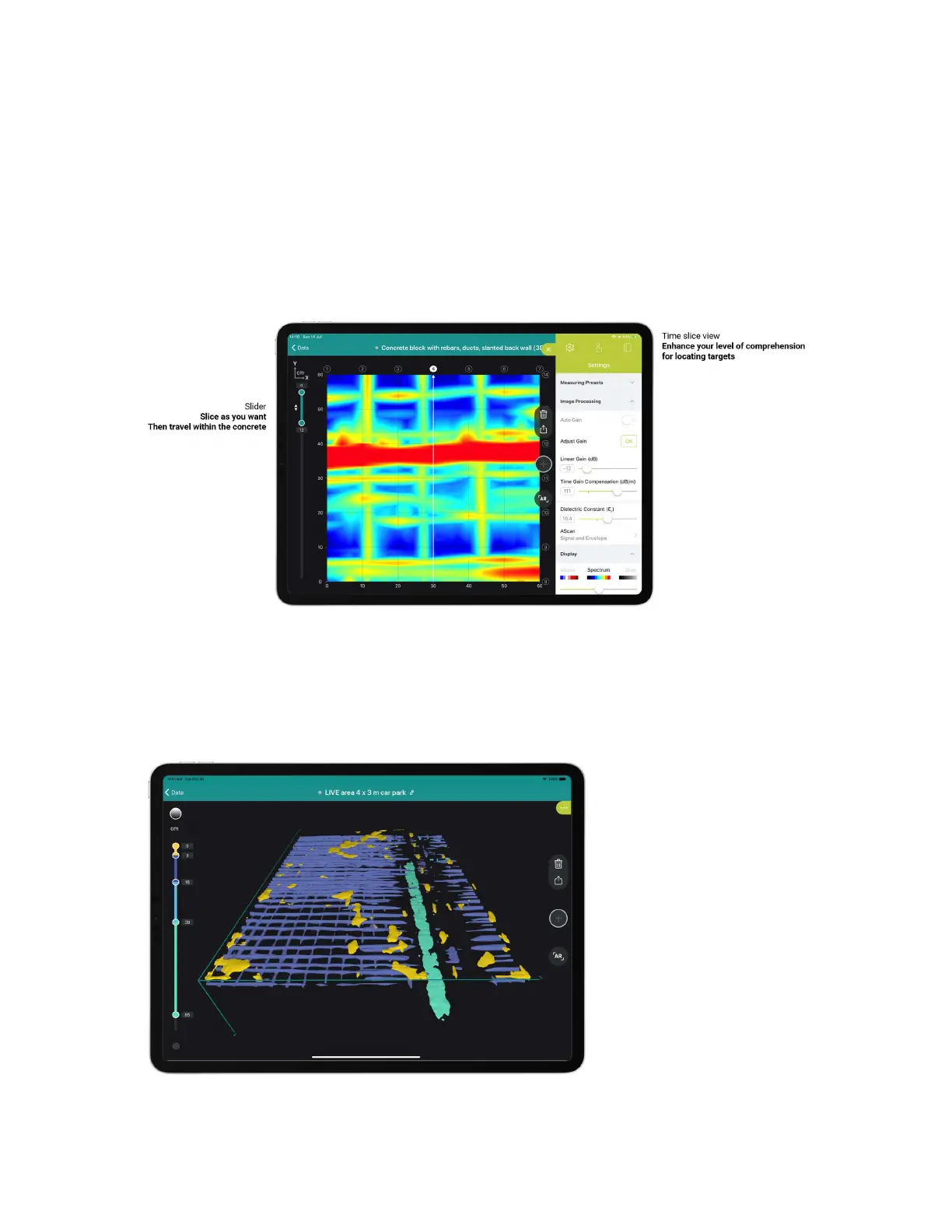

Figure 20: GP app software area scan & time slice view
5.4.2 3D view
GP app software produces a 3D view improving the level of comprehension for locating
targets. The user can adjust the color for each depth intervals differentiating objects by moving
the left slider.
Figure 21: GP app software 3D view
