3. June 2024 © Copyright 2024, PROCEQ SA 36

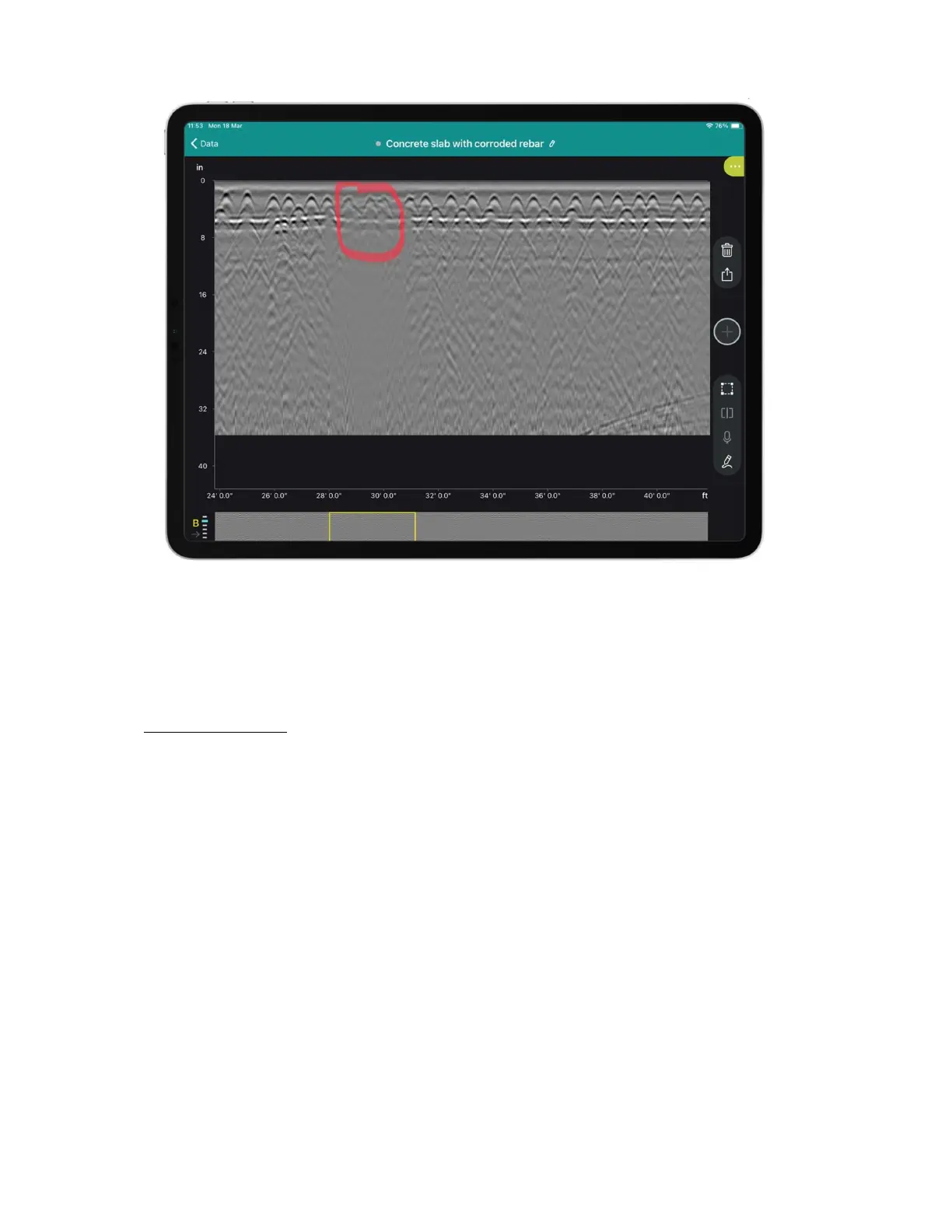

Figure 44: GP app software raw data view concrete corrosion application
6.5 Post-tensioned concrete slab
Measurement Mode: Area scan
The time slice view reveals at a certain depth all the PT duct layout and few rebar.
The B-scan and superline scan in split view confirm the presence of the PT ducts underneath
the rebar.
