Page 13

wire won’t stop running until this
trigger is released.
5. “
MIG/MMA/TIG” You can adjust the
welding current by turning this knob.
for all welding functions MIG /
MMA / TIG.
6.
Spool Gun Connection
7.
Euro Mig Torch Connector
8.
"+" Output Connector
9.
"-" Output Connector
For Model 511625:
10.
Burn Back Adjustment, sets the
amount of wire that will be burnt
back once weld is complete.
11. Spot Weld Timer, adjusts the
length of spot weld time.
12. Soft Start, controls the voltage
supply when the weld is starting

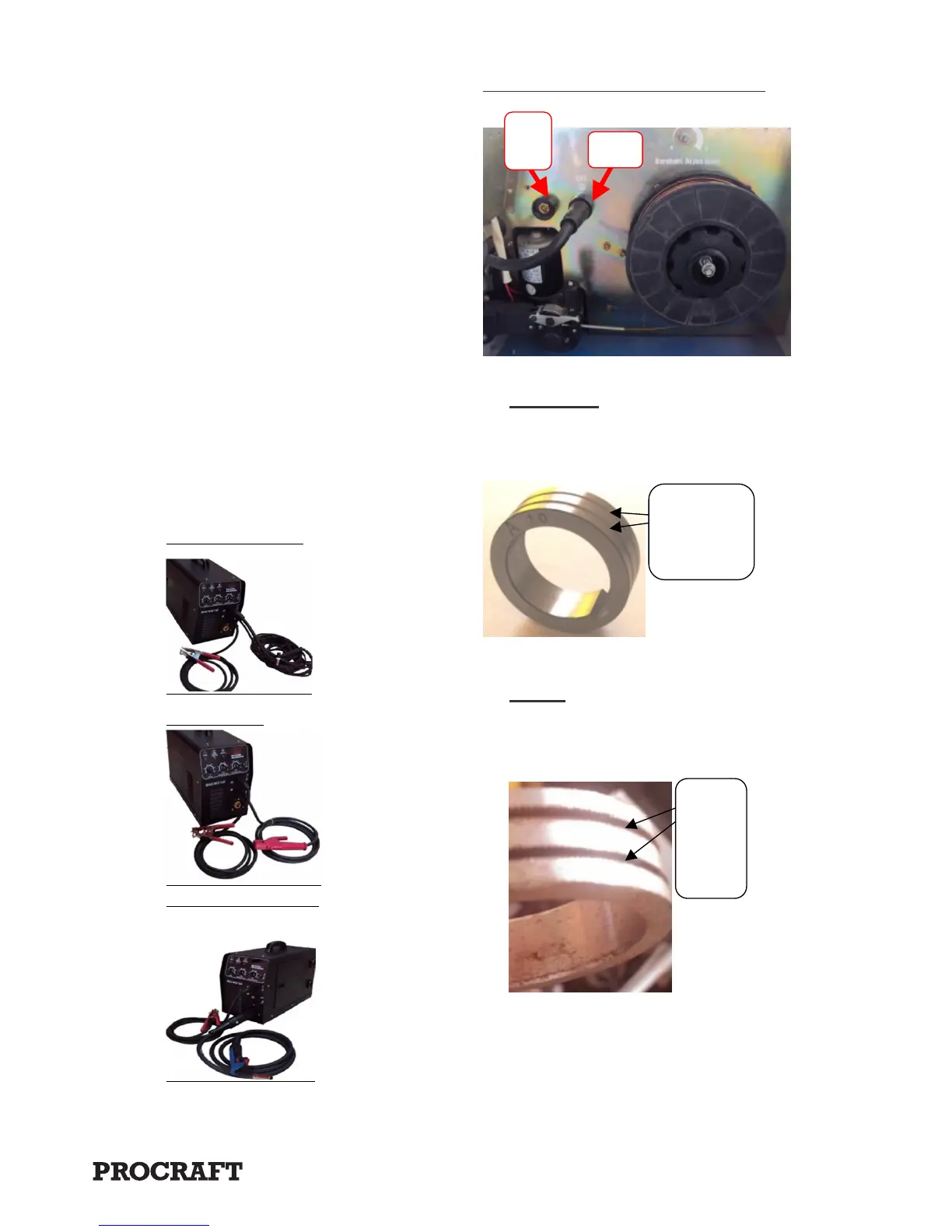

TIG Torch Connect
MMA welding
MIG welding connect
Setting
t
he Gun polarity For Wire
t
ype
1. Set for Electrode Positive (GAS) for
gas welding with solid-core wire and
the gas supply is needed.
Note: When it is gas welding, you also
should set common Wire feed rolls
2. Set for Electrode Negative (DCEN) for
gasless flux core wire and this kind
connect don’t need gas supply.
Note: When it is gasless welding, you also
should set the special Wire feed rolls.
Without
toothinthe
groove
With
tooth
in the
groove
NO
GA
S
GAS
