5
Tools Required: Phillips-head screwdriver. Do NOT
overtighten.

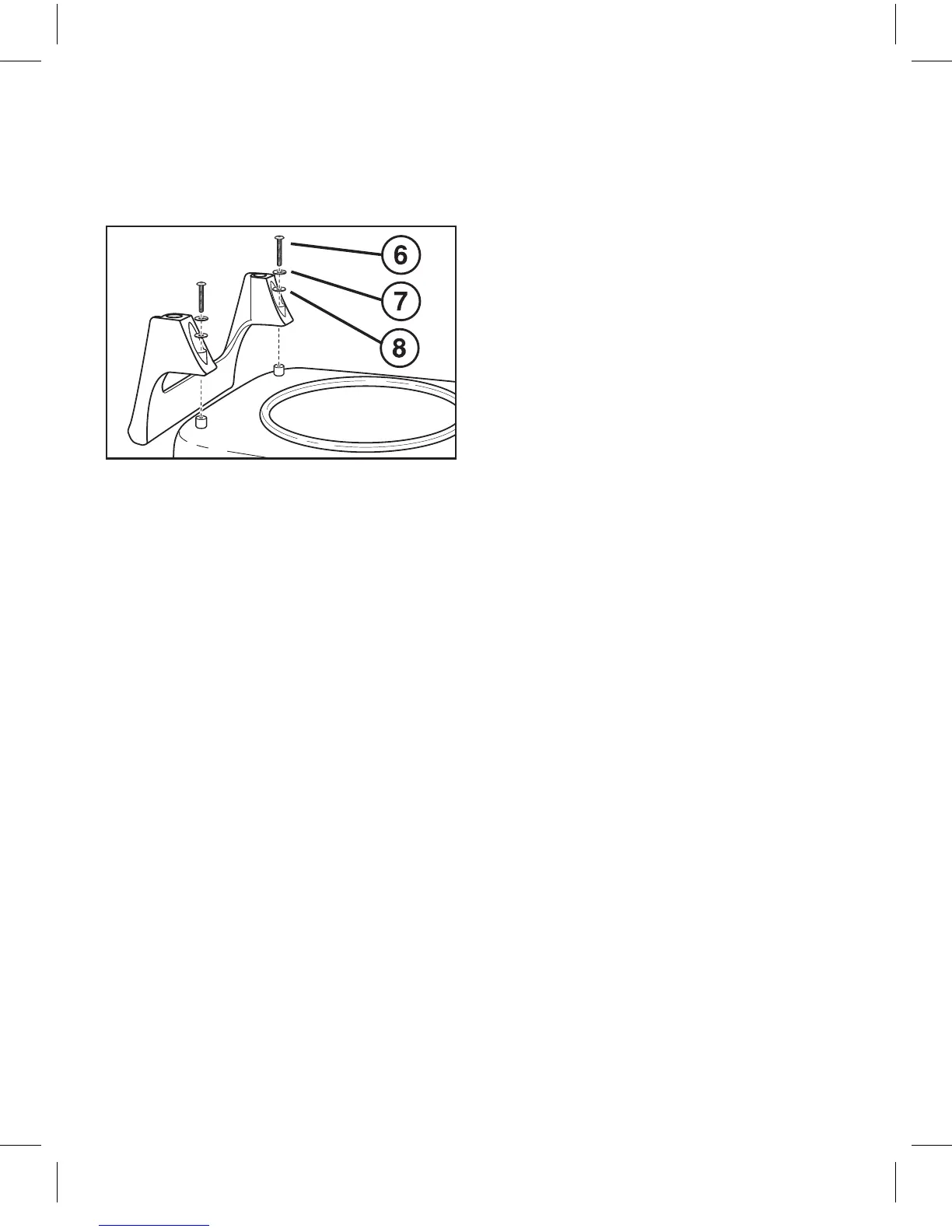

Assembly of handle/feet to
base is required. See below.
NOTE: Screws and washers may be partially screwed into base
for shipping purposes. Remove them to assemble handle/feet
to base. After assembly the handles/feet should feel secure.
If the handles/feet are loose, or the unit rocks when on a
flat surface, the handles are not installed properly. Loosen
the screws and realign handles; then retighten as shown.
Periodically check screws and retighten as necessary.
Assembly
6. Long Screw
7. Split Lock Washer
8. Flat Washer
840236200 ENv06.indd 5 1/15/14 4:26 PM
