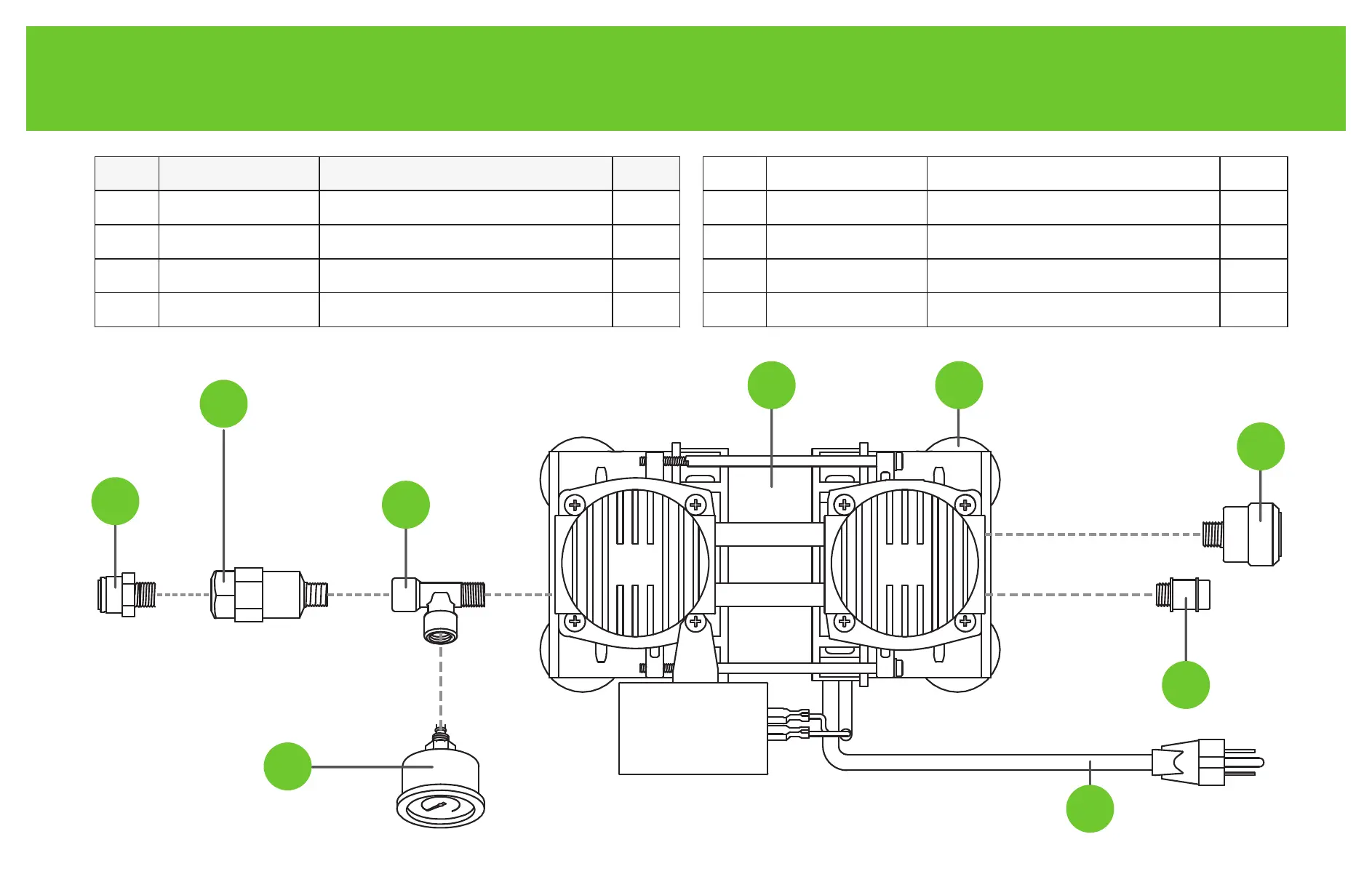

Diagrama de Compresor de Aire
HCOM001-1HD (Sistema pequeño)
4
3
2
1
5
7
8
6
9
# PART NUMBER DESCRIPTION QTTY
1 2GAU006 Gauge 1.5 inch 1/4 inch NPT, 0-160 1
2
3
2PMCQ38M14 M Con, 3/8 inch QC x 1/4 inch MPT 1
4
2AFIL-INL14-5MIC Air Filter 1/4 inch FNPT 5 mic 1
2MSTF14F14M14 Straight Tee 1/4 inch, MTL 1
5
6
1COM002 Air Compressor, Dbl Hd, 110VAC 1
7
2FCVAL-M14 Air Flow Control Valve 1/4 inch NPT 1
8
3CLPHUM003 Suction Cup, w/ 8-32 MS Insert 4
9
2AFIL003 Air Intake Filter 1/4 inch NPT 1
1WIR050 Wire, 16/3 Extension Cord 1
