PROEL S15A User Manual

16. AC~ socket
Here’s where you plug in your speaker’s mains supply cord. You should always use the mains cord supplied
with the speaker. Be sure your speaker is turned off before you plug the mains supply cord into an electrical
outlet.
17. TECHNICAL SPECIFICATION
S10A
S12A
S15A
S18A
System type
Hybrid Band Pass subwoofer
Hybrid Band Pass subwoofer
Hybrid Band Pass subwoofer
Hybrid Band Pass subwoofer
Loudspeaker
10’’ woofer with 2" VC
12’’ woofer with 3" VC
15’’ woofer with 3" VC
18’’ woofer with 4" VC
Amplifier Continuous Power
350 W
600 W
600 W
600 W
Amplifier Peak Power
700 W
1200 W
1200 W
1200 W
Frequency Response
46 Hz - 160 Hz
43 Hz - 160 Hz
40 Hz - 160 Hz
36 Hz - 140 Hz
Max SPL at 1m (peak)
119 dB
127 dB
129 dB
131 dB
Connectors
IN: 2 x NEUTRIK COMBO
OUT: 2 x NEUTRIK XLR-M
LINK: 2 x NEUTRIK XLR-M
IN: 2 x NEUTRIK COMBO
OUT: 2 x NEUTRIK XLR-M
LINK: 2 x NEUTRIK XLR-M
IN: 2 x NEUTRIK COMBO
OUT: 2 x NEUTRIK XLR-M
LINK: 2 x NEUTRIK XLR-M
IN: 2 x NEUTRIK COMBO
OUT: 2 x NEUTRIK XLR-M
LINK: 2 x NEUTRIK XLR-M
Controls
Level
GND lift
X-over frequency
Phase
Level
GND lift
X-over frequency
Phase
Level
GND lift
X-over frequency
Phase
Level
GND lift
X-over frequency
Phase
Power Supply
220-240 V~ or 100-120 V~
50/60 Hz with LINE VOLTAGE
selector
220-240 V~ or 100-120 V~
50/60 Hz with LINE VOLTAGE
selector
220-240 V~ or 100-120 V~
50/60 Hz with LINE VOLTAGE
selector
220-240 V~ or 100-120 V~
50/60 Hz with LINE VOLTAGE
selector
Consumption
600 W
600 W
600 W
600 W
Cabinet
15/18 mm plywood
Black anti-scratch paint
1.5 mm metal grille
2 handles
1 x pole socket
15/18 mm plywood
Black anti-scratch paint
1.5 mm metal grille
2 handles
1 x pole socket
15/18 mm plywood
Black anti-scratch paint
1.5 mm metal grille
2 handles
1 x pole socket
4 x 75 mm wheels
15/18 mm plywood
Black anti-scratch paint
1.5 mm metal grille
2 handles
1 x pole socket
4 x 75 mm wheels
Dimensions (W x H x D)
315x420x495mm
360x500x520mm
435x570x560mm
435x570x660mm (wheels)
508x630x645mm
508x630x745mm (wheels)
Weight
14 kg (30.8lb)
19 kg (41.9 lb)
26 kg (58 lb)
36 kg (79.4 lb)
18. ACCESSORIES

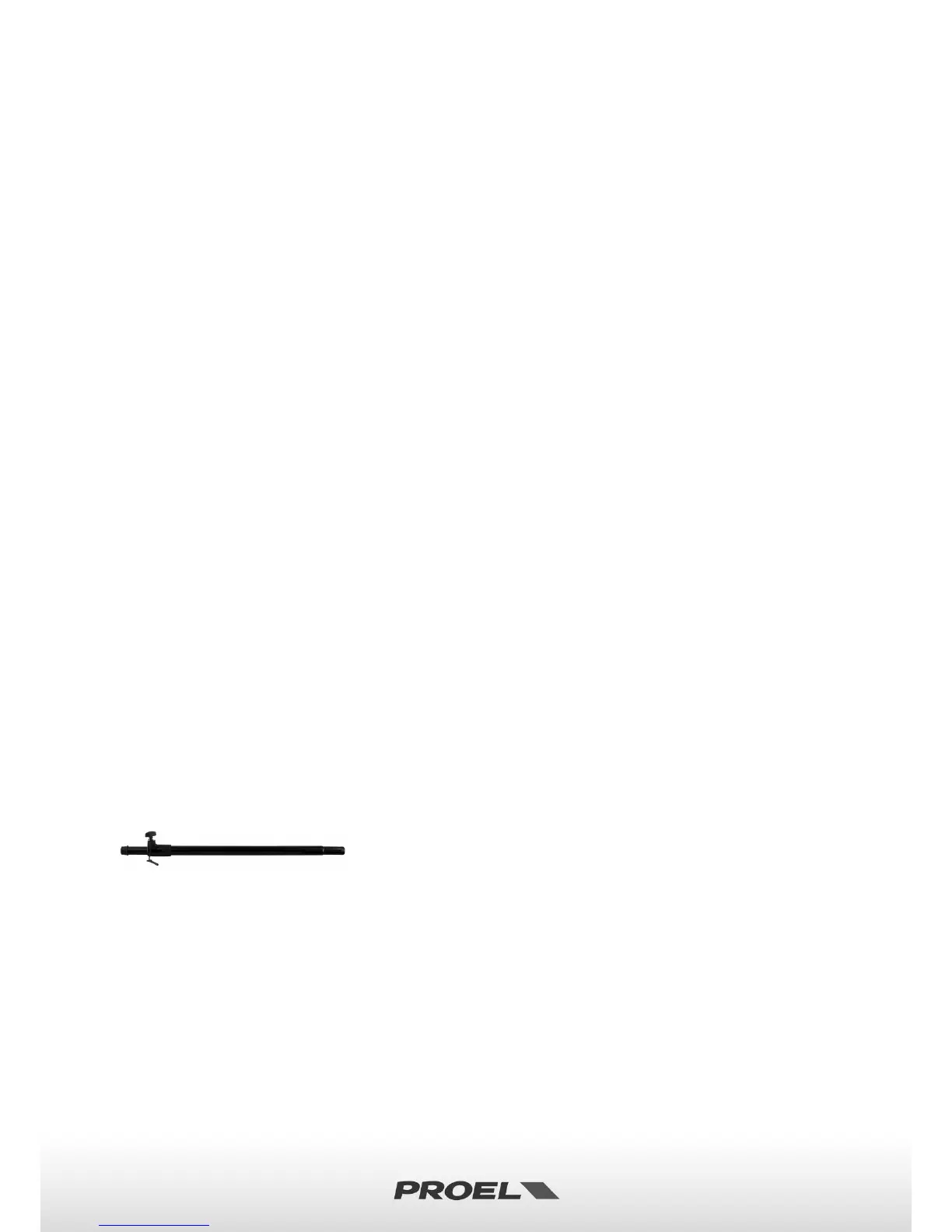

KP210 - Adjustable speaker pole for speaker-subwoofer separation with terminal pieces Ø 35 mm. Supplied
with a bolt locking mechanism incorporating a steel pin for extra safety. Adjustment: 825 - 1320 mm.
9
