INSTALLATION
This unit must be installed on an external wall, as it vents
directly out of its rear.
Only install the unit on a flat, solid and reliable wall.
Ensure that there are no cables, pipes, steel bars or other
obstructions behind the wall.

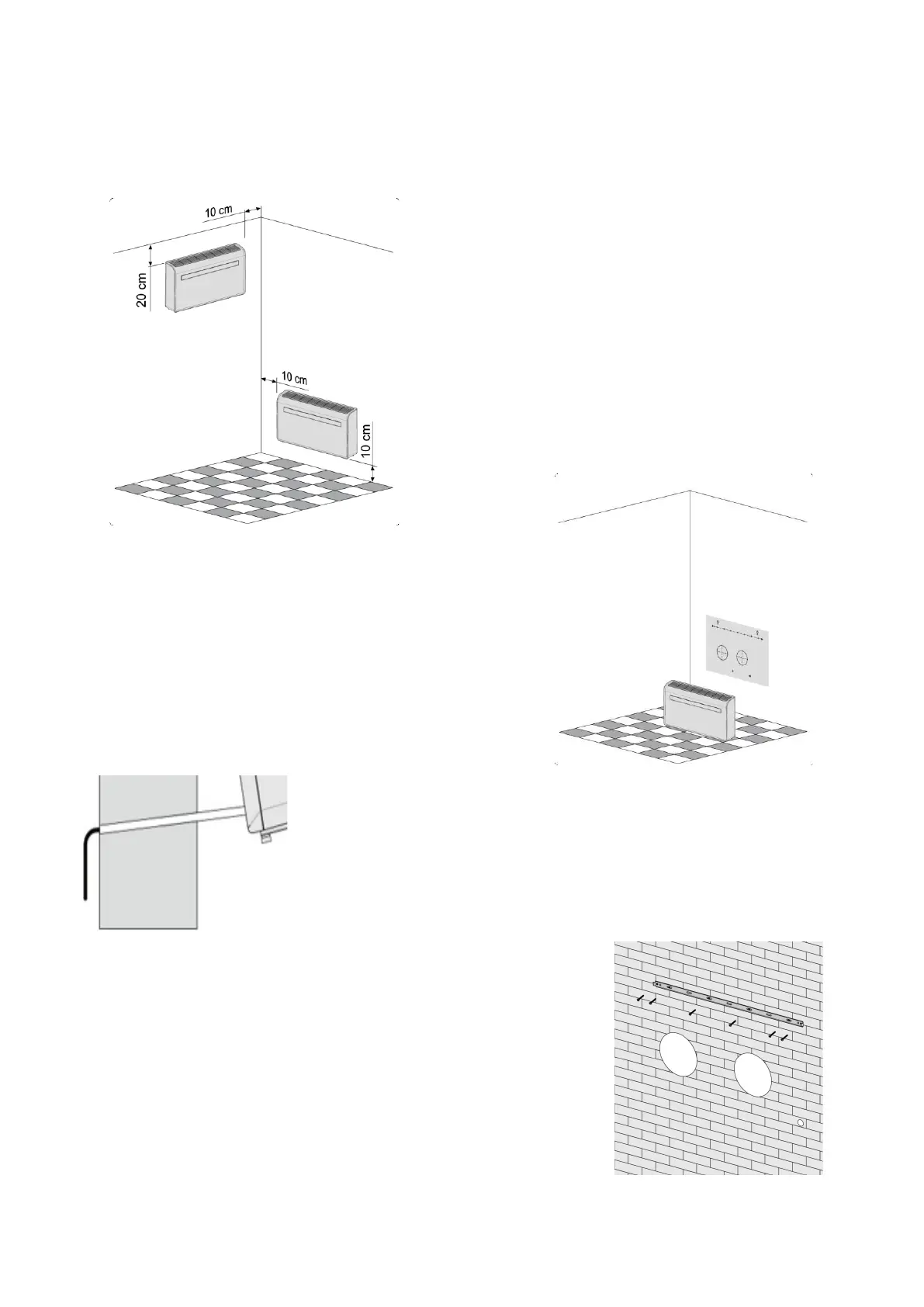

Leave at least 10 cm of space to the left, right and base of
the machine. At least 20cm of space must be left above
the unit to help air flow smoothly.
Paste the supplied installation template paper in position on
the wall, ensuring that the reference line is level using a spirit
level.
Drill an opening for the drain pipe using the 20mm drill
bit. Make sure the opening is at a downward angle
(min. 5 degrees) so the water can drain properly.
Use the 180 mm core drill bit to drill the two holes for the ventilation of
the unit.
CAUTION: Make sure both holes are aligned with the template!
Next, use the template to mark out the location of the screws for the
suspension rail.
