545144210 MONOBLOCK AIR CONDITIONER NL
10
Check that the rail will hang straight using a spirit level. If yes, drill the marked holes with the 8 mm
drill bit and insert the wall plugs. Align the wall bracket with the holes and secure the rail in place
using the screws provided.
Ensure that the suspension rail is firmly attached to the wall so that there is no danger of the unit
tipping over or falling.

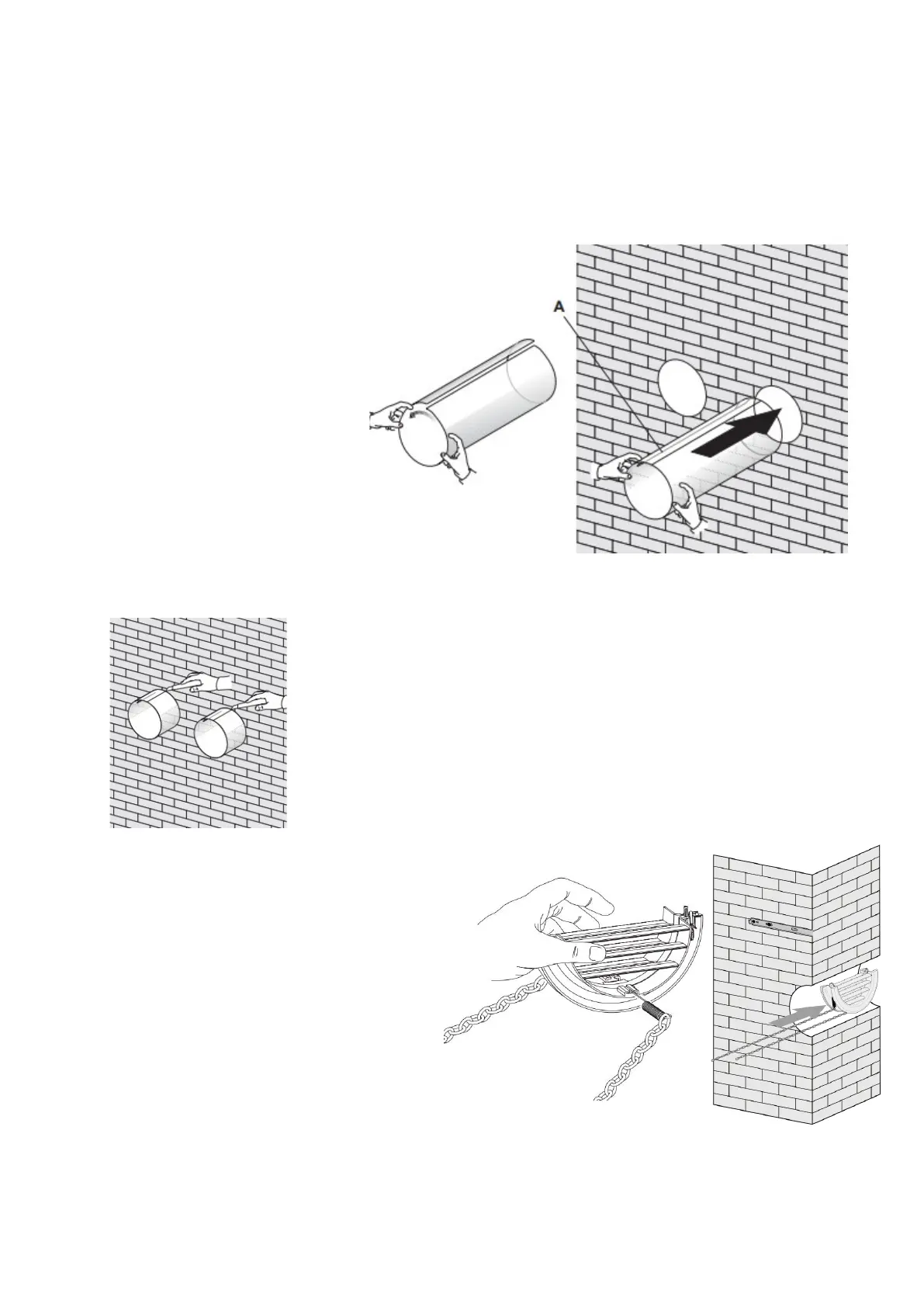

Roll the plastic vent sheets into a
tube and feed them from the
inside into the holes previously
made. Ensure the tubes sit flush to
the interior wall.
Go outside and cut off the excess material from the tubes with a sharp
knife.
Insert the indoor fixing ring from the vent cover
onto the indoor side of the air vent. Then fold
the external vent cover in half. Attach the chains
to each side of the vent cover, before sliding the
cover outside through the vent hole.
