Mitre table
Inner ange
Outer ange
Spanner
Spanner
28
Assembling the saw

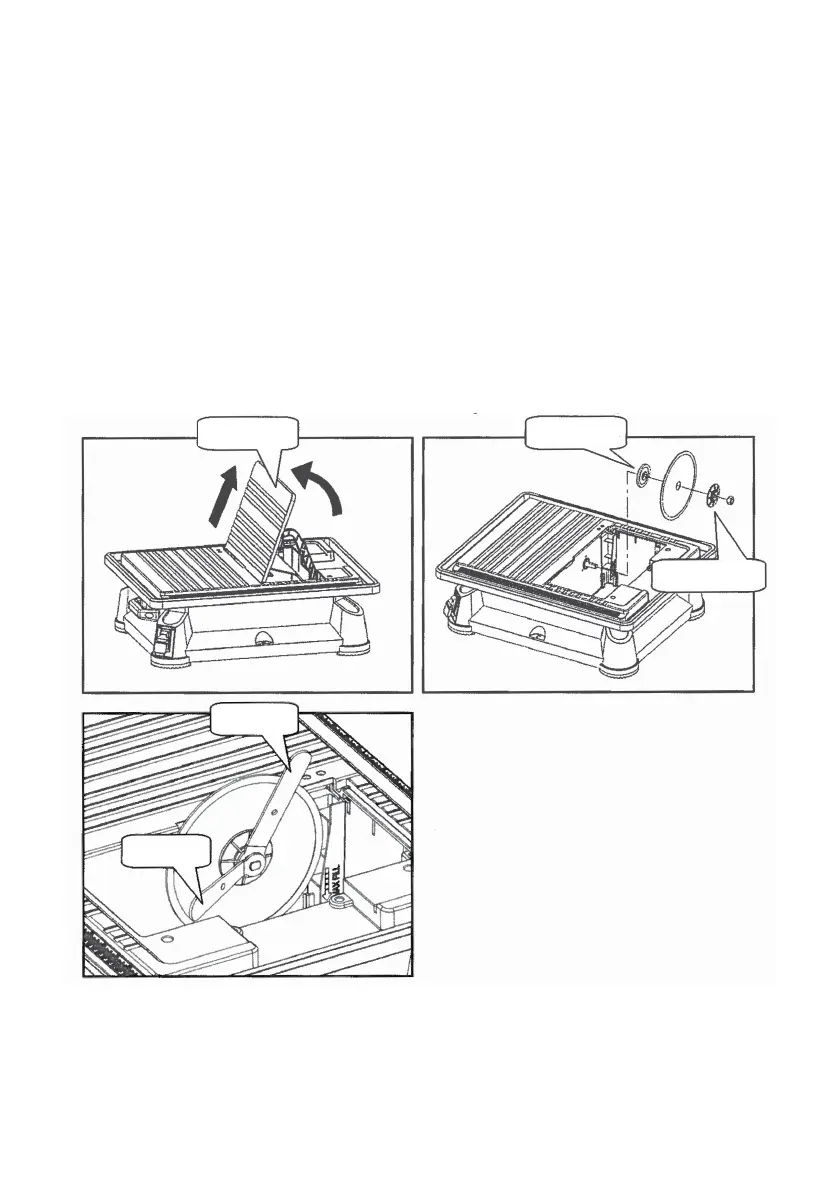

ASSEMBLING THE CUTTING DISK
1. Disconnect the machine from the power supply and remove the mitre table.
2. Remove the arbor nut and outer ange. Leave the inner ange on the shaft.
3. Tightly fasten the cutting disk onto the inner ange with the arrow on the cutting
disk anti-clockwise.
4. Reinstall the outer ange. The “D” surface of the ange is aligned with the surface on
the shaft.
Reinstall the arbor nut. Tighten it using two spanners.
