10
11

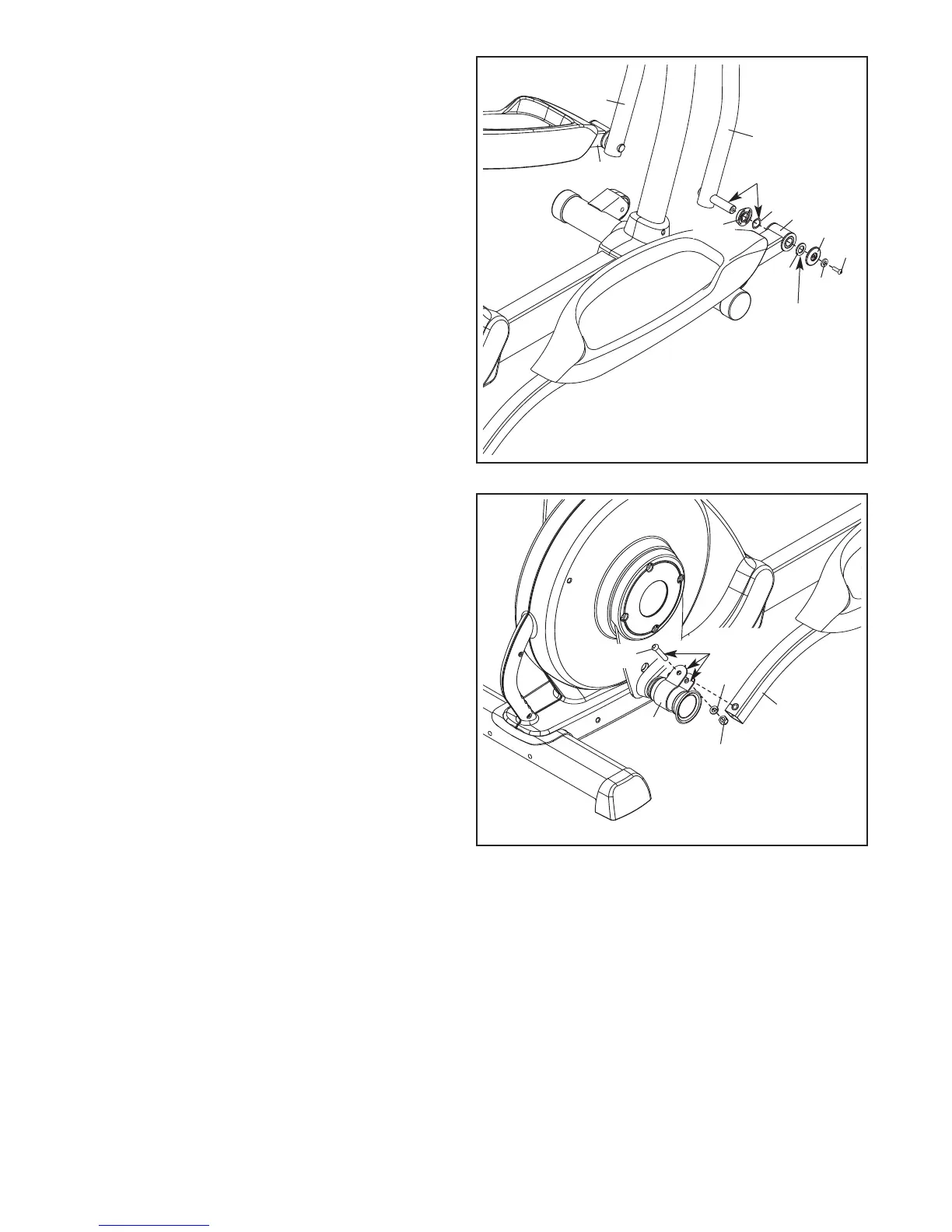

11. Apply grease to the bracket on the Crank
Bushing Sleeve (43) and to an M10 x 58mm
Shoulder Bolt (71).
Insert the right Link Arm (20) into the Crank
Bushing Sleeve (43). Attach the right Link Arm
with the M10 x 58mm Shoulder Bolt (71), an M8
Washer (88), and a M8 Nylon Locknut (78).
Repeat this step on the other side of the
elliptical exerciser.
43
88
78
20
71
10. Apply grease to the axle on the Right Upper
B
ody Arm (12). Then, apply grease to a 23mm
x 19mm Wave Washer (97) and to an M8 x
2
3mm x 1mm Washer (112).
Slide an Upper Body Arm Spacer (62) onto the
Right Upper Body Arm (12);
make sure that
t
he flat side of the Upper Body Arm Spacer
i
s facing outward.
T
hen, place the 23mm x
19mm Wave Washer (97) on the Right Upper
Body Arm.
Slide the Right Pedal Leg (16) onto the Right
Upper Body Arm (12). Attach the Right Pedal
Leg with an M8 x 23mm Shoulder Screw (115),
an M8 x 16mm Washer (110), a Pedal Leg
Cover (31), and the M8 x 23mm x 1mm Washer
(112).
Repeat this step for the Left Pedal Leg (14)
and the Left Upper Body Arm (11).
10
12
11
G
rease
Grease
62
97
16
1
4
31
115
110
112
Grease
To Next Page
