8

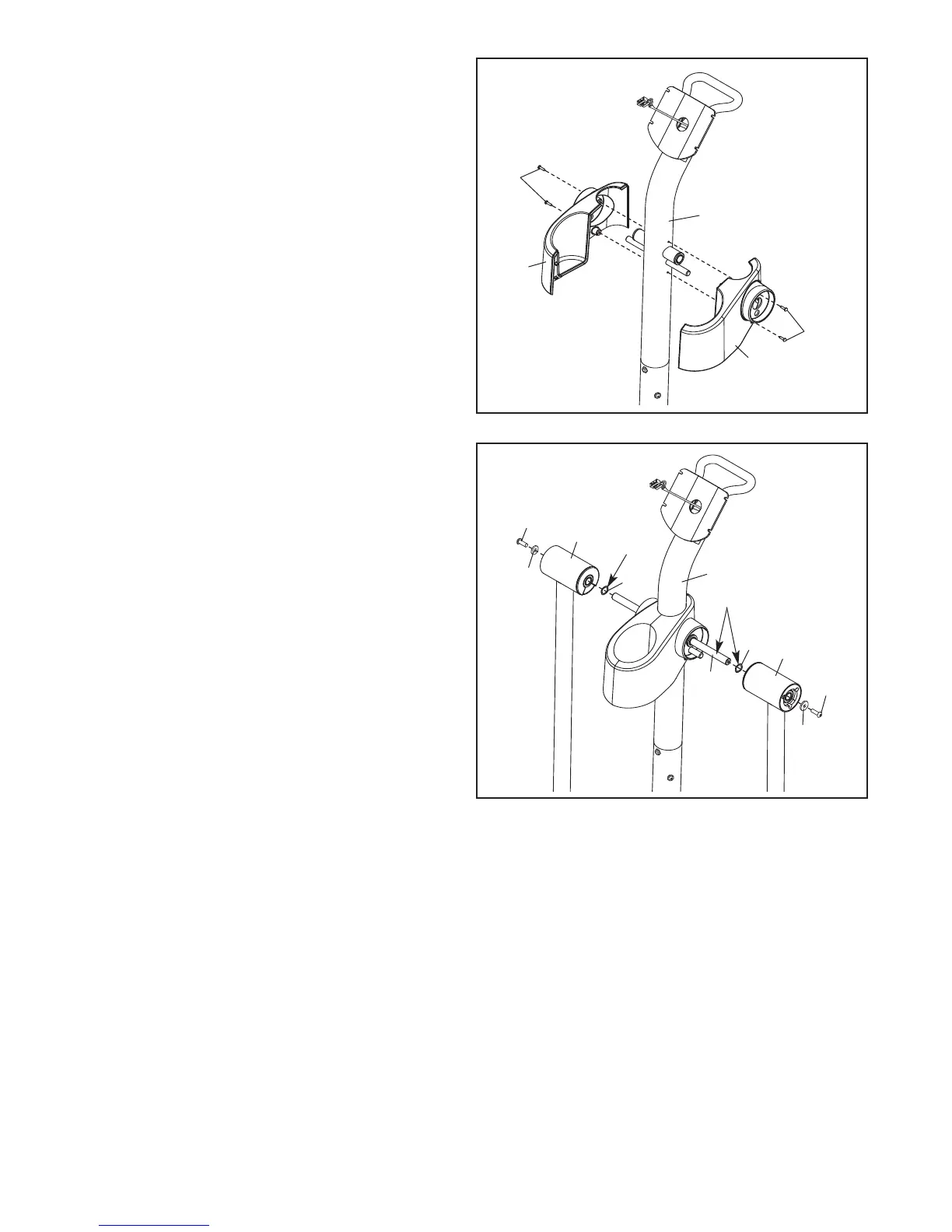

7. Apply a generous amount of the included
grease to the Pivot Axle (74), and then apply a
small amount of grease to two 22mm x 16mm
Wave Washers (111). Next, insert the Pivot Axle
through the Upright (3).
Place a 22mm x 16mm Wave Washer (111) on
the left end of the Pivot Axle (74). Identify the
Left Upper Body Arm (11), which is marked with
an “L” sticker. Then, slide the Left Upper Body
Arm onto the Pivot Axle. Attach the Left Upper
Body Arm with an M8 x 23mm Button Screw
(84) and an M8 Washer (88).
Attach the Right Upper Body Arm (12) in the
same way.
7
12
84
88
74
3
11
84
88
111
111
Grease
Grease
6. Orient the Left and Right Upright Covers (17,
1
8) as shown. Attach the Upright Covers around
the Upright (3) with four M4 x 16mm Round
H
ead Screws (101).
6
3
17
101
101
18
