5

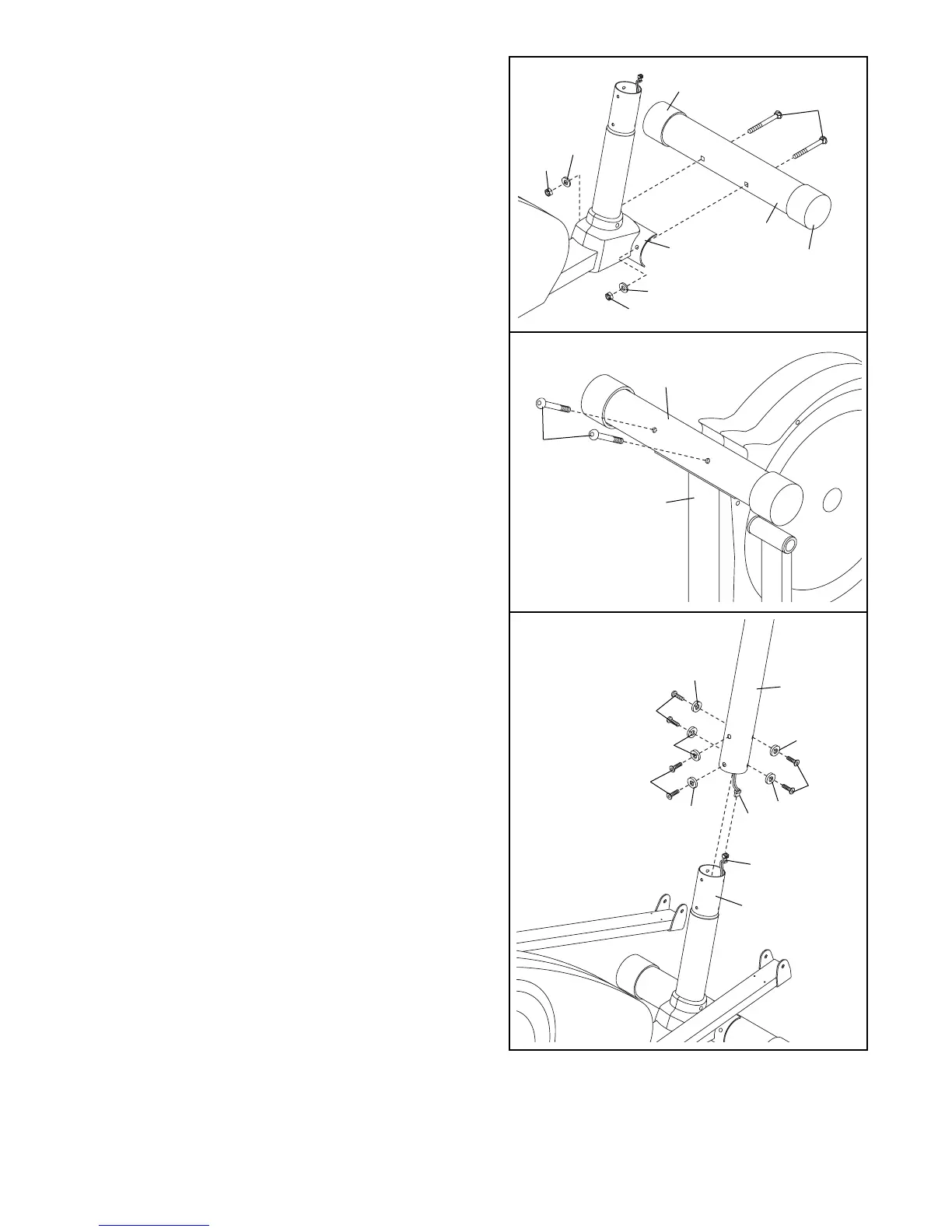

1. Identify the Front Stabilizer (2), which has Transport
Wheels (29) attached to it. Attach the Front
Stabilizer to the Frame (1) with two M8 x 3 1/2"
Carriage Bolts (51), two M8 Arc Washers (54), and
two M8 Cap Nuts (24).
2. With the help of another person, raise the Frame (1)
up onto its front end. While the other person holds
the Frame, attach the Rear Stabilizer (20) to the
Frame with two M8 x 3 3/8" Button Screws (42).
With the help of another person, lower the
Frame (1) so that it rests on the Rear Stabilizer (20)
and the Front Stabilizer (not shown).
2
1
51
54
1
24
2
20
42
1
54
24
29
29
3. While another person holds the Upright (3) near the
Frame (1), connect the Upper Wire Harness (75) to
the Reed Switch Wire (67).
Slide the Upright (3) onto the Frame (1).
Be careful
to avoid pinching the wires. Align the holes in the
Upright with the holes in the Frame. Attach the
Upright with six M8 x 5/8" Button Screws (45) and
six M8 Arc Washers (54).
3
67
1
3
45
54
45
45
54
54
54
75
54
Avoid pinching
the wires during
this step
To Next Page
