7

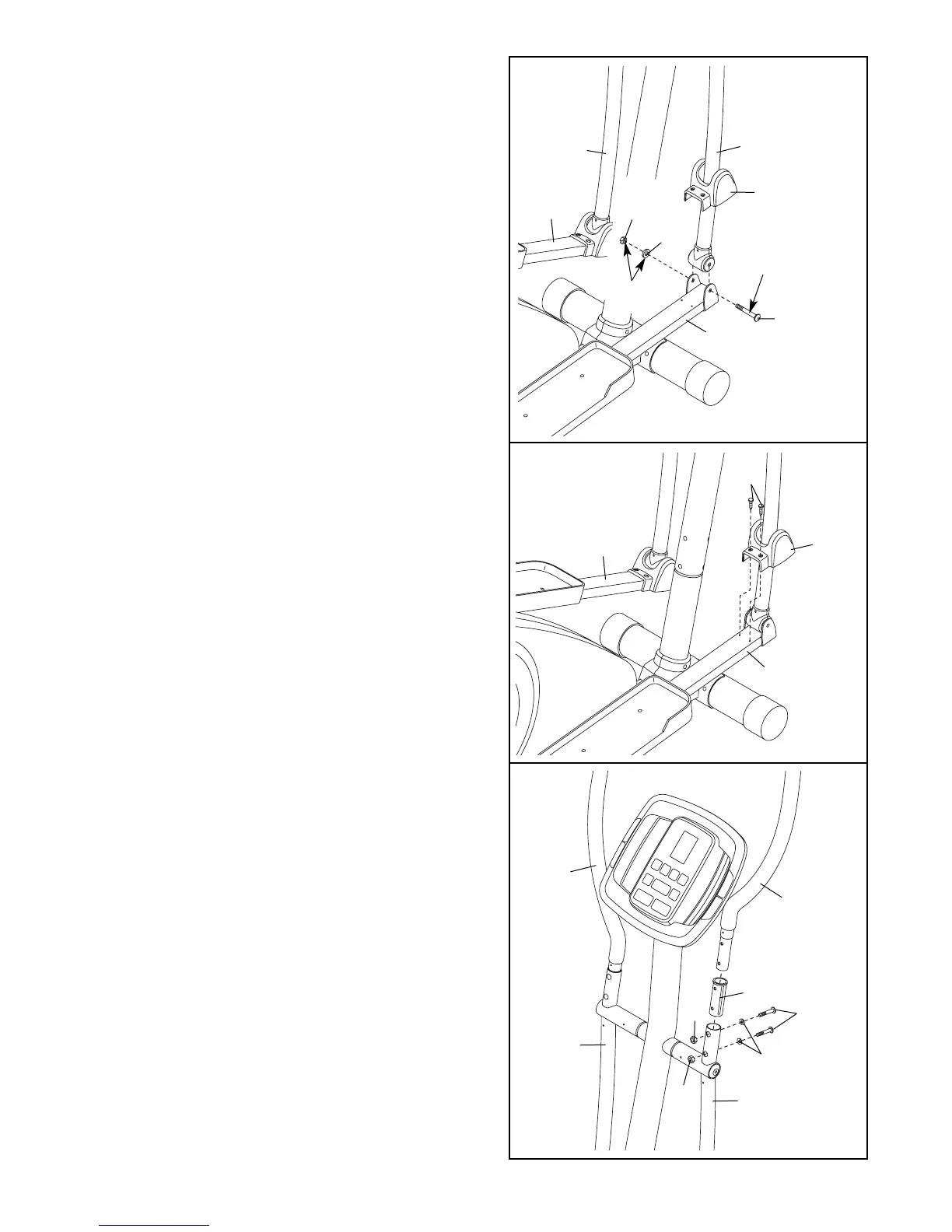

7. Slide a Pedal Tube Cover (78) onto the Right
Handlebar Leg (71).
Apply a thin film of the included grease to the parts
shown at the right. Next, attach the Right Pedal
Tube (64) to the Right Handlebar Leg (71) with an
M6 x 2 1/2" Button Shoulder Bolt (40), an M6
Washer (55), and an M6 Nylon Locknut (56).
Repeat this step to attach the Left Pedal Tube (4)
to the Left Handlebar Leg (5).
71
4
5
56
7
8. Attach the right Pedal Tube Cover (78) to the Right
Pedal Tube (64) with two M4 x 1/2" Screws (49).
Repeat this step for the Left Pedal Tube (4).
8
78
55
64
64
78
49
40
4
9. Insert a Plastic Sleeve (16) and a Handlebar (6)
into the top of the Right Handlebar Leg (71). Align
the holes in the Plastic Sleeve and the Handlebar
with the holes in the Right Handlebar Leg. Then,
attach the Handlebar with two M6 x 1 3/8" Button
Bolts (46), two M6 Arc Washers (39), and two M6
Nylon Locknuts (56).
Repeat this step to attach the other Handlebar
(6) to the Left Handlebar Leg (5).
9
16
39
71
5
46
56
56
6
6
Grease
Grease
To Next Page
