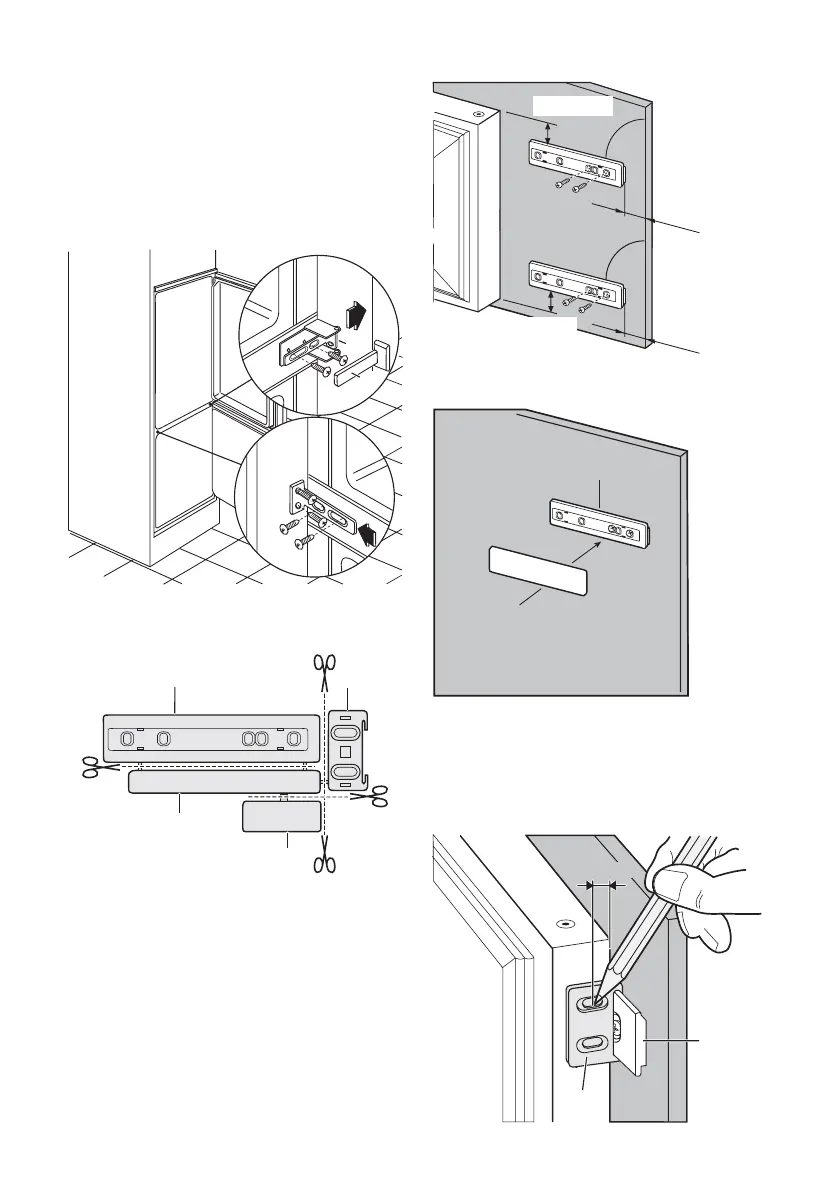

6. Connect the appliance laterally to the
kitchen furniture sidewall:
a) Loosen the screws of the part (G) and
move the part (G) till the furniture
sidewall.
b) Tighten the screws of the part (G)
again.
c) Attach the part (H) to the part (G).
G
H
7. Disconnect the parts Ha, Hb, Hc and Hd
Ha
Hb
Hc
Hd
8. Install the part Ha on the inner side of the
kitchen furniture.
ca. 50 mm
ca. 50 mm
21 mm
90°
90°
21 mm
9. Push the part Hc on the part Ha.
Ha
Hc
10. Open the appliance door and the kitchen
furniture door at an angle of 90°.
Insert the small square (Hb) into guide
(Ha).
Put together the appliance door and the
furniture door and mark the holes.
Ha
Hb
8 mm
