Project Timber Evolution My Den 8x6 - Page 5

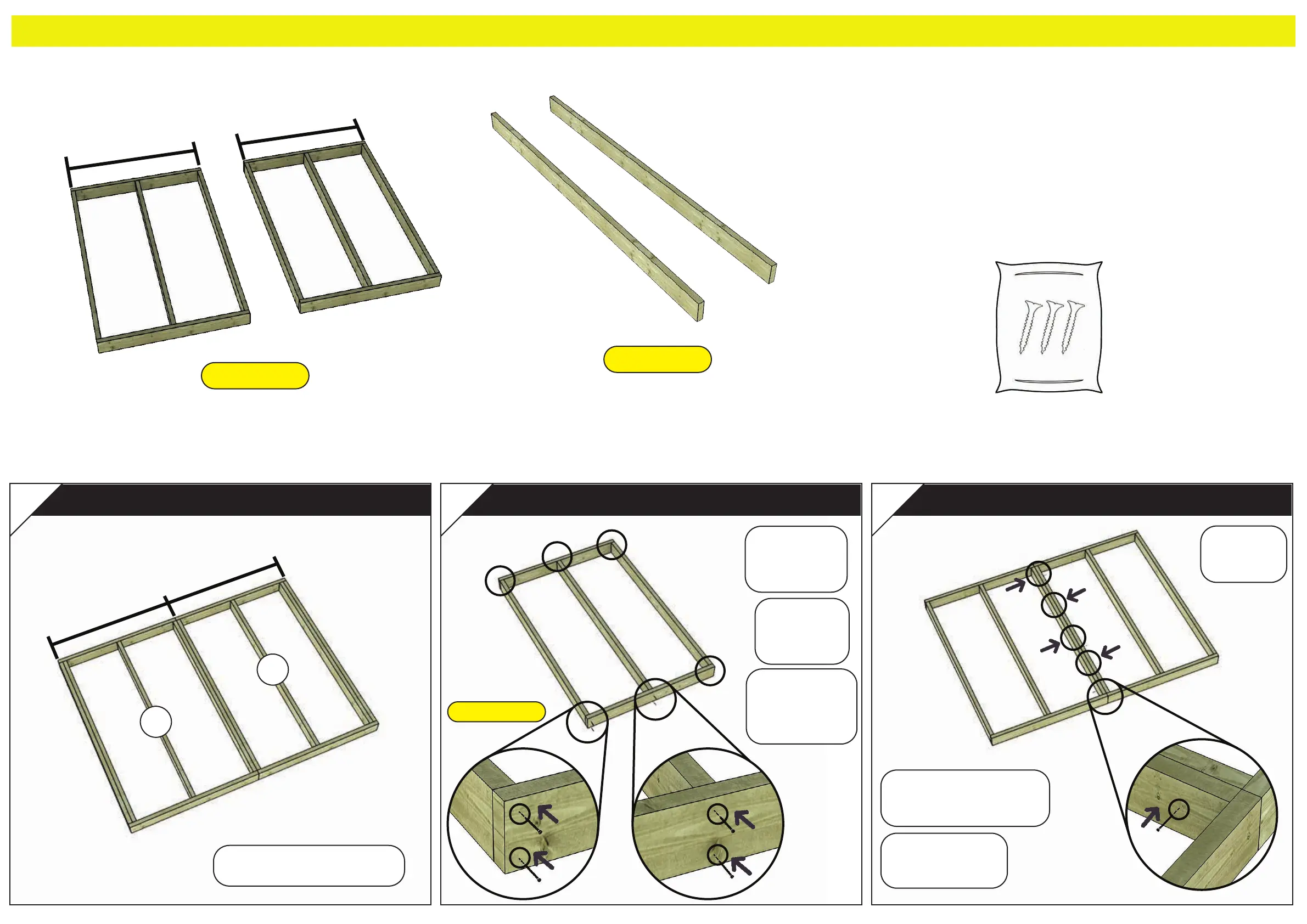

Base Module Woodkits
1220mm
1220mm
Base Module
(For each end of the assebled base)
Gable Bearers
Fixing Kit
1. Base Module I - 1893mm x 2440mm (2)
2. Gable Bearers - 38mm x 1817mm (2)
Parts List required:
ID: PT25393
ID: PT25397
Base Module fixing
Side
Front
Base Module I x 2
1220mm
1220mm
I
I
1
Side
1220mm
Module
Pilot drill
holes before
fixing
Base Module fixing
100mm
Screws
ID: PT25393
2
Side
Front
Back
Alternate sides
to screw together
Pilot drill holes
before fixing
Base Module fixing
70mm
Screws
3
