Project Timber Evolution My Den 8x6 - Page 7

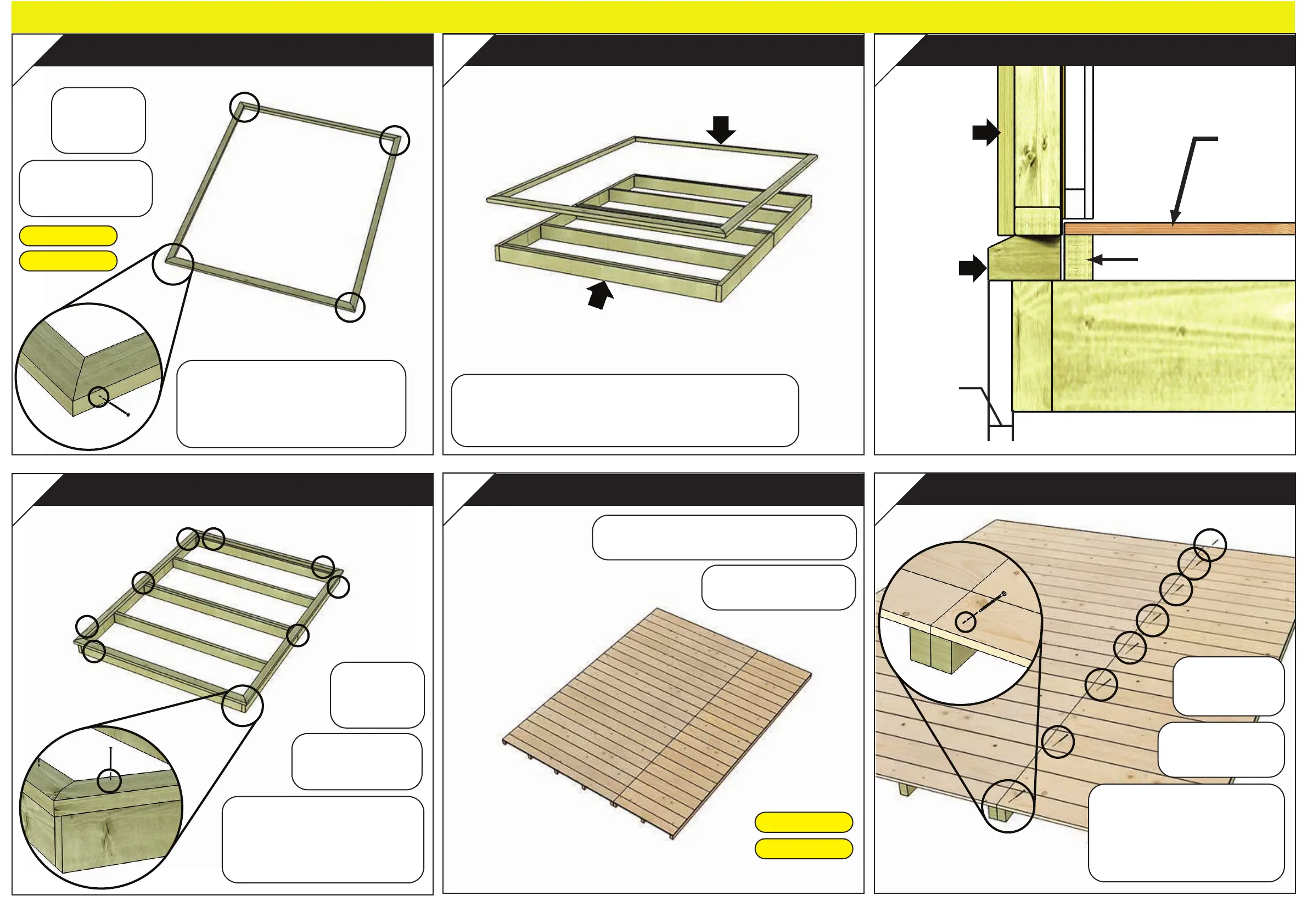

Floor Section Stages
Plinth
Base Module
Position the plinth into the top of
pre-assembled base module
Floor Stages
Floor Sections Diagram
Wall
Panel
Plinth
Gap
Base Module
Side View
Floor
Boards
Floor Joist
Side
Front
Back
Lay and fix the Plinth
lengths together at
the corner
Pilot drill holes
before fixing
Floor Stages
4 70mm
Screws
ID: 15906
ID: 18685
Fix the Floors together
Floor Stages
Side
Front
Back
11mm Floor
assembly shown
ID: PT18173
ID: PT18181
50mm
Screws
Floor Stages
Fix the Floors with
screws in angled
position
Back
Side
Pilot drill holes
before fixing
Fix and secure the
plinth and base
module together
Side
Front
Back
Floor Stages
Pilot drill holes
before fixing
70mm
Screws
10
13
14 15
11 12
