Project Timber Hobbyist - Page 10

50mm
Screws
Pilot drill holes
before fixing

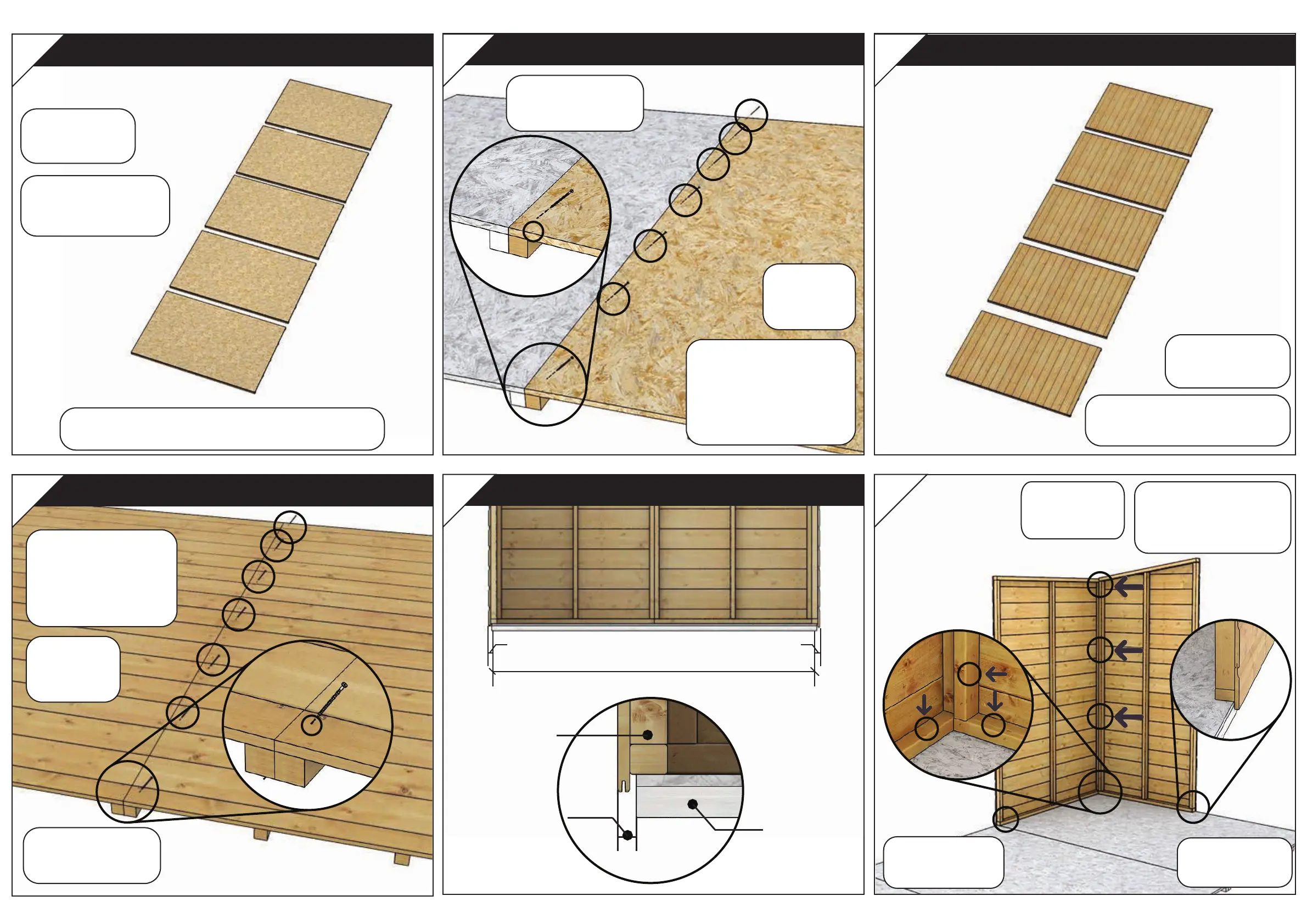

OSB Floor Stages
Fix the floors
together, with
screws in angled
positions.
Back
Front
Tongue and Groove Floor option
20x6 Floor
panels shown
Align the tongue and
groove floor panels
Side
Front
Back
OSB Floor Stages
20x6 Floor
assembly
Lay and align
the floors
*All Garden Buildings must be built on level,
flat base to be erected correctly.
Side
Front
Back
18mm
Wall Panel
Floor
Panel
Side View
1812mm
18mm 18mm
Side View
Front
Back
Wall Panels and Floor Panels Position
50mm
Screws
Side
Pilot drill holes
before fixing
Fix the panels
to the floor
Fix the back panel
and side gable
together.
50mm
Screws
Pilot drill holes
before fixing
Tongue and Groove Floor option
Fix the floors
together, with
screws in angled
positions.
Back
Front
1
4
5 6
2 3
