Project Timber Hobbyist - Page 12

50mm
Screws
Front

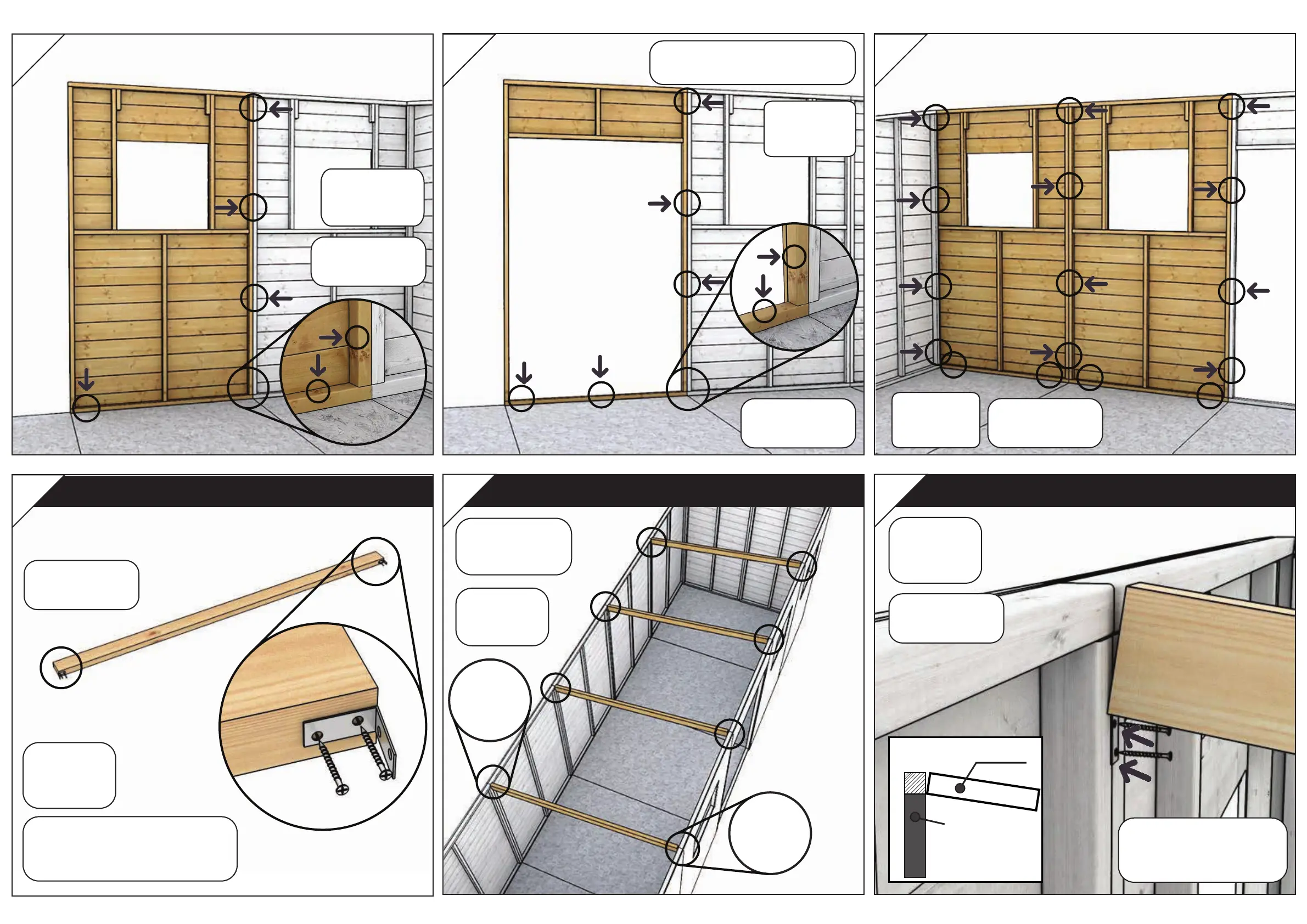

Fix the door panel
Pilot drill holes
before fixing
50mm
Screws
Front
Pilot drill holes
before fixing
50mm
Screws
Front
Pilot drill holes
before fixing
Purlin fixing
Fit and fix
the purlins.
Front
Back
30mm
Screws
See
L-bracket
fixing
detail
See
L-bracket
fixing
detail
Purlin fixing
Position and fix in
place the purlin to the
wall panels.
Front
30mm
Screws
Pilot drill holes
before fixing
Front
Panel
Purlin
Purlin fixing
Fix the L-Bracket
on each end of purlin.
30mm
Screws
Pilot drill holes
before fixing
13
16
17 18
14 15
