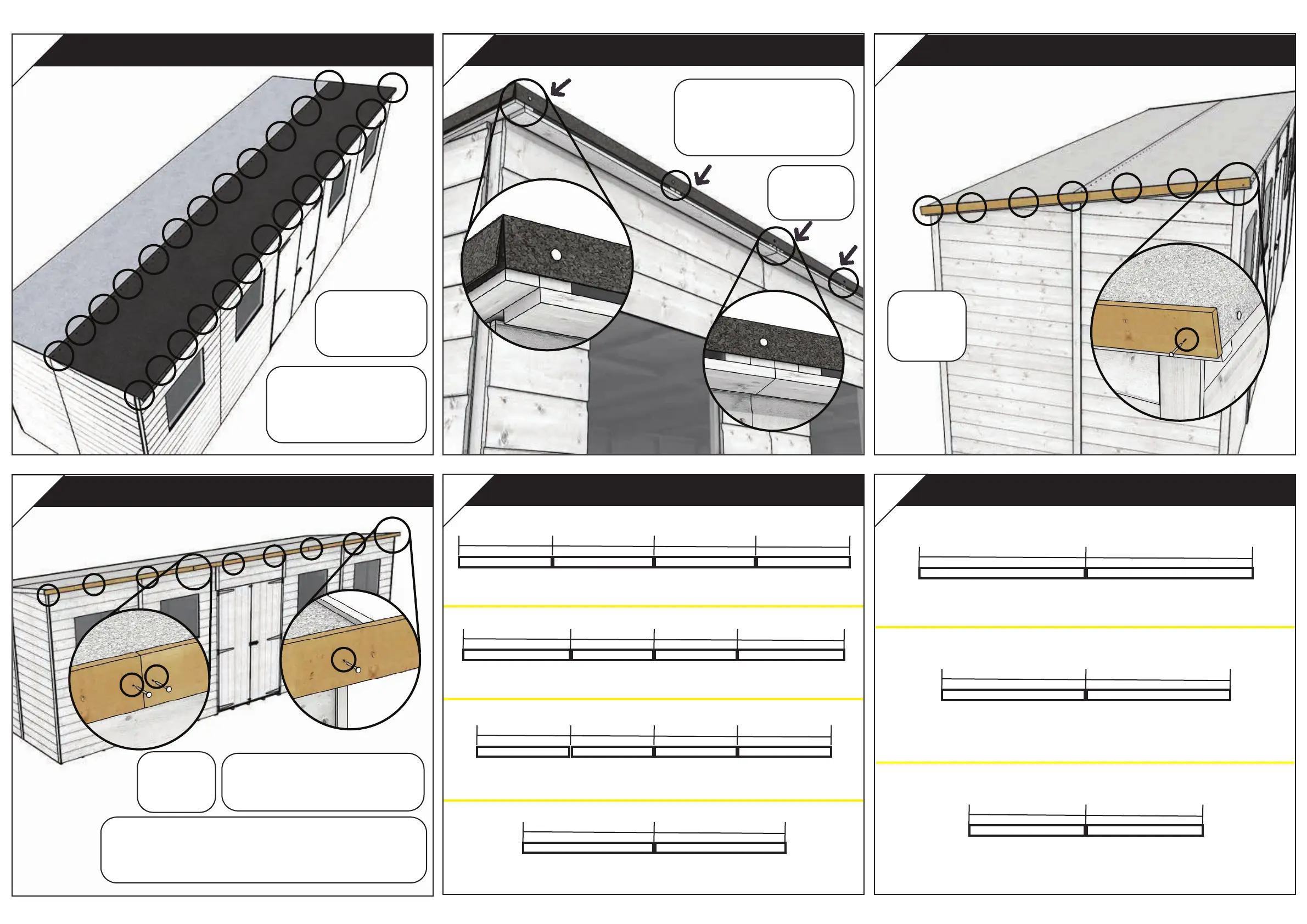

Roof Felt fittings for TG Roof
T10 Felt
Tacks
On the front the
felt tacks tack into
the roof purlins
Side Fascia fixing
Side Fascia Board
60mm x 11mm x 2000mm (2)
N30
Nails
Roof Felt fittings
T10 Felt
Tacks
1
2
The felt overlaps
over the top of the
previous piece
Front Fascia (20ft Wide Building)
Front Fascia (18ft Wide Building)
Front Fascia (16ft Wide Building)
Front Fascia (14ft Wide Building)
1240mm 1240mm1760mm 1760mm
1530mm 1530mm
1170mm
1170mm
1240mm 1240mm
1170mm
1170mm
2115mm 2115mm
Front Fascia Length Diagram
Front Fascia (12ft Wide Building)
Front Fascia (10ft Wide Building)
Front Fascia (8ft Wide Building)
1822mm
1822mm
1530mm
1530mm
1235mm 1235mm
Front Fascia Length Diagram
Front Fascia fixing
Front fascias on 14, 12, 10 and 8
buildings will be joint in centre
The fascias are fixed
to the roof purlins
30mm
Nails
