5
Wiring Details:
Orange (2 wires) – to Breakaway Switch (no polarity on the wires)
Red – to trailer brake lights (+ terminal)
Blue – to trailer electric brakes (+ terminal)
Ground Ring Terminal – to the chassis of the trailer
Black with White Stripe – to motor home/caravan 12V house battery (+ terminal)
if available
Black – to 12V supply from the trailer connector
Purple – to battery monitor at the vehicle (+ terminal)
WIRING INSTRUCTIONS
1. Disconnect the trailer connector from the vehicle and any internal battery the
caravan/ trailer has before wiring.
2. Do not connect internal Breakaway battery during wiring of the kit.
3. Connect the orange wires of the kit to the Breakaway Switch. There is no polarity
on the wires.
4. Splice the red wire of the kit to the trailer brake lights.
5. Splice the blue wire of the kit to the trailer electric brakes.
6. Connect the purple wire of the kit to the battery monitor.
7. Splice the black wire with white stripe of the kit to the caravan 12V system if
available (not necessary if not available).
8. Splice the black wire of the kit to the 12V supply from the trailer connector.
9. Connect the ground ring terminal to the chassis of the trailer.
10. Connect the Sure Brake Breakaway Kit battery by attaching the red wire inside the kit
to the Positive (+) terminal of the battery and the black wire to the negative (-)
terminal of the battery.
11. Test unit by pulling firmly on coiled cable of breakaway switch. The battery will
activate the trailer brakes and brake lights. (Note: Do not use this kit as a parking
brake.) The battery should be charged and tested prior to each trailer outing.
Caution: Do not attach the Breakaway Switch cable to mounting hooks,
trailer safety chains or the trailer hitch ball.
Caution: Disconnect the trailer connector from the tow vehicle and any
internal house battery before replacing Breakaway Kit battery.

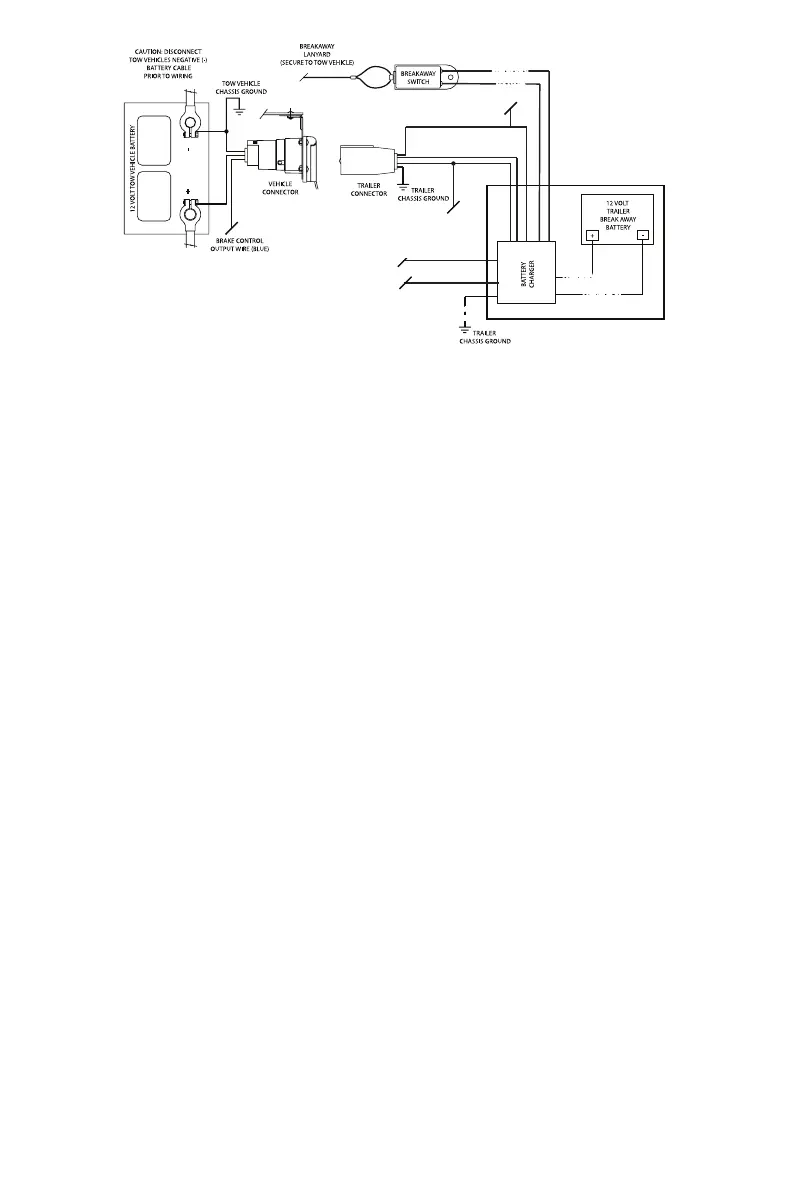

12V+ (RED)12V+ (RED)
12V- (BLACK)12V- (BLACK)
BREAKAWAY
SWITCH
(ORANGE)
BREAKAWAY
SWITCH
(ORANGE)
BREAKAWAY KIT AND
BATTERY CHARGER
TRAILER BRAKES
(BLUE)
TRAILER BRAKES
(BLUE)
12V+ INPUT (BLACK)
12V+ INPUT (BLACK)
GROUND
(WHITE)
GROUND
(WHITE)
BRAKE LIGHTS
(RED)
BRAKE LIGHTS
(RED)
BATTERY MONITOR
(PURPLE)
BATTERY MONITOR
(PURPLE)
CARAVAN
BATTERY INPUT
(BLACK W/ WHITE STRIPE
OPTIONAL)
