Burner Electrode check With the assistance of another person,
perform this Electrode Check before proceeding.
This test will ensure that the Spark Electrode Tips are properly positioned so your grill lights
easily and properly.
AA Battery may be installed back-wards.
Electric wires may be loose. Inspect the Ignitor
Junction Box found behind the Control Panel
and reconnect any loose wires.
-
-
Spark Electrode Tip
Spark Receiver
3/16"
Spark Gap
Gas Collector Box
Be sure all Control Knobs are se
t to "OFF
".
Open the
Grill
Lid.
Have your assistant stand to the right of the grill and look toward the front of the
grill bowl. Never put your face inside the Grill Head.
Press the Ignitor Cap. You should hear a "clicking" sound. Your assistant should see a
blue spark within each Gas Collector Box.
Ifnospark, check the following situation:
Press the Ignitor Cap. You should hear a "clicking"
sound. Look for spark between elec-trode tip and
spark receiver tip.
If you don't see a spark from the Infrared Burner
Electrode or Rotisserie Burner, adjust the gap
between the electrode tip and spark receiver tip to
3/16".
Spark Electrode Ti
p
Spark Receiver
Spark Gap 3/16"
8
Rotisserie Burner Electrode Check
Step 5：
6

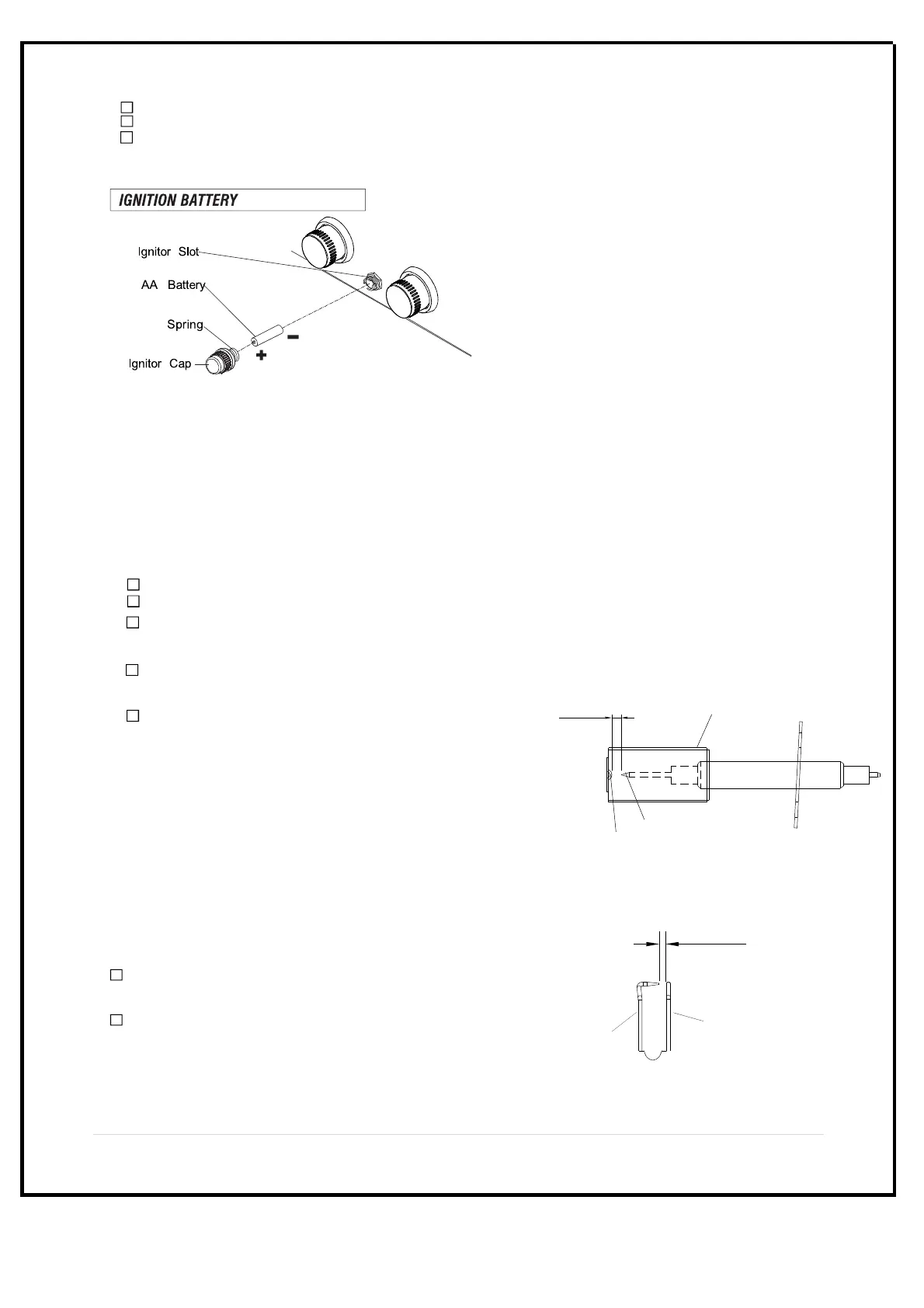

Install Ignitor Battery
Remove Ignitor Cap from Control Panel.
Place supplied AA battery into the Ignitor Slot with positive pole facing you.
Position the Cap and Spring over the AA battery and tighten onto Control Panel.
Step 4：
Step 6：
To Next Page
