Prokan MAXIM 4B - Assembly Instructions

GT04-RBI01-LP
9 | P a ge
2
2
Phillips Head Screw
1/4" x 3/8"
Qty. 2
Phillips Head Screw 3/16" x 3/8"
Qty. 4
2
1

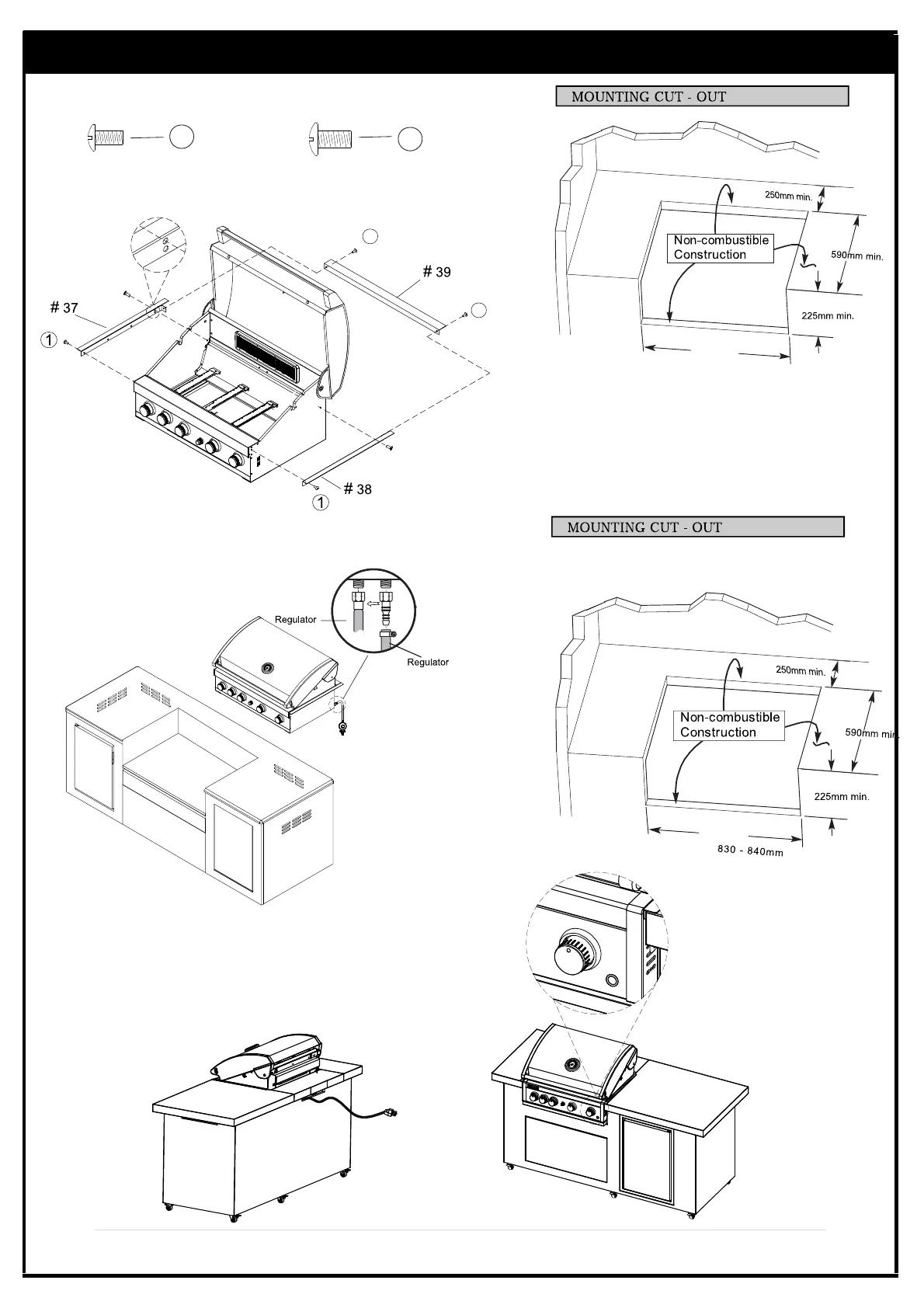

ASSEMBLY INSTRUCTIONS
Step 1：Install the Trim brackets Left and Right & Rear
Step 2：Regulator and Install the grill onto the housing.
620-630mm
GT04-LP-S
ELITE G4I
Step 3：
Connect the power supply, and use the
switch on the control panel to turn on the lights.
