Serial Number: FA01M0E0G00 Version:00.00 Edition: 2006-6
Dishwasher Model: DWI 5212P
Page 7 / 19
system,heating system),as long as it does not exceed a temperature of 60º.
In this case,the wash cycle time will be shortened by about 15 minutes and the wash efficiency slightly
reduced.
The connection must be made to the hot water line following the same procedures as those for the connection
to the cold water line.

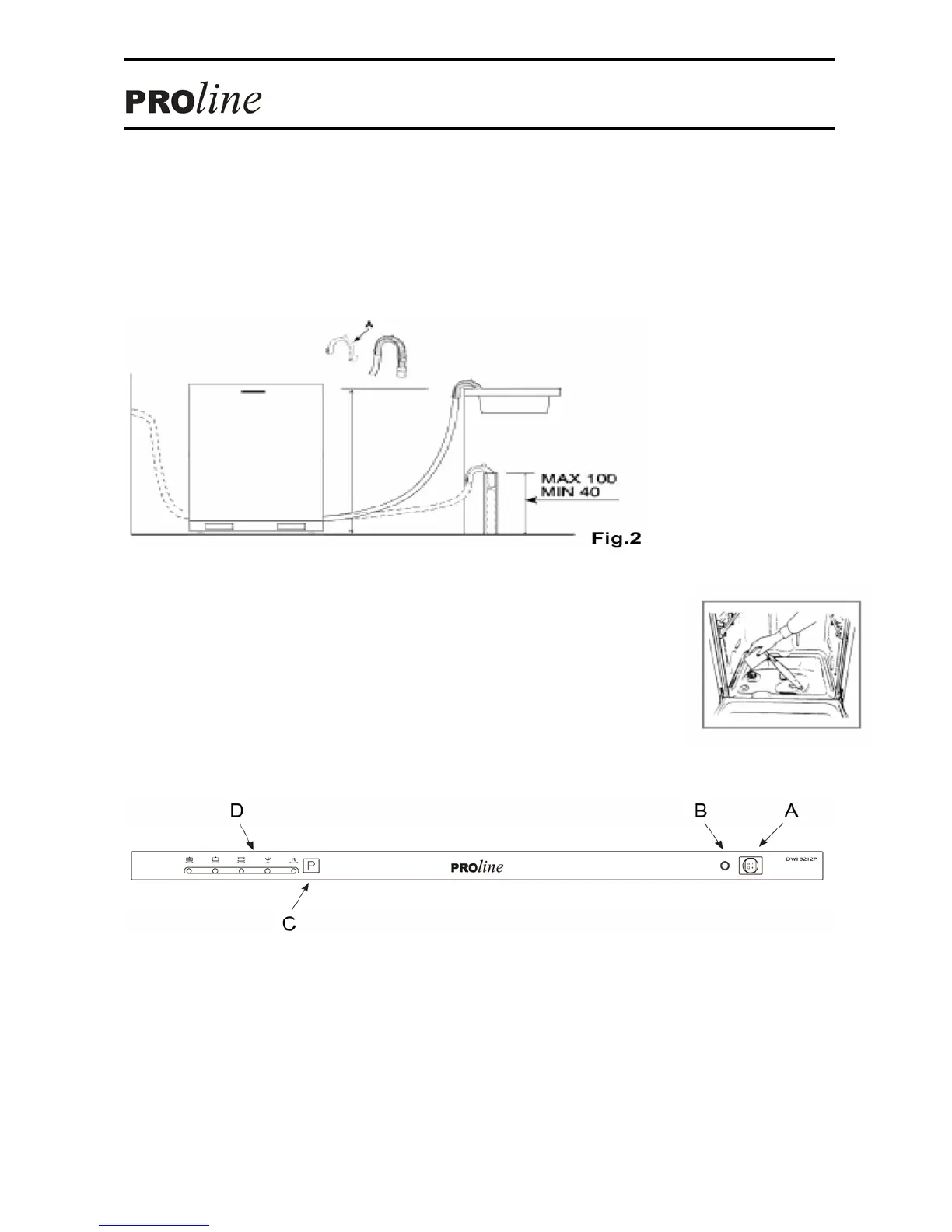

4.14 Drain Hose Connection
Insert the drain hose into a drain pipe with a minimum diameter of 4cm,or let it run into the sink, making sure
to avoid bending or crimping it. Use the special plastic support that comes with the appliance (see Fig.2). The
free end of the hose must be at a height between 40 and 100 cm and must not be immersed in water.
4.15 Electrical Connection
After making sure that the voltage and frequency values for the current in the home
correspond to those on the rating plate (located on the stainless steel inner door of the
appliance) and that the electrical system is correct for the maximum voltage on the
rating plate, insert the plug into an electrical socket which is earthed properly (the
earthing of the appliance is a safety requirement mandated by law). If the electrical
socket to which the appliance must be connected is not appropriate for the plug,
replace the plug ,rather than using adpators or the like as they could cause
overheating and burns.
5.Parts and Functions
A.ON-OFF Button
B.ON-OFF Light
C. Cycle select button
D. Cycle indicator light
