WaterPressure
Forbestoperatingresults,incomingwaterpressureshouldbebetween0.04MPaand
1MPa.Incomingwatersupplyforthedishwasher
iscontrolledbya‘pressureswitch’,soif
thehouseholdwaterpressureislow,dishwasherfilltimewillincreaseormaynotoperate.
WARNING:Pleaseclosethehydrantafterusing.



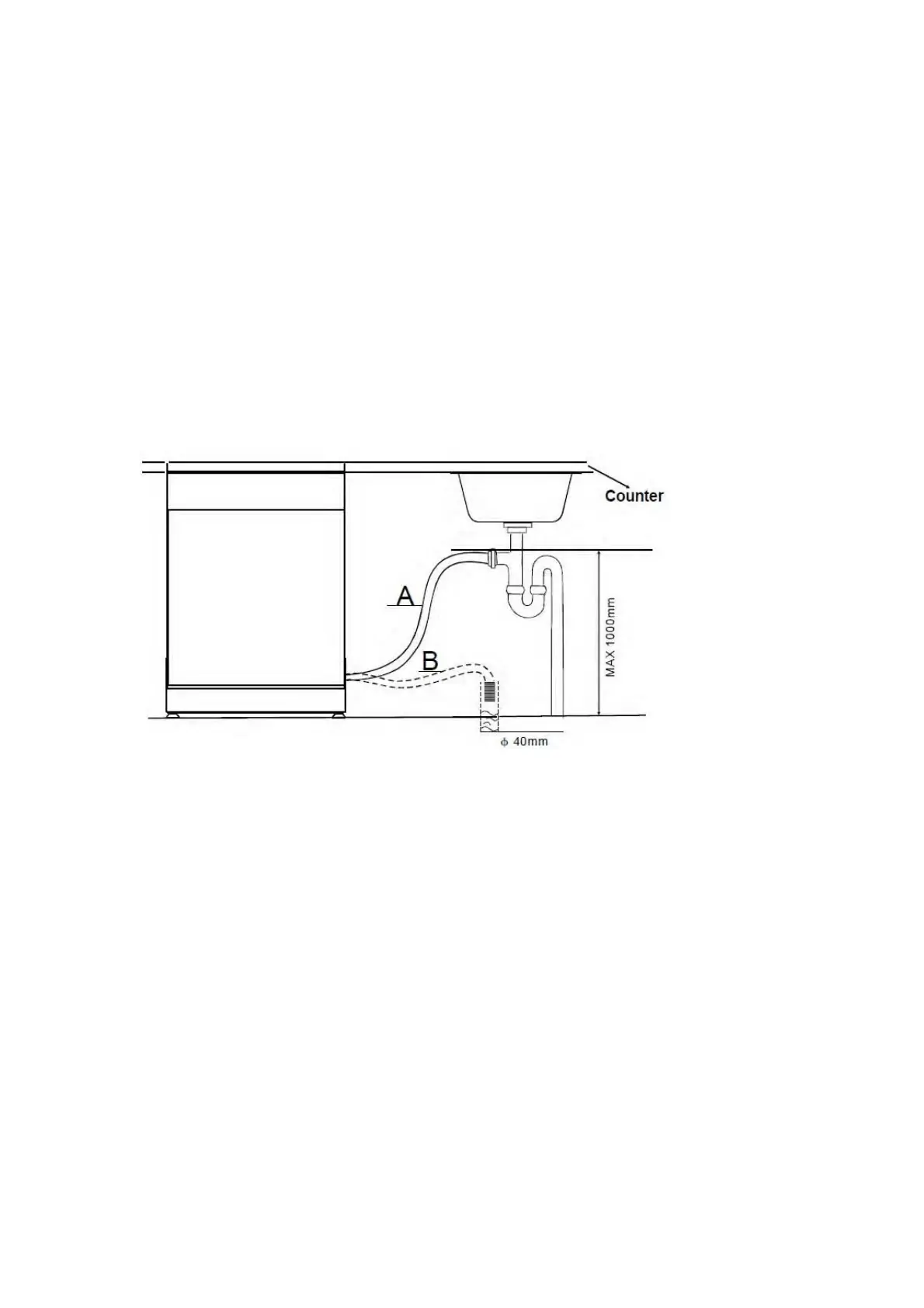

Connectingtothewateroutlet
Insertthedrainhoseintoadrainagepipeorstandpipe.
Theendofthehose
shou ldbedroppedintoadrainagepipe,themaximumheightofwhich
shouldbe1000mmabovethebaseofthedishwasher.Theendofthehosemustnotbe
immersedinwatertoavoidthebackflowofit.
Toallowforanairgaparoundtheendofthe
drainhose,thediameterofthestandpipe
shouldbeatleast40mm.


Ifleaksaredetected,immediatelyshutthewatersupplyandcheckthehoseconnections
fully.Re‐tightentheconnectionsifnecessary.

Ifforanyreasonyouareunabletostop theleakyourselfpleaseseekadvicefroma
qualifiedplumber.

Levelling
Placethedishwasheronaneven,stablesurface.
Itisveryimportantthatthedishwasherisperfectlylevelledinordertoavoidthe
dishwashertomalfunction.Youcanlevelthedishwasherbyadjustingthebasefeet.

OPERATION
Yourdishwashercleansbysprayingamixtureofcleanwateranddetergent(under
pressure)againstthesoiledsurfaceofdishes.Thewaterispumpedthrougharotating
sprayarm,drainedthroughafilterremovingfoodandsoiledparticlesandpumpedback
throughthesprayarm.

Soiledwaterispumpedoutand
replacedwithcleanwaterattheendofeachcycle(the
numberoftimesdependsonthecyclebeingused).
7
