PREPARATIONS

1-6

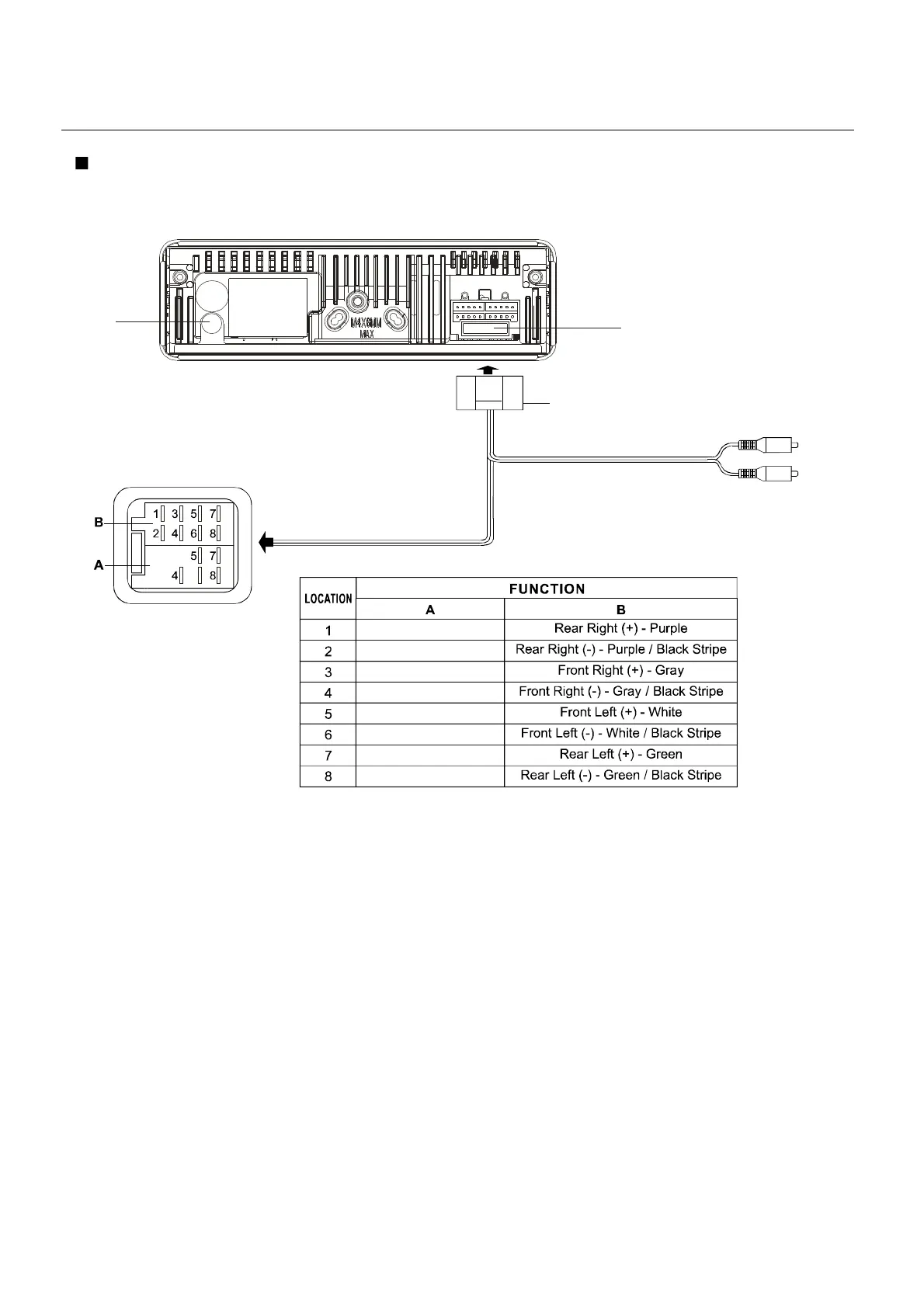

WiringDiagram

Antenna

Fuse15A

Connector

ISOconnector

Battery12V(+)/yellow

ACC+/red

AutoAntenna/blue

Ground/black

RearLine-out(Gray)

R(Red)

L(White)
