Advanced Test Products RG6-E

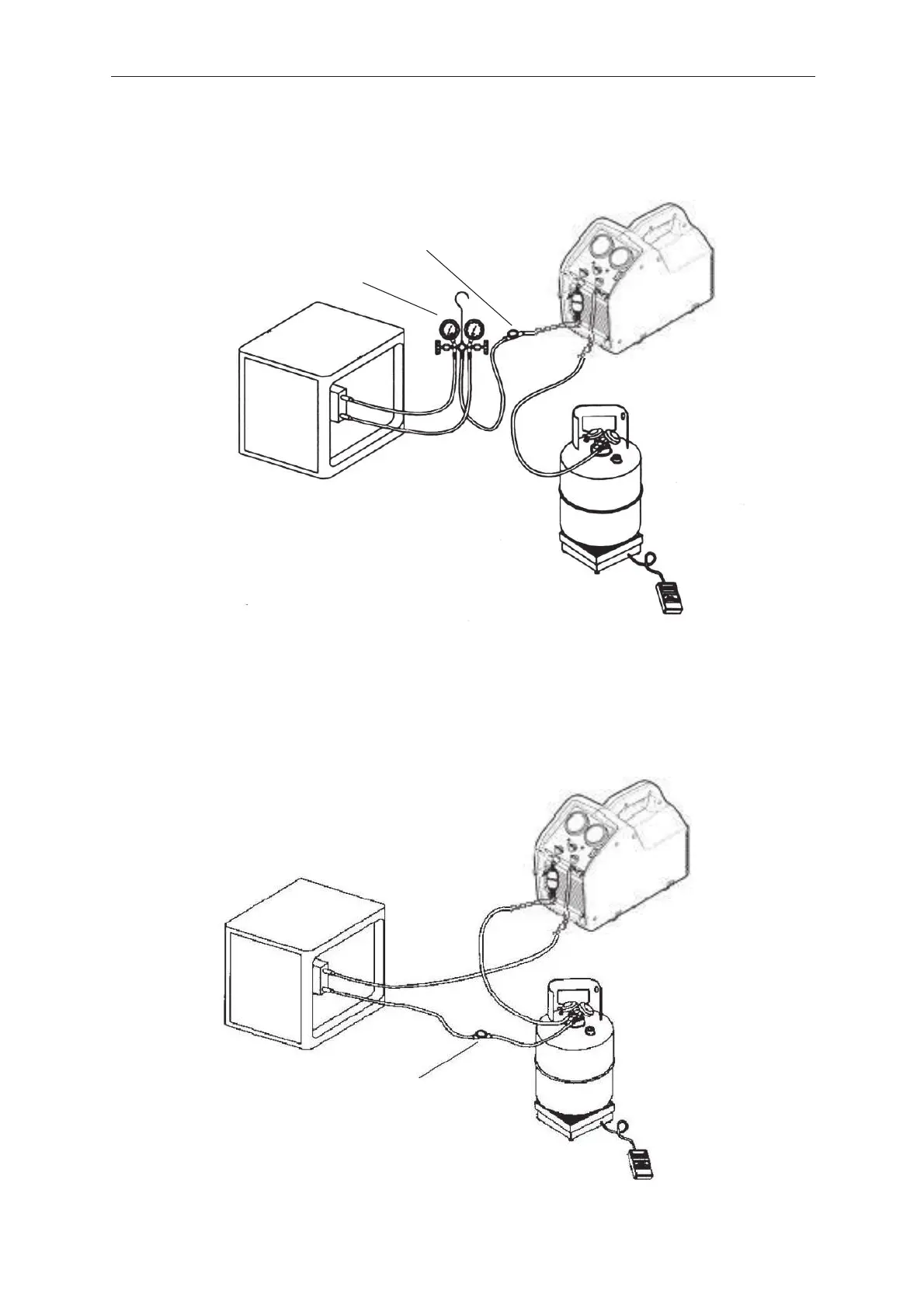

SET-UP DIAGRAM FOR REFRIGERANT RECOVERY
This method is the fastest method for recovering vapor refrigerant.
MANIFOLD GAUGE SET
(OPTIONAL) MOISTURE
SIGHT GLASS
INPUT
OUTPUT
LIQUID
A scale must be used
to avoid overfilling the
storage tank.
SYSTEM
BEING
SERVICED
VAPOR
LIQUID
SET-UP DIAGRAM FOR “PUSH/PULL” METHOD
Push pull only works with large systems where the liquid is readily accessible. Do not
use this method on systems that contain less than 7 Kilograms of refrigerant as it may
not work.
SYSTEM
BEING
SERVICED
LIQUID
VAPOR
VAPOR
LIQUID
OUTPUT
OPTIONAL MOISTURE
INDICATING SIGHT GLASS
INPUT
The sight glass is used to provide a method of
determining the moisture content and quality of a
system’s refrigerant.
A scale must be
used to avoid
overfilling the
storage tank.
8
