Promax RG6-E-230V - Page 13

Advanced Test Products RG6-E
Pos. Description Part No.
1 Plastic case half (L) 550495
Plastic case half (R) 550496
2 Mounting Bushings 550503
3 Mounting brackets SK-6021
4 Motor Kit (motor, relay,
capacitor, hardware) SK-6018
5 Compressor Assy. 568114-E
6 Fan Kit SK-6008
7 Gauge lens GA1000
8 Red knob 100124
9 Blue knob 100123
10 Black knob 100122
11 Condensor Kit SK-6014
12 Power Cord 135-200341-001
13 Front Panel Assy. SK-6019-E
(incl. switches, circuit breaker, hardware)
14 Filter Inlet Repl. Kit SK-6001
15 Rubber Foot (each) 550502
16 Low Side Gauge SK-6003
17 High Side Gauge SK-6022
18 Hi Pressure Switch 549259
19 Lo Pressure switch 113726

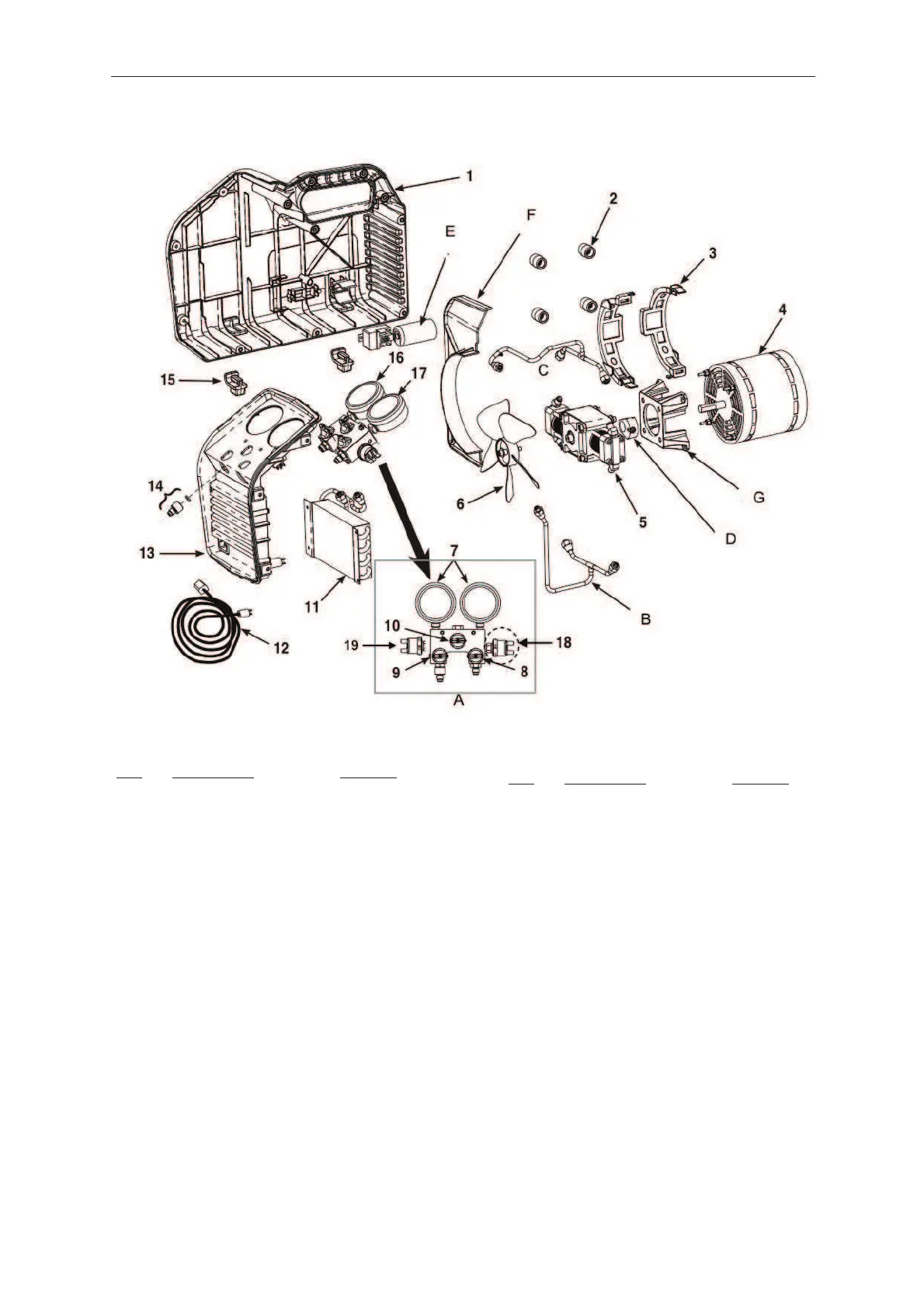

PARTS LIST RG6-E
11
Pos. Description Part No.
A Complete Manifold Assy. SK-6016-E
(manifold, fittings, valves, knobs, pressure
sensors and gauges)
B Lower Tubing Assy. 550076
C Upper Tubing Assy. 110-201490-001
D Coupler 551917-KIT
E Run Capacitor (30mF) 556593
Start Capacitor (177mF) 553344
F Plastic Insert, Right 550501
Plastic Insert, Left 550500
G Molded Compressor 549758
Mount
ADDITIONAL PARTS/KITS
Compressor Rebuild Kit SK-6006
Piston Seal Rebuild Kit SK-6015
Valve Replacement Kit SK-6007
Filter/Drier 100343
Filter hose 100345
