Page 19
Dulcodes UV-Desinfektionsanlage
1 Knurled nut
2 Retaining fixture for protective tube
3 Bleeder screw with O-ring
4 O-ring
5 UV-C sensor
6 Water drain plug with O-ring
7 Water inlet
8 UV lamp
9 Lamp protective tube
10 Radiation chamber
11 Mounting elements
12 Water outlet
13 O-ring
14 Connector
15 Lamp cover
16 Teflon ring
17 Cable
18 Circular plug

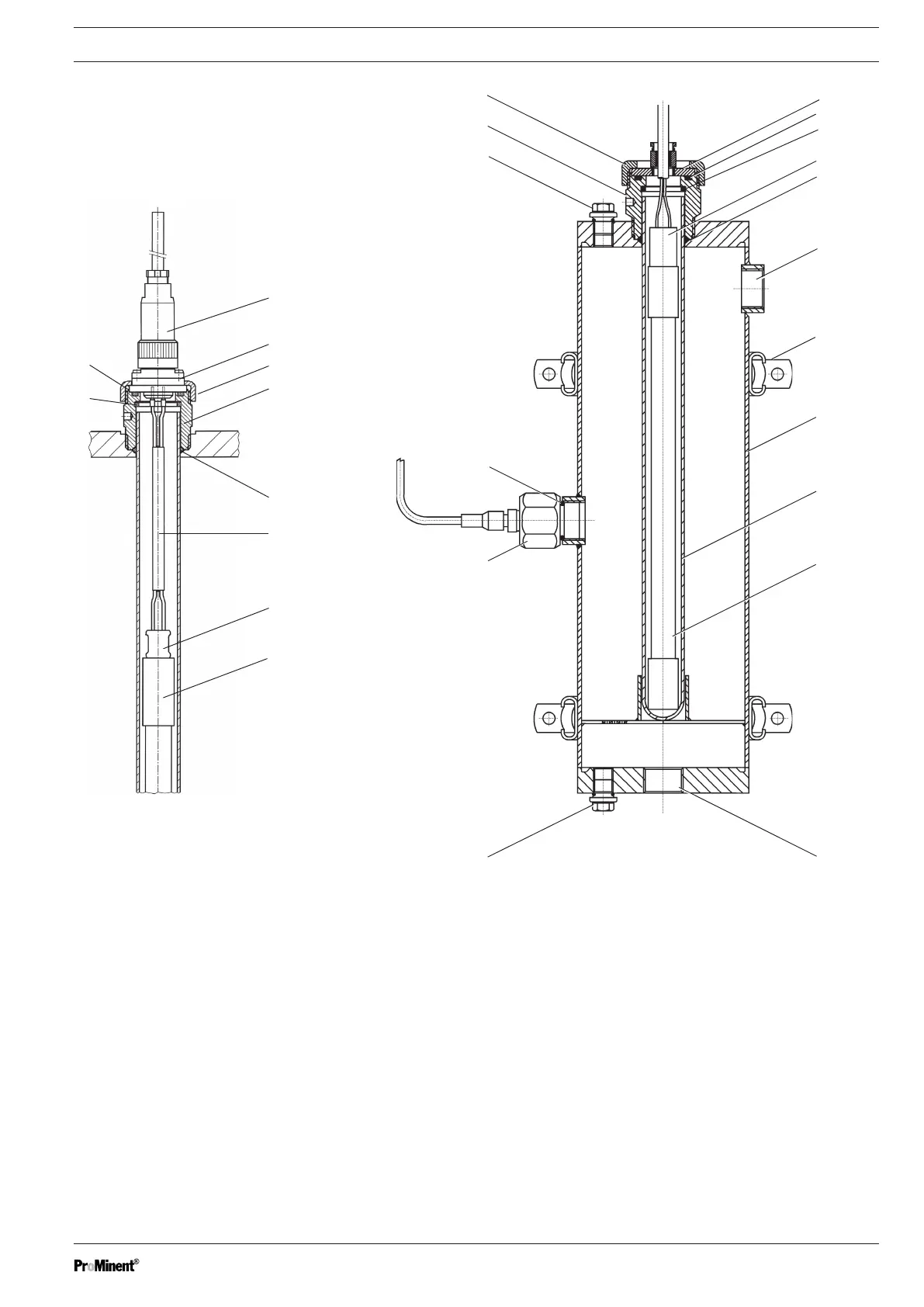

Fig. 2: Design of radiation chamber
Control
15
13
16
14
13
12
11
10
9
8
7
1
2
3
4
5
6
13
16
18
15
1
13
17
14
8
2
Lamp connection in systems that are equipped with a
connector on the lamp cover.
BA_DS_009_10_06_GB.p65 20.10.2006, 7:31 Uhr19
