Schritt 2: Montieren des VTrak in einem Rack
53

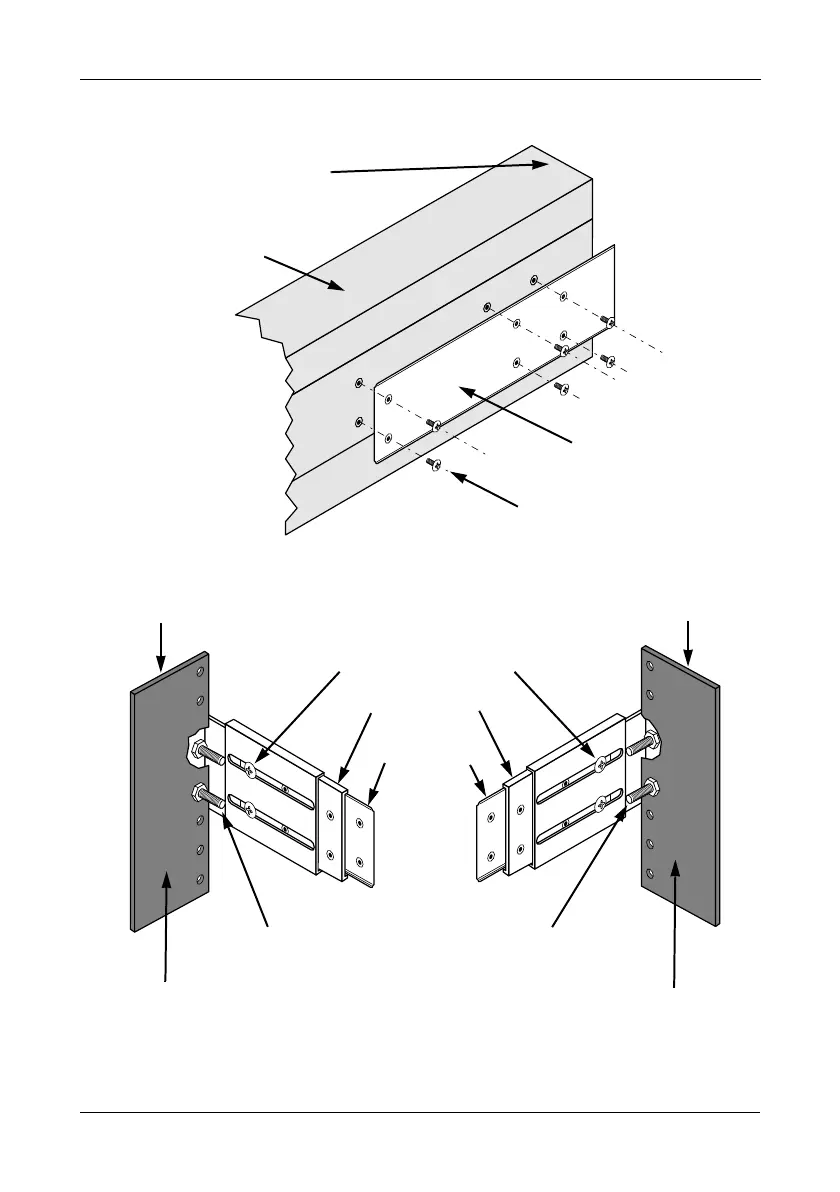

Abbildung 4. Gleitplatte (Installation)
Abbildung 5. Montageschiene (Installation)
Gleitplatte
VTrak E310f/s
Schrauben (6 auf
jeder Seite)
Rückseite (Anschlussseite)
des Subsystems
Pfosteninnenseite
Vorderer Rackpfosten
Schienenbefestigungs-
schraube (nicht mitgeliefert)
Schieneneinstellschraube
Montageschiene
Schienenbefestigungs-
schraube (nicht mitgeliefert)
Pfosteninnenseite
Hinterer Rackpfosten
Gleitplatte
