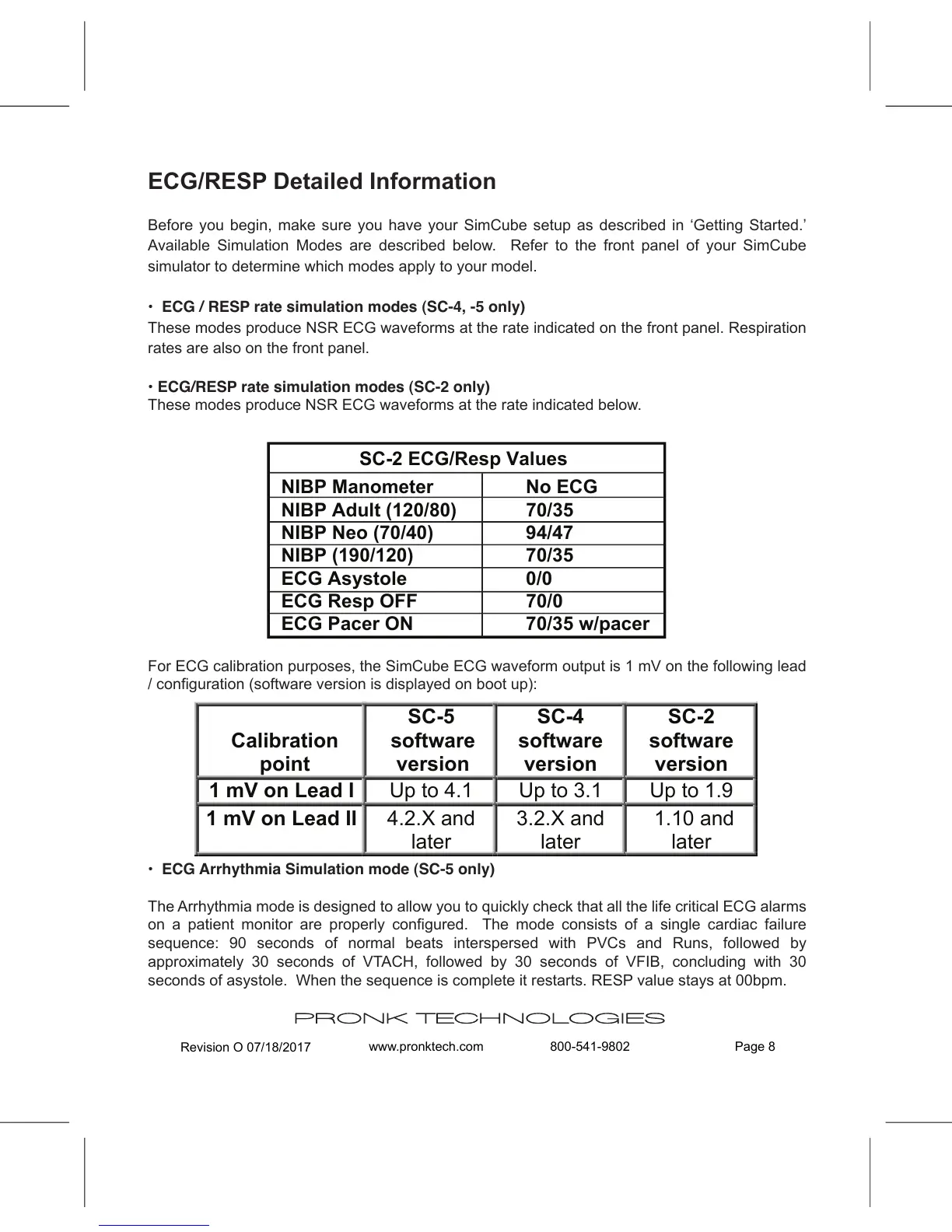

ECG/RESP Detailed Information
Before you begin, make sure you have your SimCube setup as described in ‘Getting Started.’
Available Simulation Modes are described below. Refer to the front panel of your SimCube
simulator to determine which modes apply to your model.
• ECG / RESP rate simulation modes (SC-4, -5 only)
These modes produce NSR ECG waveforms at the rate indicated on the front panel. Respiration
rates are also on the front panel.
• ECG/RESP rate simulation modes (SC-2 only)
These modes produce NSR ECG waveforms at the rate indicated below.
For ECG calibration purposes, the SimCube ECG waveform output is 1 mV on the following lead
/ configuration (software version is displayed on boot up):
• ECG Arrhythmia Simulation mode (SC-5 only)
The Arrhythmia mode is designed to allow you to quickly check that all the life critical ECG alarms
on a patient monitor are properly configured. The mode consists of a single cardiac failure
sequence: 90 seconds of normal beats interspersed with PVCs and Runs, followed by
approximately 30 seconds of VTACH, followed by 30 seconds of VFIB, concluding with 30
seconds of asystole. When the sequence is complete it restarts. RESP value stays at 00bpm.
Revision O 07/18/2017
www.pronktech.com 800-541-9802 Page 8
PRONK TECHNOLOGIES
NIBP Manometer No ECG
NIBP Adult (120/80) 70/35
NIBP Neo (70/40) 94/47
NIBP (190/120) 70/35
ECG Asystole 0/0
ECG Resp OFF 70/0
ECG Pacer ON 70/35 w/pacer
SC-2 ECG/Resp Values
Calibration
point
SC-5
software
version
SC-4
software
version
SC-2
software
version
1 mV on Lead I Up to 4.1 Up to 3.1 Up to 1.9
1 mV on Lead II 4.2.X and
later
3.2.X and
later
1.10 and
later
To Next Page
