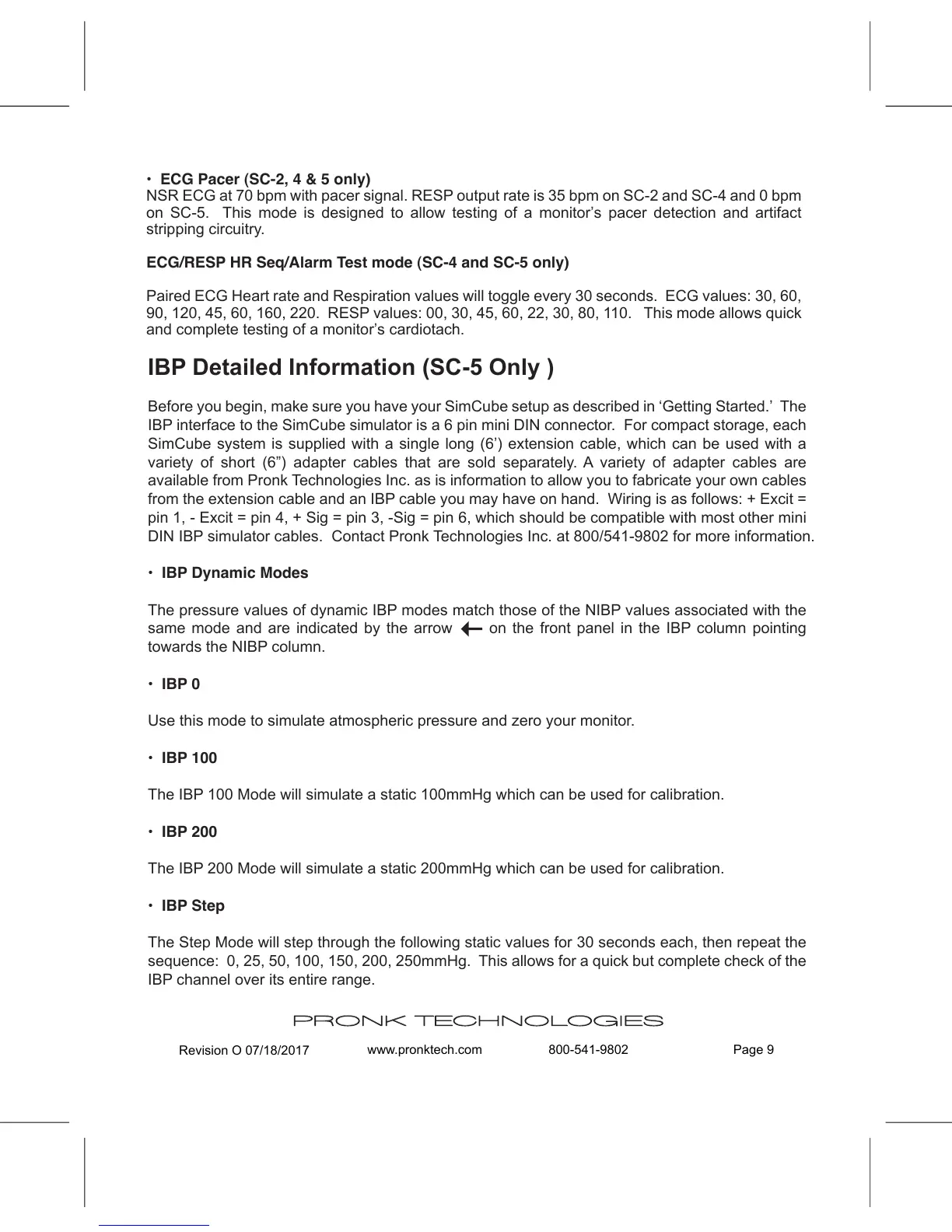

IBP Detailed Information (SC-5 Only )
Before you begin, make sure you have your SimCube setup as described in ‘Getting Started.’ The
IBP interface to the SimCube simulator is a 6 pin mini DIN connector. For compact storage, each
SimCube system is supplied with a single long (6’) extension cable, which can be used with a
variety of short (6”) adapter cables that are sold separately. A variety of adapter cables are
available from Pronk Technologies Inc. as is information to allow you to fabricate your own cables
from the extension cable and an IBP cable you may have on hand. Wiring is as follows: + Excit =
pin 1, - Excit = pin 4, + Sig = pin 3, -Sig = pin 6, which should be compatible with most other mini
DIN IBP simulator cables. Contact Pronk Technologies Inc. at 800/541-9802 for more information.
• IBP Dynamic Modes
The pressure values of dynamic IBP modes match those of the NIBP values associated with the
same mode and are indicated by the arrow on the front panel in the IBP column pointing
towards the NIBP column.
• IBP 0
Use this mode to simulate atmospheric pressure and zero your monitor.
• IBP 100
The IBP 100 Mode will simulate a static 100mmHg which can be used for calibration.
• IBP 200
The IBP 200 Mode will simulate a static 200mmHg which can be used for calibration.
• IBP Step
The Step Mode will step through the following static values for 30 seconds each, then repeat the
sequence: 0, 25, 50, 100, 150, 200, 250mmHg. This allows for a quick but complete check of the
IBP channel over its entire range.
• ECG Pacer (SC-2, 4 & 5 only)
NSR ECG at 70 bpm with pacer signal. RESP output rate is 35 bpm on SC-2 and SC-4 and 0 bpm
on SC-5. This mode is designed to allow testing of a monitor’s pacer detection and artifact
stripping circuitry.
ECG/RESP HR Seq/Alarm Test mode (SC-4 and SC-5 only)
Paired ECG Heart rate and Respiration values will toggle every 30 seconds. ECG values: 30, 60,
90, 120, 45, 60, 160, 220. RESP values: 00, 30, 45, 60, 22, 30, 80, 110. This mode allows quick
and complete testing of a monitor’s cardiotach.
