This document describes the PROSCAN Smart Watch, Model No.: PBTW188, a device manufactured and sold under the responsibility of CURTIS INTERNATIONAL LTD. The PROSCAN brand and logo are trademarks used under license by CURTIS INTERNATIONAL LTD.

Safety Information and Warnings:

The information in this document is subject to change without notice. Users should charge the watch for at least 2 hours prior to initial use, using an accredited charger and cable. The "Search functions" feature cannot be used if the watch is disconnected by a significant distance. If the watch disconnects during use, especially for over 5 minutes, the user must manually re-connect the APP via Bluetooth. It is crucial to note that the measurement results provided by this product are for reference only and are not intended for medical use or as a basis for diagnosis. Users should always follow a doctor's instructions and should not self-diagnose or treat conditions based on the measurements taken by this product.

Notes:

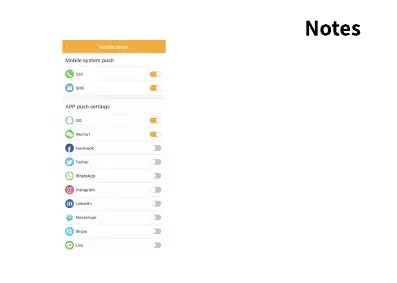

The watch is sweat-proof only, not waterproof. To conserve battery life, users are advised to turn off notifications from the QRunning app.

Appearance and Components:

The smart watch features a power on/off button which also serves as a screen roll button. It includes a microphone (MIC), a button to switch between wallpaper and sport modes, and a touch screen for interaction. On the underside, it has a speaker and a heart rate sensor.

Wireless Charging & Power On:

To power on the watch, long press the power button for 3 seconds. The watch supports wireless charging, and users are instructed to use a charger made by the manufacturer.

How to Wear:

The watch should be worn on the wrist with suitable tightness. The watch band is removable.

APP Installation & Connecting:

The companion application for the smart watch is named "QRunning." Users can download and install the app on their mobile phone by scanning the provided QR code. The app is compatible with Android 5.0 and above, and iOS 9.0 and above, requiring Bluetooth 4.0 support.

For initial setup, users should turn on Bluetooth on their phone, open the QRunning app, tap "Device," and then "Connect device." The watch, identified as 'PBTW188,' will appear for connection. A "Bluetooth Pairing Request" dialog will pop up on the mobile phone; users should tap 'Pair' to connect. This will synchronize the time and date with the Bluetooth devices. Additionally, a "Prompt" dialog will appear; users should tap "ok" and then navigate to their mobile phone's Bluetooth settings to find and connect to 'PBTW188_Audio-XXXX.' This secondary connection enables Bluetooth phone calls and music playback through the watch.

Operations:

Buttons:

Button 1 (Power on/off and screen roll button):
- Long press for 3 seconds to Power ON/Power OFF the watch.
- On the wallpaper interface, quickly click twice to go to the user interface.
- Short press to turn on/off the screen.
- A short press of button 1 will wake up a dark screen.
- Rolling button 1 can change the wallpaper or user interface.
Button 2 (Switch between wallpaper and sport modes):
- Short press to switch between wallpaper and sport modes.

At Wallpaper Interface:

Swipe up: Displays mobile notifications.
Swipe down: Goes to the left shortcut menu.
Tap "Heart" icon: Opens the dual Bluetooth call function.
Tap "Phone" icon: Accesses phone functions.
Tap "QR Code" icon: Downloads the QRunning APP.
Tap "UI Style" icon: Changes the UI style.
Tap "Brightness" icon: Adjusts watch brightness.
Tap "SRI" icon: Goes to the SRI function.
Swipe left: Navigates through steps, heart rate, blood pressure, blood oxygen, sleep monitor, and weather.
Swipe right: Goes to the shortcut interface.

Main Functions and Features:

Steps: Tapping the Steps icon initiates logging of daily steps, calories burned, and distance. If connected to the app, daily data is logged. Swiping right exits the Steps screen.
Heart Rate: Tapping the Heart Rate icon starts recording the user's heart rate.
SPO2H (Blood Oxygen): Tapping the SPO2H icon starts recording the user's blood oxygen levels.
Blood Pressure (BP): Tapping the Blood Pressure icon starts recording the user's blood pressure.
Sport: Tapping the Sport icon provides various modes including walking, running, cycling, hiking, skipping, basketball, badminton, and pingpong. Tapping each mode allows users to test the mode's time, calories burned, and heart rate.
Sleep: Tapping the Sleep icon starts recording deep and shallow sleep patterns.
Message: After connecting the watch to the mobile phone via Bluetooth, tapping the Message icon allows users to check synchronized messages from their mobile phone.
Phone: After connecting the watch to the mobile phone via Bluetooth, tapping the Phone icon allows users to check synchronized contacts, call records, and make Bluetooth phone calls directly from the watch.
Style: Tapping the Style icon changes the watch display mode to cellular, list, or 4 grids.
Find: After connecting the watch to the mobile phone via Bluetooth, tapping "Find Phone" will make the phone beep, helping to locate it. Swiping right on the watch face exits this function.
Camera: After connecting the watch to the mobile phone via Bluetooth, tapping the Camera icon opens the phone's camera. Tapping the camera icon on the watch can control the phone to take pictures.
Music: After connecting the watch to the mobile phone via Bluetooth, tapping the Music icon opens the phone's music player app. Users can control music playback (last/next track, play/pause) from the watch. Swiping right on the watch face exits this function.
Timer: Tapping the Timer icon measures time.
Weather: After connecting the watch to the mobile phone via Bluetooth, tapping the Weather icon displays the current time and weather conditions. Swiping right on the watch face exits this function.
APP: Tapping the APP icon displays a QR code for downloading and installing the QRunning APP.
Setting: Tapping the Setting icon provides access to various functions such as "about," "language," "date/time," "brightness," "backlight," "vibration," "reset," and "shutdown." Users can check or set these functions as desired.

Attentions (Troubleshooting and Important Information):

Bluetooth Connection Issues:

If Bluetooth cannot be connected (failed to connect/reconnect or slow connection):

Confirm mobile phone compatibility (IOS 9.0 or Android 4.2 or above, with Bluetooth 4.0).
Be aware that signal interference can affect connection time. Ensure connection in an area free of magnetic fields or excessive Bluetooth device interference.
Turn off and then turn on the phone's Bluetooth.
Clear background applications on the phone or restart the phone.
Avoid connecting the phone to other similar products simultaneously.
Ensure the QRunning APP is running in the background; if not, connection cannot be maintained.

Cannot Find the Watch:

If the watch is not found by the mobile phone's Bluetooth radio:

Ensure the watch is powered on and activated.
Confirm it is not connected to other mobile phones.
Place the watch close to the mobile phone and search again.
If still invalid, turn off the mobile phone's Bluetooth for 20 seconds, then restart Bluetooth and search again.

Bluetooth Connection Always On / Data Storage:

The Bluetooth connection does not need to be always on. Exercise and sleep data are stored on the wristband.
When the watch and phone Bluetooth are successfully connected, data automatically uploads to the phone.
The watch's data storage is limited, typically storing about one week of Bluetooth data. When full, the earliest data is overwritten. Users should sync the watch to their phone regularly.
For incoming call and SMS reminder functions, Bluetooth must remain connected. Alarm reminders support offline functionality.

Charging Issues:

If the watch cannot be charged:

Confirm the charging stand's direction is correct and the charging clip is in good contact with the watch.
If the watch power is below 3.6V, there will be a precharge period.

Note: After plugging in the charger, it immediately enters the charging state. If there is no display, it may take 3-5 minutes to show the charging state.

Health Concerns:

Wearing the watch for a long time is not expected to cause harm to the human body. The equipment's radiation is far below the FCC standard of the United States and is considered negligible.

FCC Compliance:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses, and can radiate radio frequency energy. If not installed and used according to instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment causes harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2ATSTXG

90-Day Warranty:

This product is warranted to be free from defects in material and workmanship for a period of ninety (90) days from the date of original purchase. The exclusive remedy is repair or replacement of the product or component, at the manufacturer's option. The user is responsible for all costs associated with returning the product. If the product is no longer available, it will be replaced with a similar one of equal or greater value. The product must be rendered inoperable or returned before a replacement is sent. This warranty does not cover glass, filters, wear from normal use, use not in conformity with printed directions, or damage resulting from accident, alteration, abuse, or misuse. The warranty extends only to the original consumer purchaser or gift recipient. The original sales receipt is required as proof of purchase for a warranty claim. The warranty is void if the product is used for purposes other than single-family household use or subjected to voltage and waveform other than specified on the label (e.g., 120V~60Hz). All claims for special, incidental, and consequential damages caused by breach of express or implied warranty are excluded. All liability is limited to the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty grants specific legal rights, and users may have other legal rights that vary by location. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so these limitations may not apply. For faster service, users should locate the model, type, and serial numbers on their appliance.

Service and Support:

For service assistance and product information, contact CURTIS INTERNATIONAL LTD. at 1-800-968-9853. Address: 7045 BECKETT DRIVE, UNIT 15. MISSISSAUGA. ON, L5S2A3. Website: www.curtisint.com To make a warranty claim, do not return the product to the store. Email support2@curtiscs.com or call 1-800-968-9853. Proof of purchase is required for warranty service. When contacting support, please have the following information available: name, address, and telephone number; model number and serial number; a clear, detailed description of the problem; and proof of purchase including dealer or retailer name, address, and date of purchase.
