This document describes the Proscan PDVD1053D DVD player, a digital video medium under the MPEG II format, offering a variety of entertainment capabilities. It is designed for indoor use only and is manufactured and sold by Curtis International Ltd. Proscan is a registered trademark of Technicolor USA, used under license by Curtis International Ltd.

Function Description

The Proscan PDVD1053D is a compact disc player capable of playing various disc types, including DVD, CD-DA, MP3, Kodak Picture CD, CD-R, and CD-RW. It supports MPEG II video compression technology, providing excellent picture resolution of a minimum of 500 lines on screen. The player can output up to 8 language soundtracks, up to 9 views from different camera angles, and up to 32 language subtitles, provided the DVD disc itself supports these features.

The device features a front panel with a disc tray, an Open/Close key, Play/Pause key, Stop key, a remote control sensor, a Power switch key, and a Power Indicator. The rear panel includes a LEFT output jack, a Coaxial digital signal output, a Video output, a Component YUV (Y.Cr.Cb) output, and a RIGHT output jack.

The player operates within the worldwide agreed DVD Regional Code System, meaning it will only operate with discs corresponding to its regional code (Region 1 for this player, covering Canada and USA).

Usage Features

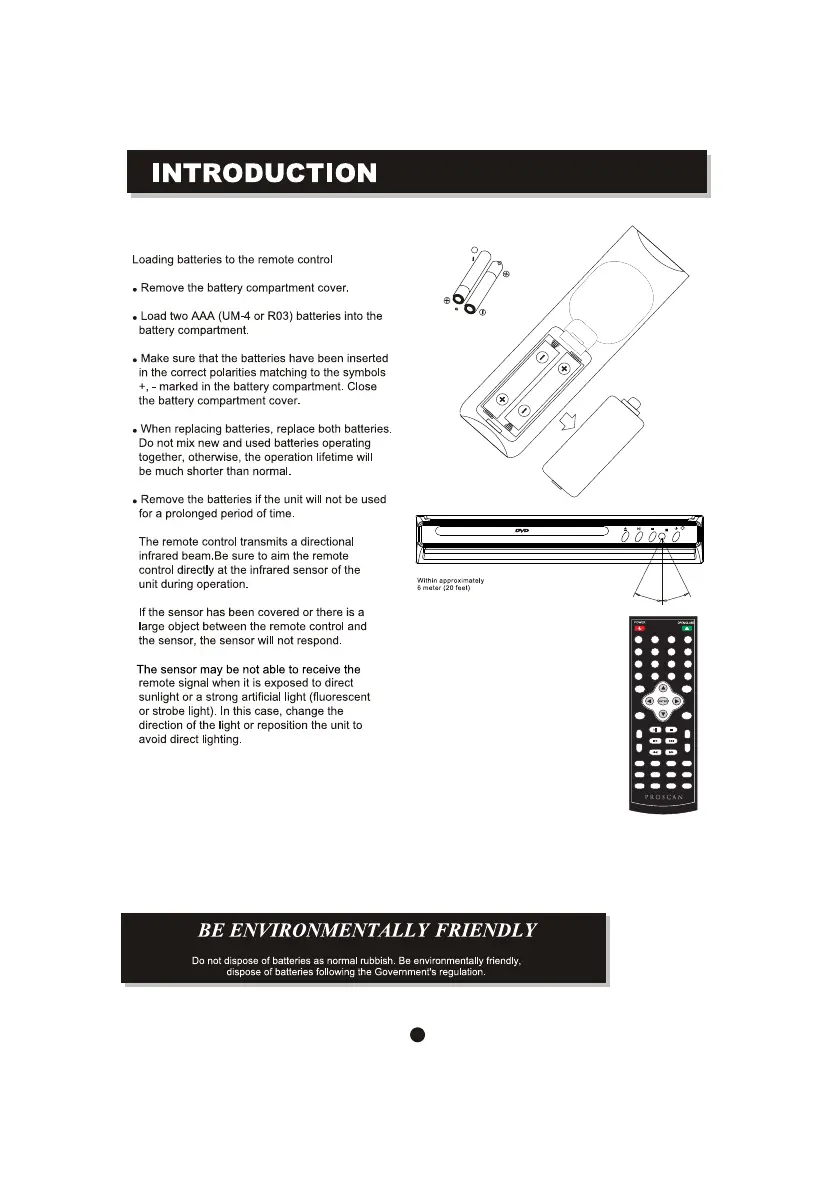

Remote Control Operation: The player is primarily controlled via a remote control, which transmits a directional infrared beam. It is crucial to aim the remote control directly at the infrared sensor on the unit during operation. Obstacles between the remote control and the sensor, or exposure to direct sunlight or strong artificial light, can interfere with signal reception.

Basic Playback Controls:

POWER: Stops the player and closes the power during playback.
OPEN/CLOSE: Opens or closes the disc tray.
TITLE: During DVD playback, displays the DVD title menu or plays the first title (subject to disc support).
MENU: During DVD playback, displays the disc menu of the current title (subject to disc support).
OSD (On-Screen Display): During VCD/DVD playback, displays the current time counter position.
PBC (Playback Control): During VCD/SVCD playback, selects PBC On or Off mode, used for navigating VCD/SVCD.
0-10 Keys: Used to input time, title, chapter, and track numbers. For CD, DVD, or VCD playback (with PBC off), these keys directly select a track. When a numeric item is displayed on screen, they select the desired entry.
SLOW: During AVI, DVD, VCD, or SVCD playback, initiates slow-motion playback at speeds of 1/2, 1/4, 1/8, and 1/16 normal speed. Press PLAY to resume normal playback.
PREV/NEXT: During AVI, DVD, CD, or VCD playback, plays the previous or next chapter, title, or track.
REPEAT: Changes the repeat mode. For VCD/CD, modes include repeat 1, repeat All, and Off. For AVI/DVD, modes include repeat chapter, repeat title, repeat all, and Off (PBC mode must be Off for VCD playback).
A-B: During playback, selects point A with the first press and point B with the second press, repeating the section between A and B. A third press cancels A-B repeat. Points A and B must be within the same track for AVI/CD/VCD/SVCD, and can be from different chapters for AVI/DVD.
REV/FWD: During AVI, DVD, CD, or VCD playback, plays in reverse or forward at speeds of 2, 4, 8, and 20 times normal speed. Press PLAY to resume normal playback.
RAN (Random): Plays discs randomly.
MUTE: Turns off/on the audio.
L/R: During VCD/SVCD playback, repeatedly selects the audio output channel: Mono L, Mono R, Mix Mono, or Stereo.
CLEAR: Deletes numbers entered during programming.
PAUSE: Pauses playback.
PLAY: Starts playing.
STOP: Stops playback once (to hold) or twice (to stop completely). Press PLAY to resume from the stopped point.
RETURN: When PBC is on, returns to the menu for selection (DVD only).
ZOOM: During VCD/SVCD/DVD/AVI playback, magnifies the image (2X, 3X, 4X, Off, 1/4, 1/3, 1/2).
STEP: When playing AVI/DVD, VCD, SVCD discs, advances the picture to the next frame. Press PLAY to resume normal play.
SETUP: Accesses the multi-level setup menu. Use the directional buttons to select options, ENTER to confirm, and SETUP to exit.
VOL +/-: Increases or decreases the volume.
SUBTITLE: During DVD playback, repeatedly selects from up to 32 subtitle languages (disc specific).
ANGLE: During DVD playback, repeatedly selects different camera angles (disc specific).
LANGUAGE: Repeatedly selects from up to 8 audio languages/formats during DVD playback, or up to 4 during SVCD playback.
GOTO: For DVD, selects CHAPTER, TITLE, or TIME. For VCD, selects TRACK, TIME, or DISC TIME. Input numbers to go to the desired item.
PROG (Program): Accesses the program menu for DVD and VCD to program desired songs (DVD programming requires TITLE and MENU).

System Connection: Before connecting the unit to other components, ensure all devices are powered off. Audio/Video cables should be connected according to their color identification and fitted firmly.

Yellow: Video terminal
White: Audio terminal L
Red: Audio terminal R For Component YUV (Y.Pr/Cr, Pb/Cb) output, connect cables according to the jack colors.

OSD Setup Menu: The setup menu allows configuration of various preferences:

General Setup Page:
- TV SYSTEM: NTSC, PAL, AUTO.
- POWER RESUME: On/Off.
- VIDEO: YUV, YPBPA, CVBS.
- TV TYPE: 4:3PS, 4:3LB, 16:9.
- PASSWORD: Allows changing the password. The default factory code is "0000".
- RATING: Sets parental control ratings (1.KID SAFE to 8.ADULT). Input "0000" to confirm.
- DEFAULT: Restores default settings.
Language Setup Page:
- OSD LANGUAGE: English, French, Spanish, Portuguese.
- AUDIO LANG: English, French, Spanish, Portuguese.
- SUBTITLE LANG: English, French, Spanish, Portuguese, Off.
- MENU LANG: English, French, Spanish, Portuguese.
Audio Setup Page:
- AUDIO OUT: SPDIF/OFF, SPDIF/RAW, SPDIF/PCM.
- KEY: Adjusts key settings.
Video Setup Page:
- BRIGHTNESS, CONTRAST, HUE, SATURATION, SHARPNESS: Adjusts video display parameters (values from 0 to 12 or -10 to 10).
Speaker Setup Page:
- DOWNMIX: LT/RT, STEREO.
- FRONT: LARGE, SMALL.
Audio Parameters:
- OP MODE: LINE OUT, FULL, 6/8, 4/8, 2/8, OFF.
- DYNAMIC RANGE: 0 to -12.
- DUAL MONO: STEREO, MONO L, MONO R, MIX MONO.

Maintenance Features

General Safety:

Indoor Use Only: This appliance is not designed for outdoor use.
Moisture Avoidance: Do not use near water or moisture (e.g., wet basements, swimming pools). If moisture condenses inside the player, remove the disc and leave the unit powered on for one or two hours to dry.
Ventilation: Ensure ventilation slots are not blocked or covered. Do not place the product on soft surfaces (bed, sofa, rug) or near heat registers. If installed in a bookcase or rack, ensure proper ventilation.
Power Cord Protection: Protect the power cord from being walked on or pinched.
Cleaning: Clean only with a dry cloth. Do not use thinners, alcohol, chemical solvents, or sprays, as these can permanently damage the disc surface.
Battery Handling: Do not dispose of batteries as normal rubbish; follow government regulations for disposal. Do not expose batteries to excessive heat.

Disc Care:

Handling: Hold discs by their outer edge and/or center spindle hole. Avoid touching the disc surface.
Storage: Store discs vertically in a dry cabinet. Protect from direct sunlight, heat sources, and extreme humidity.
Cleaning: Clean the disc surface with a soft, dry cleaning cloth, wiping gently and radially from the center toward the outer edge.

Troubleshooting: The manual provides a comprehensive troubleshooting guide for common issues:

No Power: Check power cord connection and main power switch.
Does Not Play: Ensure a disc is loaded correctly (label side up), the disc's region code matches the player, the disc type is correct, and the disc is not damaged or dirty. Allow time for moisture condensation to dissipate if applicable.
No Picture: Verify TV power and A/V signal selection. Check system connections and cables for damage. Clean the disc.
Picture Noise/Distorted: Clean the disc. Reset the player's or TV's color system. Connect the player directly to the TV, bypassing other components like a VCR.
Picture Not Full Screen: Select the correct screen format from the player's SETUP MENU or the DVD disc menu.
Malfunction: If the player malfunctions, unplug it for 30 minutes, then power it on to reset.
Cannot SKIP or SEARCH: Some discs are programmed to restrict skipping or searching in certain sections. Single chapter discs may not support skipping.
No Sound or Incomplete Sound Output: Check TV and amplifier power and connections. Ensure the correct audio track is selected via the LANGUAGE button. Verify the MUTE function is not activated on the TV or amplifier. Note that there will be no sound during PAUSE, STEP, SLOW, and SEARCH.
MP3 Disc No Sound or Noisy: If PC program files or other data files are mixed with MP3 files on the same disc, the player might play non-MP3 files with noise. Check if all files on the disc are MP3 files and try skipping files.
Remote Control Does Not Function: Remove obstacles between the remote control and the player. Point the remote control towards the remote sensor. Check battery polarities and replace batteries if necessary.

Laser Safety: This compact disc player is classified as a CLASS 1 LASER PRODUCT. Only qualified service personnel should remove the cover or attempt to service this device due to possible eye injury. Invisible laser radiation is present when open and interlocks are defeated. Avoid direct exposure to the laser beam.

Important Safety Instructions: Read all instructions carefully. This appliance is not intended for use by children or infirm persons without supervision. Children should be prevented from playing with the appliance. Do not block ventilation openings. Do not install near heat sources. Do not defeat the safety purpose of the polarized or grounding plug. Protect the power cord. Use only manufacturer-specified attachments/accessories. Unplug during lightning storms or when unused for long periods. Refer all servicing to qualified personnel. Do not perform any servicing other than that contained in the operating instructions unless qualified. The mains plug is used as a disconnect device and shall remain readily operable.

ProScan PDVD1053D - Page 4
