This document describes the Proscan PDVD6670 DVD player, a versatile home entertainment device designed for playing various disc formats and offering a range of features for an enhanced viewing and listening experience.

Function Description

The Proscan PDVD6670 is primarily a DVD (Digital Versatile Disc) player, supporting the MPEG II format for high-quality video playback. It is capable of delivering an excellent picture with a minimum resolution of 500 lines on screen. Beyond DVDs, the player also supports CD-DA (Compact Disc Digital Audio), CD-MP3, Kodak Picture CD, CD-R, and CD-RW discs, making it a comprehensive media player for your home.

The device features multiple output options for connecting to a television or audio system. These include a composite video output, 2.0 channel audio outputs, component YUV (Y.Cb.Cr) outputs, a coaxial digital signal output, and an HDMI output. The HDMI connection allows for high-definition video and audio transmission, supporting various resolutions such as 480P, 576P, 720P, 1080i, and 1080P (50Hz/60Hz), ensuring compatibility with modern displays.

An integrated USB port provides additional functionality, allowing users to connect USB devices and play media files directly from them. This expands the player's capabilities beyond disc-based media, offering flexibility in content consumption.

The player operates within the worldwide agreed DVD Regional Code System, meaning it will only play discs corresponding to its specific regional code (Region 1 for this player). This is a standard feature for DVD players to manage content distribution.

Usage Features

The PDVD6670 offers a user-friendly interface, primarily controlled via the included remote control. The remote provides comprehensive control over all player functions, including power, disc tray operation (OPEN/CLOSE), playback controls (PLAY/PAUSE, STOP, PREV, NEXT, FWD, REV, SLOW, STEP), and navigation within disc menus.

Disc Playback:

DVD Playback: Supports up to 8 language soundtracks, up to 9 views from different camera angles, and up to 32 language subtitles, provided the DVD disc supports these features. Users can select chapters, titles, or specific times using the GOTO function and numeric keys. The ANGLE button allows switching between different camera angles if available on the disc. The LANGUAGE button enables selection of audio languages, and SUBTITLE allows choosing subtitle languages.
VCD/SVCD Playback: Features Playback Control (PBC) for navigating VCD/SVCD menus. Users can also select tracks directly using the 0-10 numeric keys when PBC is off. The R/L button allows selection of audio output channels (Left, Right, Mix, Stereo).
CD/MP3 Playback: Supports playing audio tracks from CDs and MP3 files. The REPEAT function allows repeating a single track, all tracks, or a specific section (A-B repeat). The RAN (random play) function shuffles tracks for varied listening.
USB Playback: When a USB device is connected, the player can read and play media files stored on it. The USB button on the remote allows switching the input source between DISC and USB.

Playback Controls:

SLOW Motion: Allows playback at reduced speeds (1/2, 1/4, 1/8, 1/16 normal speed) for detailed viewing.
FWD/REV: Fast forward and reverse playback at multiple speeds (2, 4, 8, 16, 32 times normal speed).
ZOOM: Magnifies the image during playback (2X, 3X, 4X) and also allows reduction (1/2, 1/3, 1/4).
A-B Repeat: Enables repeating a specific section of a track or chapter by setting start (A) and end (B) points.
OSD (On-Screen Display): Displays current time counter position during playback.
PROG (Program Play): Allows users to program a sequence of desired songs or chapters from DVDs and VCDs.
RESUME: The player can resume playback from the point where it was stopped, provided it was not stopped completely (by pressing STOP twice).

System Setup: The player features a comprehensive OSD SETUP menu, accessible via the SETUP button on the remote. This multi-level menu allows users to customize various settings:

General Settings: TV Display (aspect ratio), Angle Mark, OSD Language, Captions, Screen Saver, HDCD, Last Memory.
Audio Settings: Speaker Setup, SPDIF Setup (Off, RAW, PCM).
Video Settings: Component output type (CVBS, YUV, YPbPr), HD Resolution (480I, 576I, 720P, 1080I, 1080P), Quality (High, Medium, Low), HDMI Setup (On/Off).
Preference Settings: TV Type (PAL, AUTO, NTSC), Audio, Subtitle, Disc Menu, Parental Control (with password protection and rating selection), and Password management. The default password is "8888".

Remote Control Operation: The remote control uses an infrared beam and requires direct aiming at the player's infrared sensor. Obstacles between the remote and the sensor, or strong artificial light/direct sunlight, can interfere with signal reception. The remote requires two AAA batteries, which should be inserted with correct polarities.

Maintenance Features

Disc Care: Proper handling and maintenance of discs are crucial for optimal performance and longevity.

Handling: Always hold discs by their outer edge or center spindle hole. Avoid touching the disc surface to prevent fingerprints and smudges.
Storage: Store discs vertically in a dry cabinet, away from direct sunlight, heat sources (like heating devices or exhaust), and extreme humidity.
Cleaning: Clean disc surfaces with a soft, dry cleaning cloth. Wipe gently and radially from the center towards the outer edge.
Avoid Chemicals: Never use thinners, alcohol, chemical solvents, or sprays for cleaning, as these can permanently damage the disc surface.

General Device Maintenance:

Ventilation: The player has ventilation slots and openings to prevent overheating. Ensure these are not blocked or covered by placing the unit on soft surfaces (bed, sofa, rug) or in enclosed spaces (bookcase, rack) without proper ventilation.
Cleaning: Clean the unit with a dry cloth only.
Power Cord: Protect the power cord from being walked on or pinched, especially at the plugs and where it exits the apparatus.
Water Exposure: Do not use the apparatus near water or moisture, such as in wet basements, near swimming pools, or in bathrooms.
Heat Sources: Do not install the unit near radiators, heat registers, stoves, or other heat-producing apparatus.
Battery Replacement: When replacing remote control batteries, replace both batteries simultaneously. Do not mix new and used batteries. Remove batteries if the unit will not be used for a prolonged period.

Troubleshooting and Service: The manual provides a comprehensive troubleshooting guide for common issues such as no power, disc not playing, no picture, picture noise/distortion, picture not full screen, malfunction, inability to skip/search, incomplete sound output, noisy MP3 discs, and remote control malfunction.

Power Issues: Check power cord connection and main power switch.
Disc Issues: Ensure disc is loaded correctly (label side up), is the correct region code, is not damaged or dirty, and is the correct type for the player. Allow the unit to power on for one or two hours if moisture condensation is suspected.
Picture/Sound Issues: Verify TV power and A/V signal selection, check system connections and cables, clean the disc, reset the player's color system, and ensure the TV is connected directly to the player.
Malfunction: If the player malfunctions, unplug it for 30 minutes, then power it on to reset.
Remote Control: Remove obstacles, point directly at the sensor, check battery polarities, and replace batteries if necessary.

Safety Information: The device is a Class II double-insulated electrical appliance, designed not to require a safety connection to electrical earth. It contains a laser and should not be opened by unauthorized personnel due to the risk of invisible laser radiation. Servicing should only be performed by qualified service personnel. The mains plug serves as the disconnect device and should remain readily operable. Batteries should not be exposed to excessive heat. The apparatus should not be exposed to dripping or splashing liquids, and no naked flame sources should be placed on it. Environmental aspects of battery disposal should be considered.

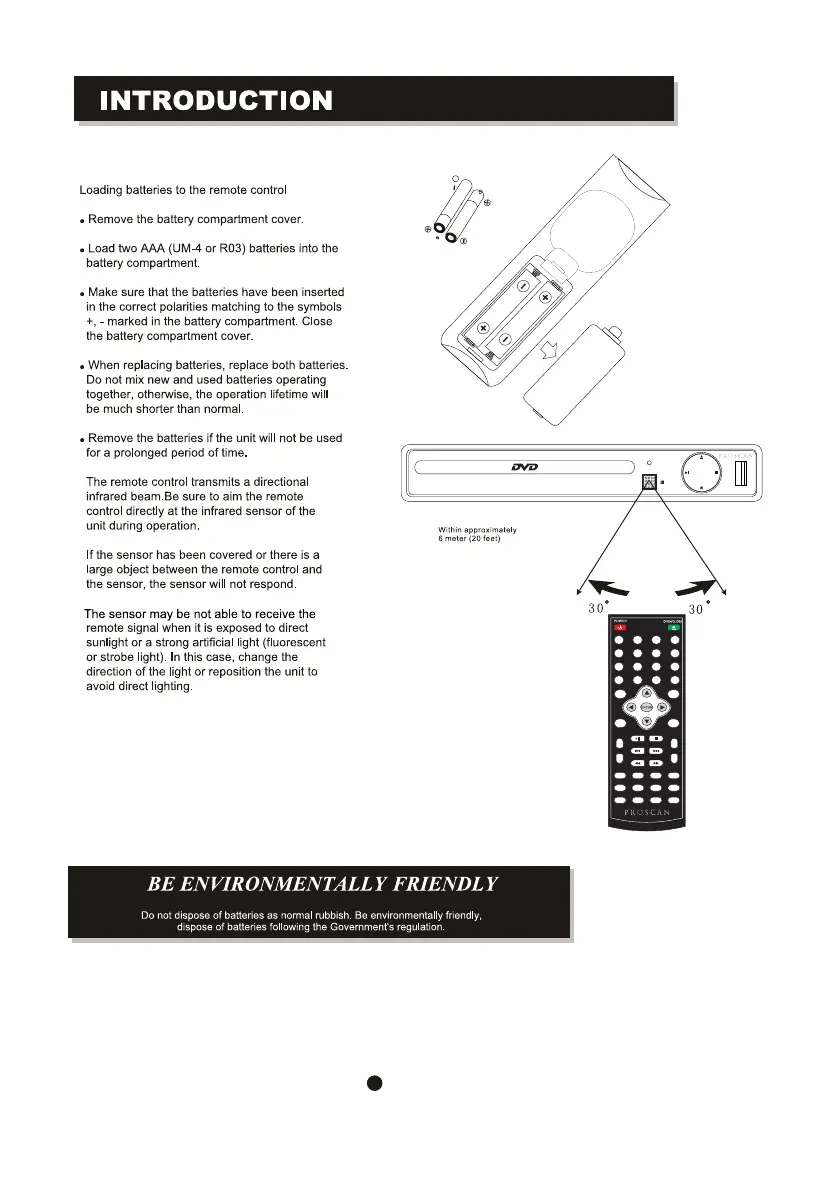

ProScan PDVD6670 - INTRODUCTION; Loading batteries to the remote control
