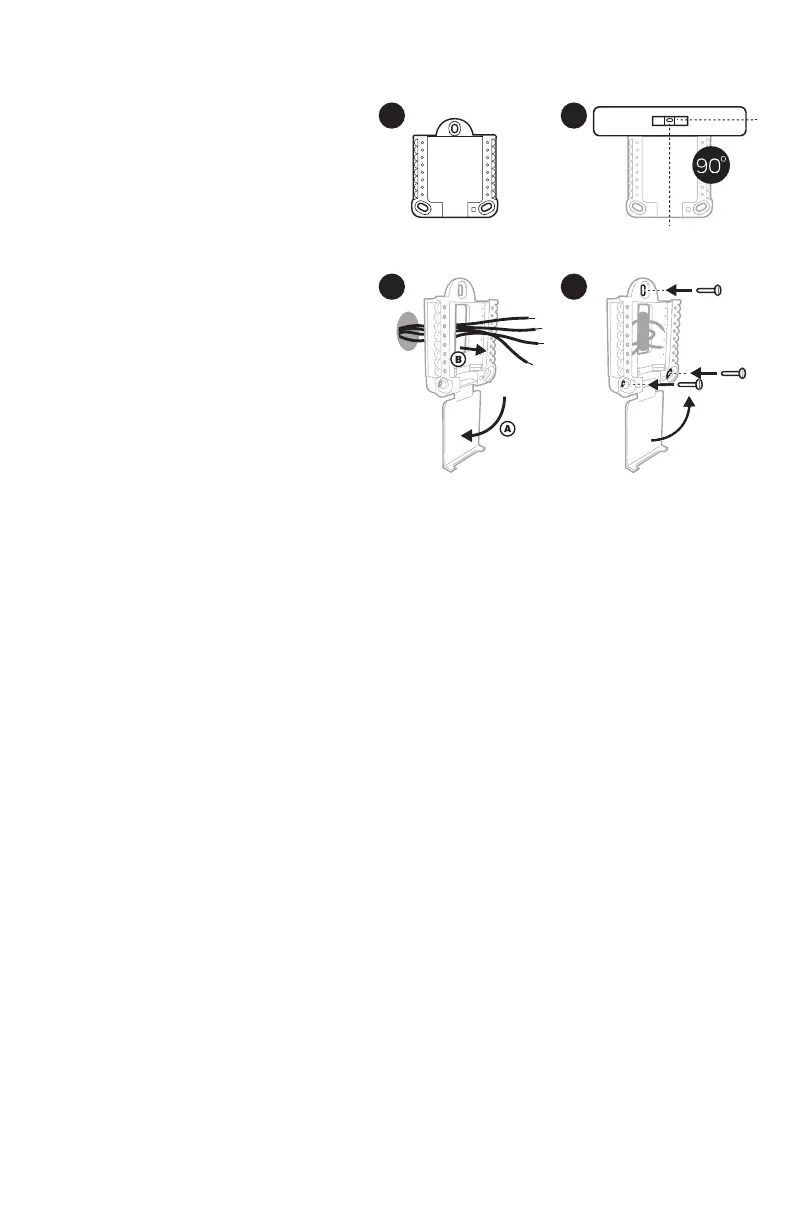

Base plate mounting system installation
Use 3x supplied
screws (#6 1-1/2)
1. Before starting, turn the power
off at the breaker box or switch.
Open package to find the base
plate. See Figure 1.
2. Position the base plate on
the wall. Level and mark hole
positions. See Figure 2.
Drill holes at marked positions,
and
then lightly tap
supplied
w
all anchors into the wall
using
a hammer
.
‒ Drill 3/16” holes.
3. Pull the door open and insert
the wires through wiring hole of
the base plate. See Figure 3.
4. Place the base plate over the
wall anchors. Insert and tighten
the supplied mounting screws.
Do not overtighten. Tighten until
the base plate no longer moves.
Close the door. See Figure 4.
M38850
1
3
2
4
