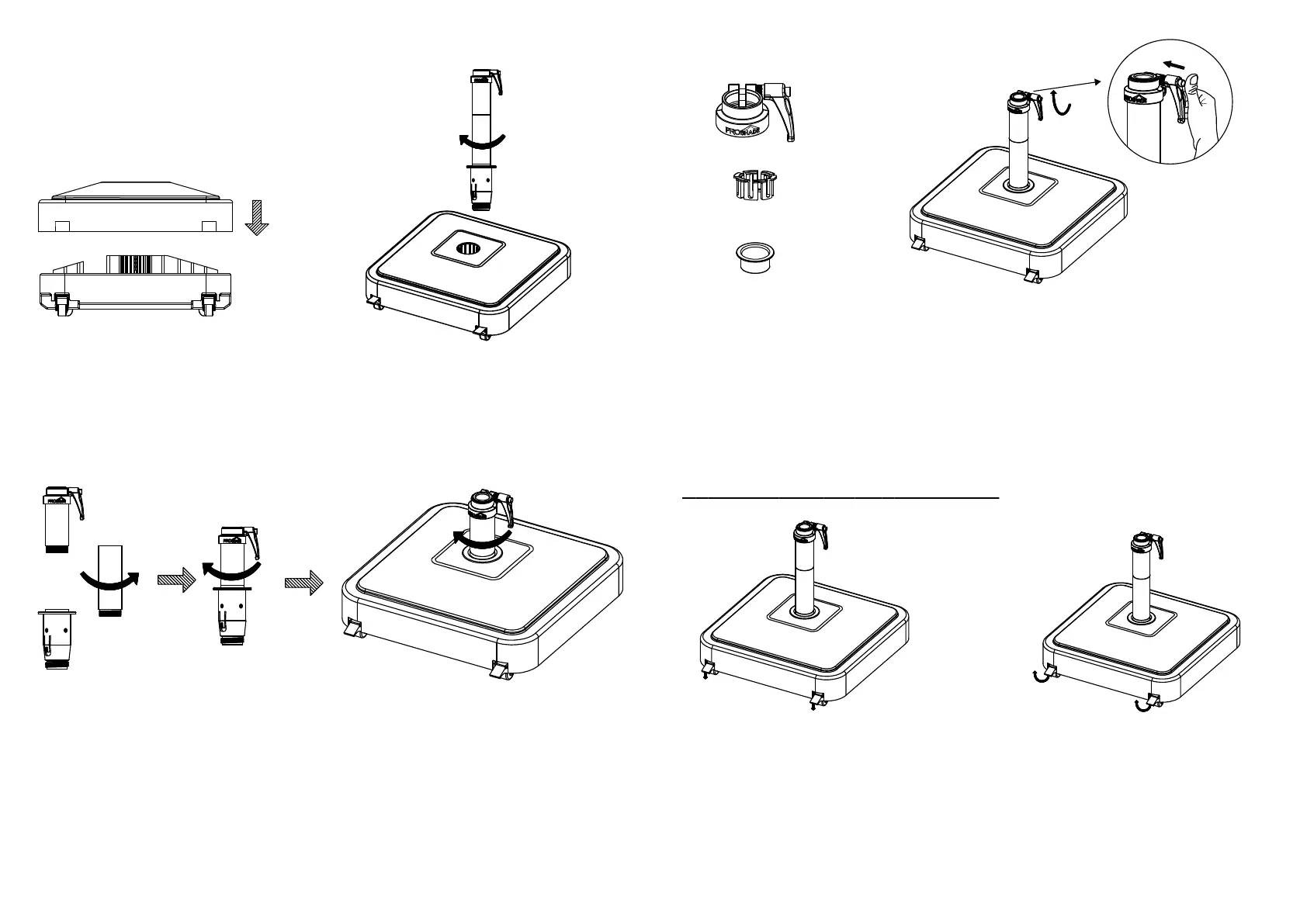

Step 5 - Stem Height Option.
To fit under a patio table, remove the middle section of the stem, connect the top and
bottom sections, then install the stem into the base. The stem may loosen during the
time. Double check periodically to make sure the stem sections are connected properly.
Warning: The shorter stem option only works with patio tables.
Push the button and pull the handle out at the same time and you can rotate the
handle to align with the stem without loosening the stem from the pole.
MOVE WITH CAUTION:
• Base is suitable for 3.36M / 11ft Market Umbrella, or other umbrellas under
18kgs / 39.68 lbs
• Make sure umbrella is in closed position and free of objects before moving base.
Step 3 - Install the Base Cover.
1. To lock – press down the pedal
on the locking wheels.
2. To unlock - Lift up the pedal
on the locking wheels.
LOCKING WHEELS INSTRUCTIONS
Step 4 - Install the Stem.
Insert the stem into the base cover and
twist clockwise until it stops.
Locking device
Reducer B
Reducer A
Push
Step 6 - Select Reducer.
The unit comes with two reducers that fit a 1.38 inch, 1.5 inch or 1.9 inch diameter
umbrella pole.
After choosing the correct reducer then insert umbrella pole in stem, turn the handle
of locking device clockwise to secure the umbrella. The handle is equipped with a
button on the end.
