ProTeam ProForce 1200XP - Liste des Pièces

10

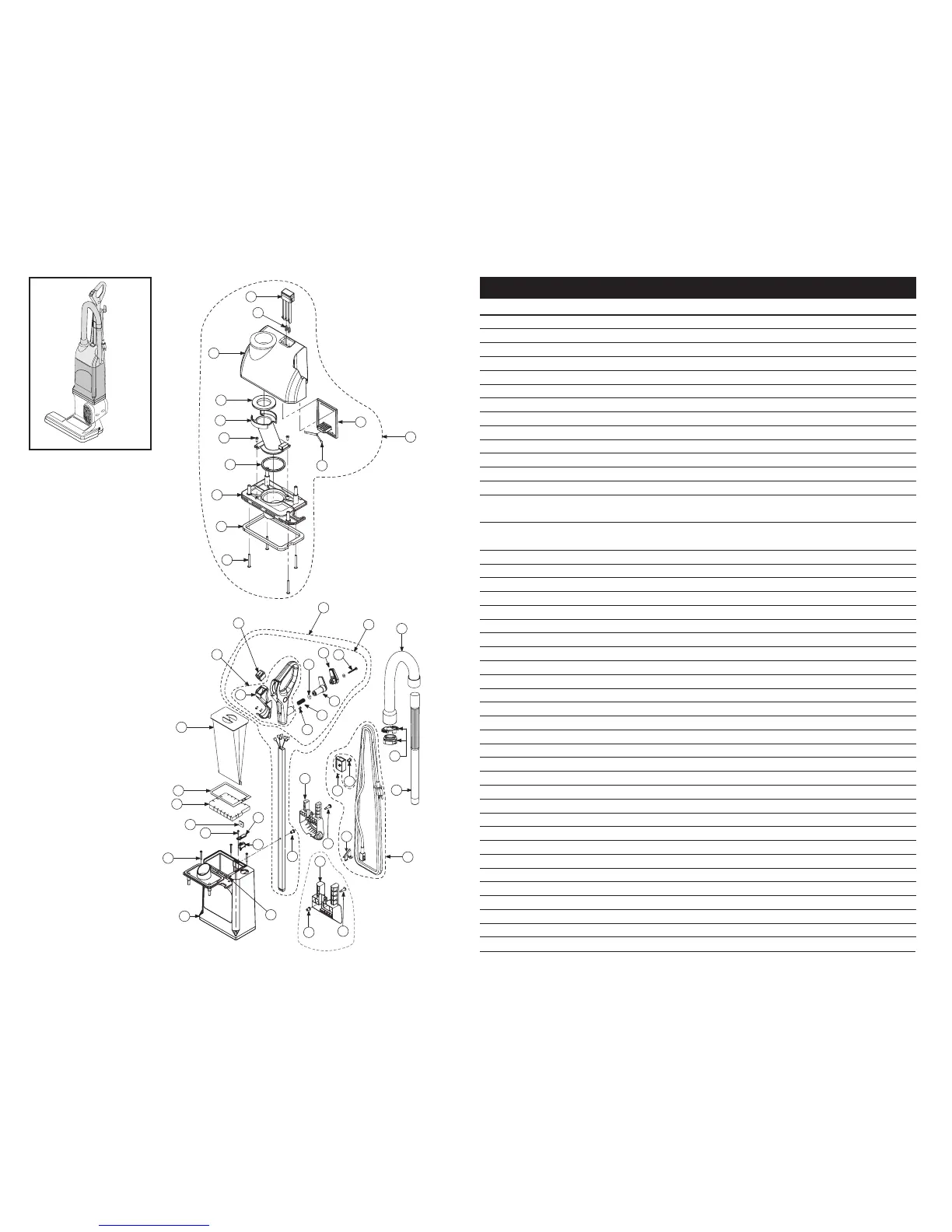

PROFORCE 1200XP/1500XP HEPA ASSEMBLY
9
2
13
1
3
8
4
5
10
11
12
6
7
36
23
41
17
18
20
27
33
22
32
25
24
31
14
19
21
38
35
15
40
29
37
39
16
30
43
44
28
34
26
28
34
26
1500XP
42
No. Product Name
1 104234 Cover, Bag Housing, Grey
2 104232 Latch, Release, Bag Cover
3 104233 Spring, Release Button, F/Bag Cover Latch
4 104235 Seal, Transition Duct/Bag Cover, Upper
5 104236 Duct, Transition, Bag Cover
6 104238 Seal, Transition Duct/Bag Cover Nozzle Plate, Lower
7 104239 Plate, Bag Cover Nozzle
8 104242 Spring, Bag Cover Latch
9 104243 Plate, Bag Cover Latch
10 104505 Screw, Phillips, 4mm x 9.5mm
11 104241 Gasket, Bag Cover
12 104493 Screw, Phillips, 4.2mm x 35mm
13 105486 Filter Cover Kit w/Riveted Hinge & 6 Rivets (includes: #1–12)
14 107260 Bag Housing Assembly, Grey w/Riveted Hinge & Decal Includes Bag Cover
Nozzle Plate (PF 1500XP HEPA)
107285 Bag Housing Assembly, Grey w/Riveted Hinge & Decal Includes Bag Cover
Nozzle Plate (PF 1200XP HEPA)
15 104491 Rivet F/Bag Housing Assembly
16 104284 Cord, Power, w/Strain Relief, 50' Yellow (includes: #30, 44)
17 103483 Intercept Micro Filter
18 104738 Seal, Gasket, Bag Housing
19 104283 Switch, Filter, Lock-Out
20 104281 Filter, Double Layer Motor Intake
21 104282 Cover, Switch, Filter Lock-out
22 104268 Bracket, Cord Wrap
23 104269 Spring, Compression, Cord Wrap Bracket
24 104270 Washer, Compression Spring, Cord Wrap Bracket
25 105147 Switch, Rocker, On/Off
26 104264 Bushing, Handle Tube
27 104259 Plate, Handle Nut
28 107256 Handle, Carry w/Tool Caddy
29 104294 Wand, F/XP
30 105091 Clasp, Strain Relief Kit w/Fastener (includes: 43)
31 104271 Screw, Cord Wrap, M4 x 45mm, Phillips Round Head
32 104509 Screw, Phillips, 4mm x 16mm x .07 Pitch, F/Handle Assembly
33 105075 Screw, Phillips, 2.9mm x 13mm, F/Switch Cover
34 104266 Screw, Handle Assembly
35 104493 Screw, Phillips, 4.2mm x 35mm
36 106618 Handle, Tube Assembly Complete (includes: #26, 38)
37 104961 Hose, Assembly w/Cuffs (includes: #39)
38 106617 Handle Kit (includes: #22, 23, 24, 25, 31, 32, 40, 41)
39 105573 Quick Release Hose Cuff
40 107093 Impact Bumper Kit
41 106619 Handle/Bezel Assembly (PF 1500XP) (includes: #42)
42 106739 Handle Bezel (PF 1500XP)
43 105320 Fastener
44 107203 Cord Retention Clip
