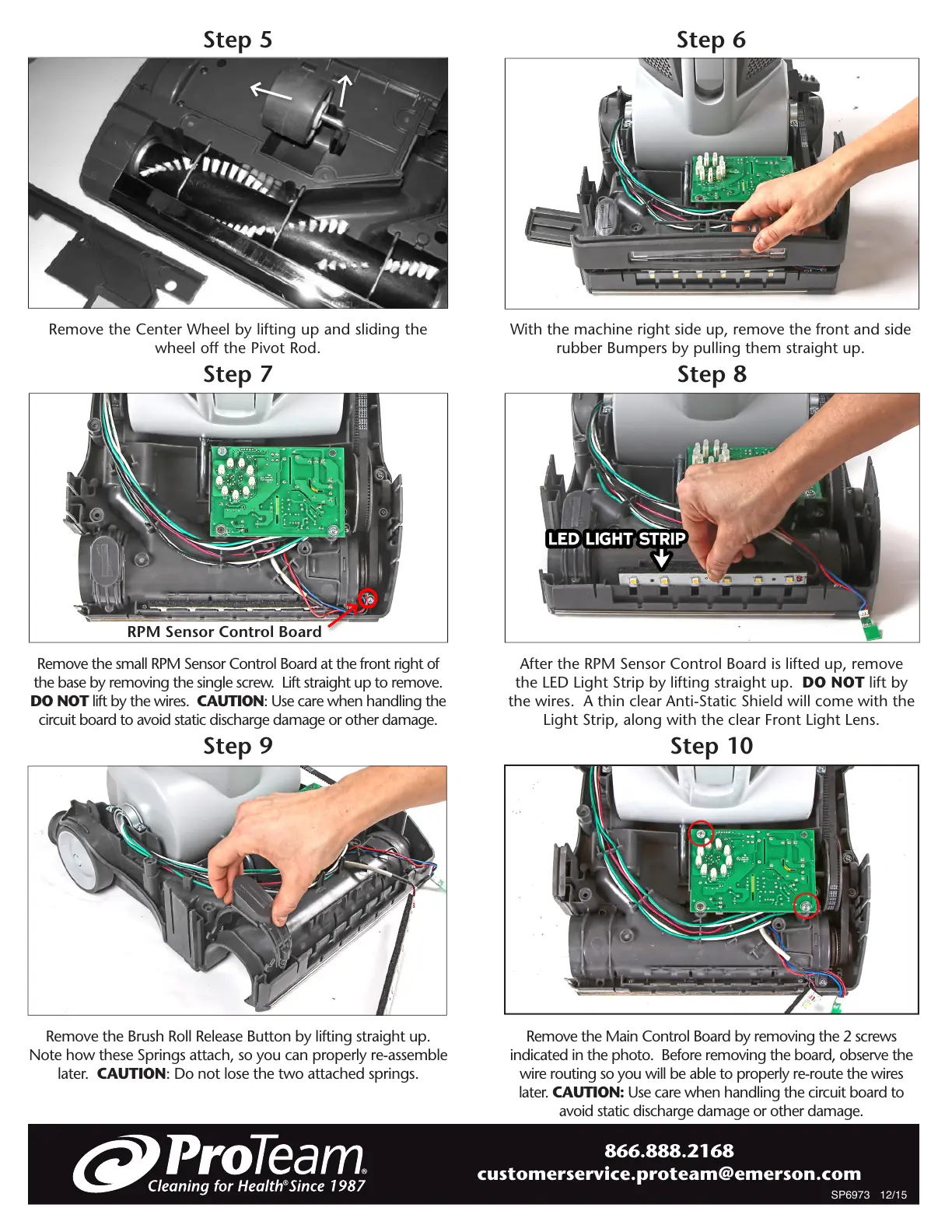

After the RPM Sensor Control Board is lifted up, remove
the LED Light Strip by lifting straight up. DO NOT lift by
the wires. A thin clear Anti-Static Shield will come with the
Light Strip, along with the clear Front Light Lens.
With the machine right side up, remove the front and side
rubber Bumpers by pulling them straight up.
Remove the Center Wheel by lifting up and sliding the
wheel off the Pivot Rod.
Step 5
Step 7
Step 6
Step 8
Remove the small RPM Sensor Control Board at the front right of
the base by removing the single screw. Lift straight up to remove.
DO NOT lift by the wires. CAUTION: Use care when handling the
circuit board to avoid static discharge damage or other damage.
866.888.2168
customerservice.proteam@emerson.com
SP6973 12/15
Step 9
Remove the Brush Roll Release Button by lifting straight up.
Note how these Springs attach, so you can properly re-assemble
later. CAUTION: Do not lose the two attached springs.
Remove the Main Control Board by removing the 2 screws
indicated in the photo. Before removing the board, observe the
wire routing so you will be able to properly re-route the wires
later. CAUTION: Use care when handling the circuit board to
avoid static discharge damage or other damage.
Step 10
RPM Sensor Control Board
