NOTE!
European operating approval has been
obtained for this bicycle carrier. This is
supplied with the carrier, and must be carried
when using the carrier.
WARNING!
Personal injury or material damage due to
changed vehicle driving characteristics.
Driving with the bicycle carrier fitted will affect
the driving characteristics of your vehicle.
• Adjust your speed to the new driving
characteristics.
• Never exceed a speed of 120 km/h.
• Avoid sudden and jerky steering
movements.
• Remember that your vehicle is longer than
usual.
Safety instructions
Follow the fitting instructions carefully. Failure to follow the
instructions can lead to personal injuries and material
damage.
If you are not sure about correct fitting, ask your dealer or
the manufacturer for further information.
Neither the manufacturer nor dealer are liable for
damages which are due to improper use or fitting.
Check the bicycle carrier and the load regularly: you are
required to do so and may be held liable in case of
damage.
WARNING!
Personal injury possible due to breakage of
the trailer coupling.
The coupling could break if the bicycle carrier
is fitted to a coupling made of too soft a
material.
• Fit the bicycle carrier only to a coupling
made of steel St52, grey cast iron GG52 or
higher quality.
• Never fit the bicycle carrier to a coupling
made of aluminium, other light metals or
plastic.
Scope of delivery
Technical data
Carrier:..............................................................DIAMANT
Article no.:...............................................................91739
Material:....................................................................Steel
Weight:.....................................................................18 kg
Carrying capacity, max.:...........................................60 kg
The max. carrying capacity of the bicycle carrier and the
permissible bearing load of the trailer coupling must not be
exceeded.
The bicycle carrier and load must not exceed the
permissible overall weight, or the permissible axle load of
the vehicle.
Fit the bicycle carrier only to trailer couplings with the
following properties:
Material:...............min. steel St52 or grey cast iron GG52
D-value:............................................................... ≥ 7,6 kN
Note the instructions of the coupling manufacturer.
Scope of delivery / Technical data / Safety instructions
Coupling requirements

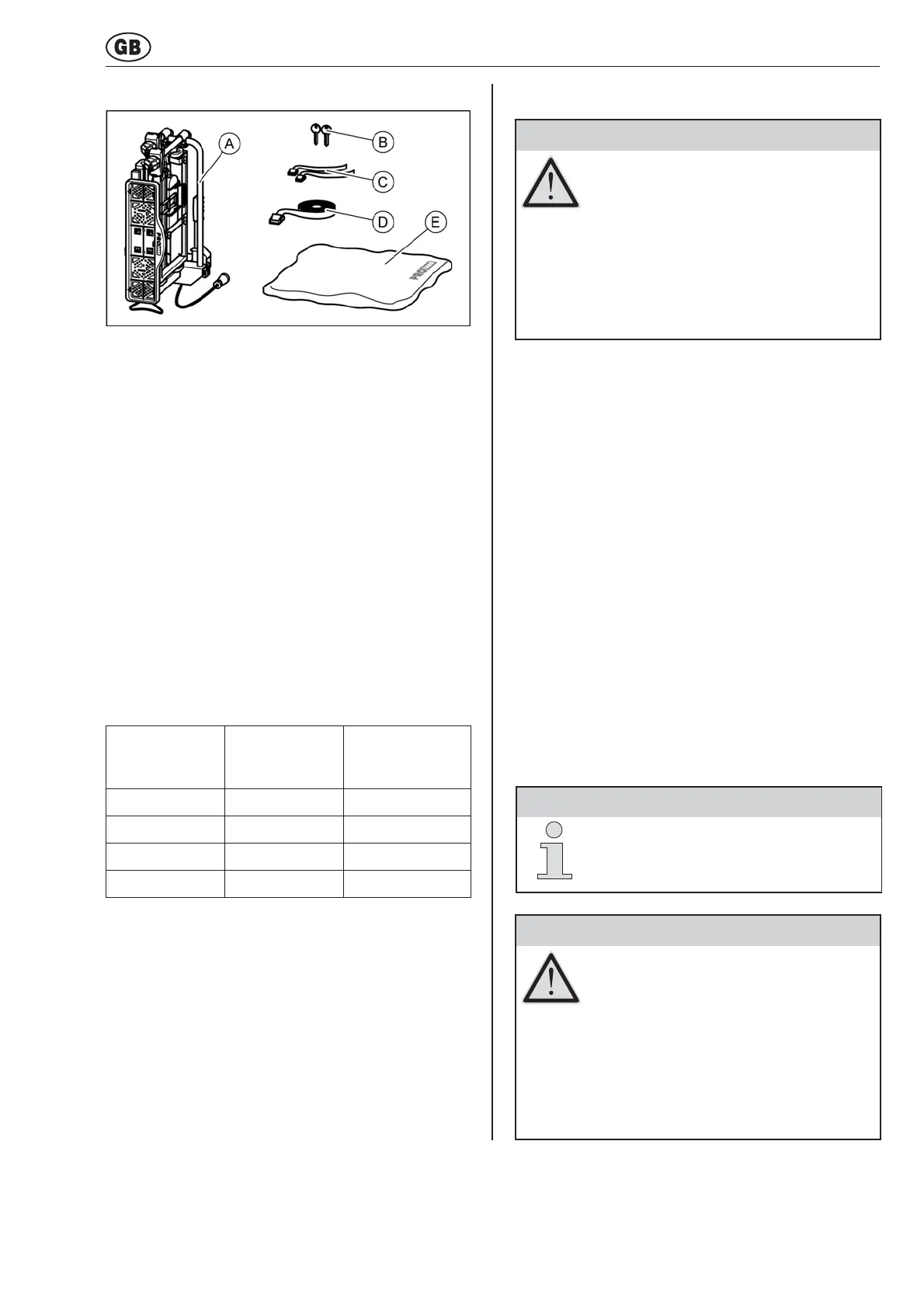

A = Bicycle carrier
B = 2 keys
C = 2 safety straps for front wheels
D = Safety strap for bicycle frame
E = Transport bag
Max. carrying
capacity on
bicycle carrier
Max. bearing
load Trailer
coupling
32 kg50 kg
max. 60 kg !90 kg
42 kg60 kg
57 kg75 kg
18 kg
18 kg
18 kg
18 kg
Weight Bicycle
carrier
